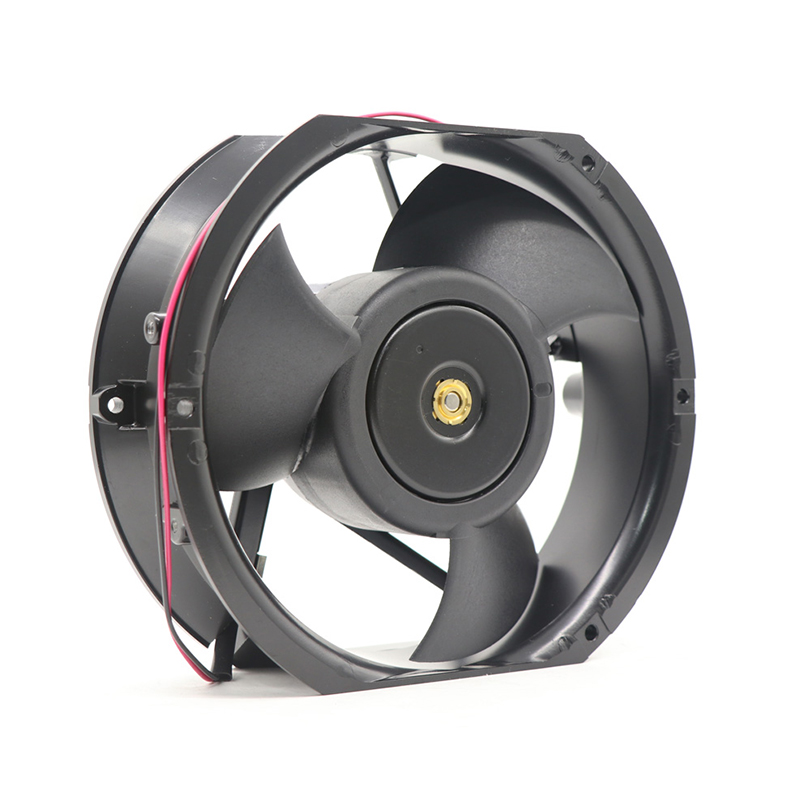

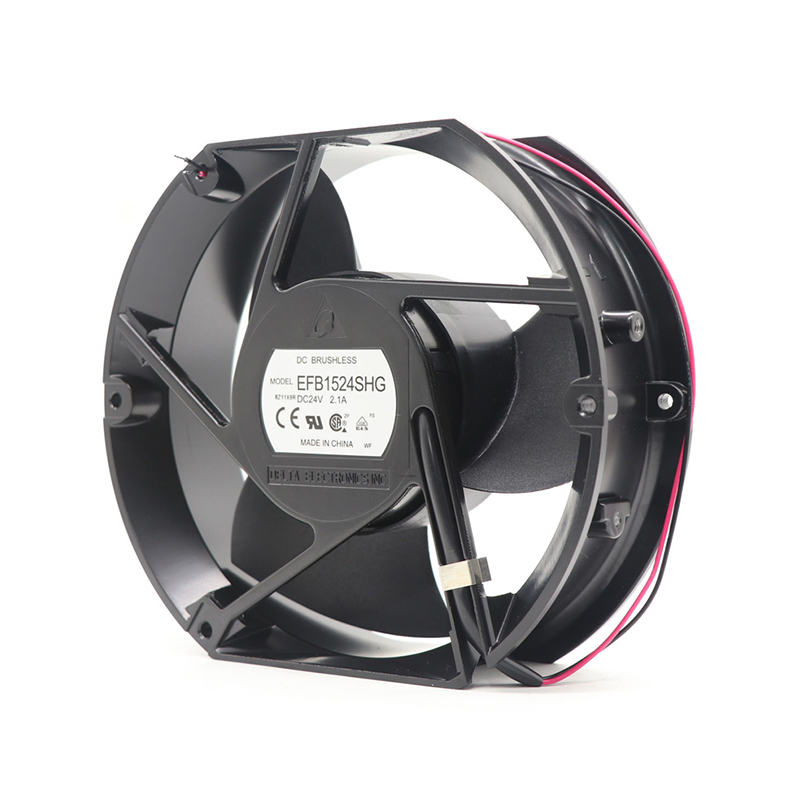

EFB1524SHG Delta Compact Fan

Brand :: Delta

Model:: EFB1524SHG | Delta Electronics 24VDC 28.08W Axial Fan for Industrial Equipment Cooling

Type:: Compact Fans

Industry:: Industrial Cooling

Description:: For industrial equipment ventilation, EFB1524SHG offers a 172 x 150 x 51 mm axial format. The 24VDC fan is listed at 4300 rpm, with 553 m3/h maximum airflow and a 28.08 W electrical input rating.

Datasheet:: EFB1524SHG | Delta Electronics 24VDC 28.08W Axial Fan for Industrial Equipment Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	17215051
Max.Air Flow(m³/h)	553
Input Power(W)	28.08
Speed(rpm)	4300
Noise(db)	63

Product Features

DC Equipment Cooling

Equipment manufacturers evaluating energy equipment can consider Delta EFB1524SHG, a brushless DC axial fan. The fan supports heat removal by keeping air moving through the selected cooling path.

Its listed 172 x 150 x 51 mm format defines the space needed for installation, helping designers reserve room for adjacent components and cable routing. The series uses ball-bearing motor support for rotational durability, giving OEMs a service-life-oriented construction for equipment cooling. Selecting the operating point against real pressure loss helps avoid oversizing and keeps thermal design focused on useful air delivery.

Equipment manufacturers and maintenance teams should match the complete part number and installation limits for reliable operation across the service cycle.

Application Industry

Power Supplies

In power-supply equipment, air movement helps handle electrical conversion losses. Delta EFB1524SHG supports cooling around power-conversion components, contributing to dependable power delivery.

Industrial Controls

Delta EFB1524SHG supports cooling in industrial control equipment. Air circulation around controllers and electronic modules helps manage heat accumulated within enclosures, supporting stable automation operation.

Energy Equipment

In energy equipment, Delta EFB1524SHG helps remove heat from electrical conversion assemblies. The cooling solution addresses recurring thermal loads to support reliable equipment operation.

Electronics Cooling

For electronic equipment, Delta EFB1524SHG provides equipment cooling around heat-generating circuit assemblies. Managing localized heat buildup helps maintain thermal stability. This supports heat removal.

Frequently Asked Questions

What maximum airflow is listed for EFB1524SHG?

The workbook lists a maximum airflow of 553 m3/h. This is not the airflow at every system resistance; use the applicable pressure-flow curve to identify the installed operating point.

Why choose EFB1524SHG over a general-purpose fan?

EFB1524SHG provides a defined axial fan format with a listed 4300 rpm speed in a 172 x 150 x 51 mm size. Compare its fan curve with the actual duty point rather than assuming a universal advantage.

What power figure is listed for EFB1524SHG?

28.08 W is shown in the filter data. Check whether the corresponding datasheet defines it as rated, free-air or maximum-load input before sizing the power source.

What equipment is EFB1524SHG intended to cool?

EFB1524SHG is listed for Industrial Equipment cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

What operating speed is listed for EFB1524SHG?

4300 rpm is listed in the workbook. This value alone does not establish adjustable-speed capability; confirm the control input and permitted operating range in the exact datasheet.
