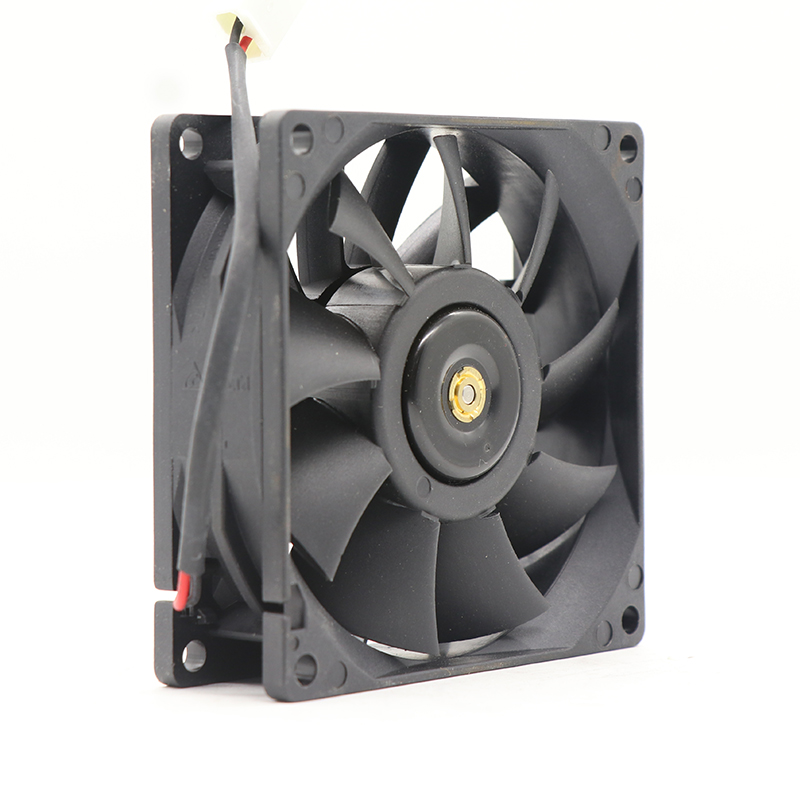

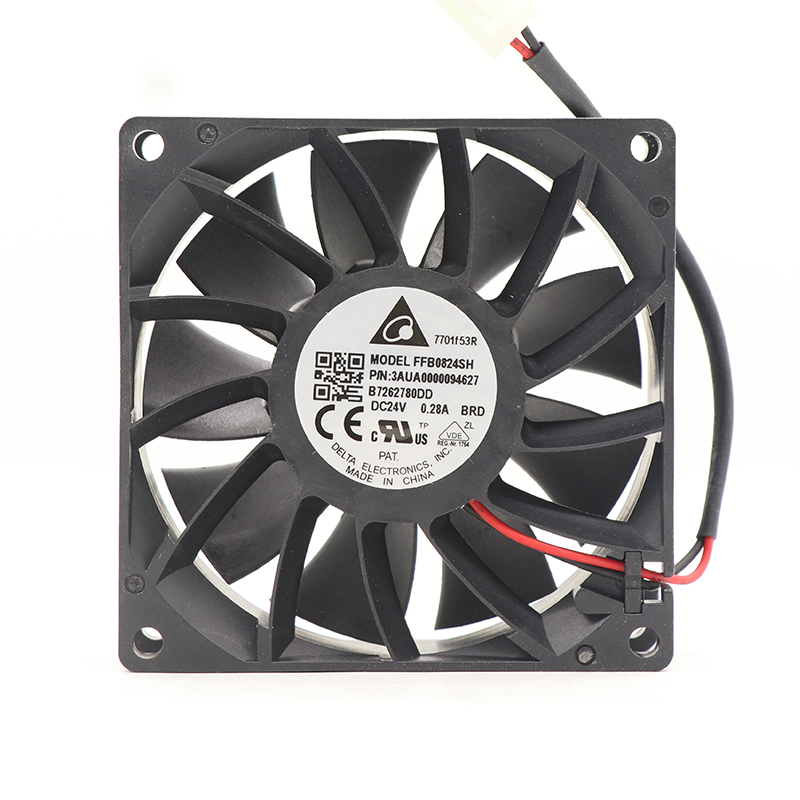

FFB0824SH-BRD Delta Compact Fan

Brand :: Delta

Model:: FFB0824SH-BRD | Delta Electronics 24VDC 5.76W Axial Fan for Server and Telecom Cooling

Type:: Compact Fans

Industry:: Data Center Cooling

Description:: A listed 97.6 Pa maximum static pressure characterizes FFB0824SH-BRD for telecom and server enclosures. This 24VDC axial fan uses an 80 x 80 x 25 mm frame, with 4500 rpm operation and 5.76 W input.

Product Features

Rated Voltage(V)	24
Size(mm)	808025
Max.Air Flow(m³/h)	113.9
Max.Pressure(Pa)	97.6
Input Power(W)	5.76
Speed(rpm)	4500
Noise(db)	48.6

Product Features

DC Equipment Cooling

The Delta FFB0824SH-BRD is a brushless DC axial fan for server and storage equipment. It provides a defined airflow path where equipment layout leaves limited room for passive heat removal.

Its listed 80 x 80 x 25 mm format defines the space needed for installation, helping designers reserve room for adjacent components and cable routing. Its high-performance fan family emphasizes air delivery and pressure capability, helping address the resistance of densely populated equipment. The mounting arrangement and duct transitions should preserve the intended air path so cooling is not lost to leakage or recirculation.

OEM purchasers can specify this model after checking the thermal duty, supply and mechanical fit, keeping reliable equipment operation central to selection.

Application Industry

Server & Storage

Delta FFB0824SH-BRD serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

UPS Equipment

In uninterruptible power systems, air movement helps handle heat produced during power conversion. Delta FFB0824SH-BRD supports cooling around power electronics, contributing to stable backup-power operation.

Power Supplies

Delta FFB0824SH-BRD supports cooling in power-supply equipment. Air circulation around power-conversion components helps manage electrical conversion losses, supporting dependable power delivery.

Telecommunications

In telecommunications equipment, Delta FFB0824SH-BRD helps remove heat from densely arranged electronic assemblies. The cooling solution addresses continuous communication duty to support service continuity.

Frequently Asked Questions

Can FFB0824SH-BRD reduce total ownership cost?

The provided parameters do not prove a cost saving. Compare purchase price, power at the real operating point, service access, expected life and downtime risk for the complete cooling system.

What should be checked when installing FFB0824SH-BRD?

Allow for the listed 80 x 80 x 25 mm size and follow the exact mounting drawing. Keep inlet and outlet clear, use the specified fasteners and verify wiring before energizing the fan.

What equipment is FFB0824SH-BRD intended to cool?

FFB0824SH-BRD is listed for Server and Telecom cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

Why choose FFB0824SH-BRD over a general-purpose fan?

FFB0824SH-BRD provides a defined axial fan format with a listed 4500 rpm speed in a 80 x 80 x 25 mm size. Compare its fan curve with the actual duty point rather than assuming a universal advantage.

Does FFB0824SH-BRD support speed control?

The filter data does not confirm a control interface. Check the exact-model datasheet and wiring for PWM, analog control, FG/RD feedback or fixed-speed operation before connection.

What power figure is listed for FFB0824SH-BRD?

5.76 W is shown in the filter data. Check whether the corresponding datasheet defines it as rated, free-air or maximum-load input before sizing the power source.

Related Products

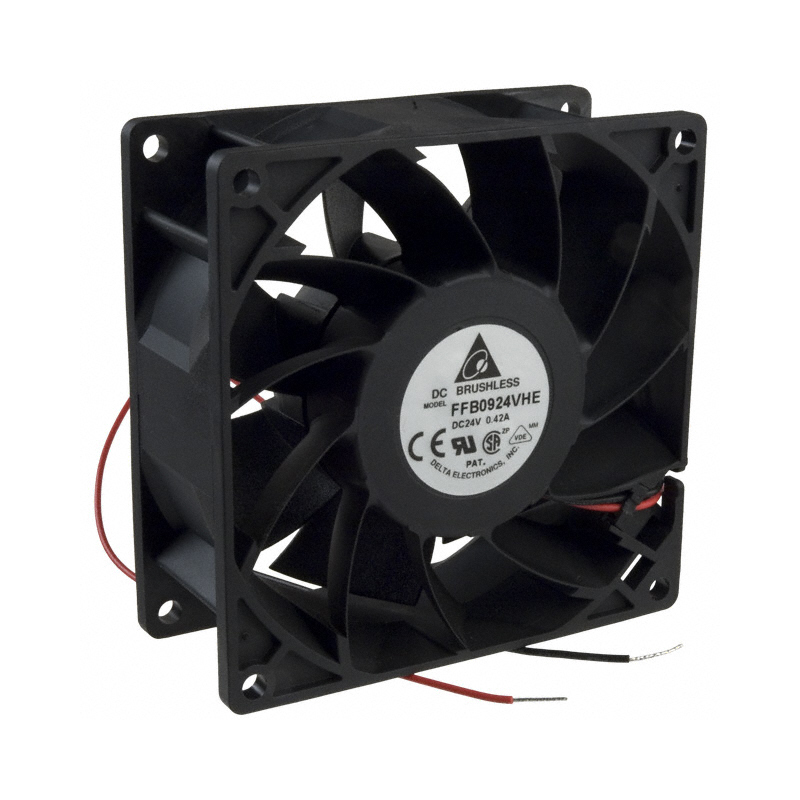

FFB0924VHE | Delta Electronics 24VDC 6.72W Axial Fan for Server and Telecommunications Cooling

FFB0924VHE provides 24VDC axial fan cooling for servers and telecom equipment in a 92 x 92 x 38 mm format. A listed 3800 rpm speed accompanies 145.2 m3/h maximum airflow and a 6.72 W electrical input.

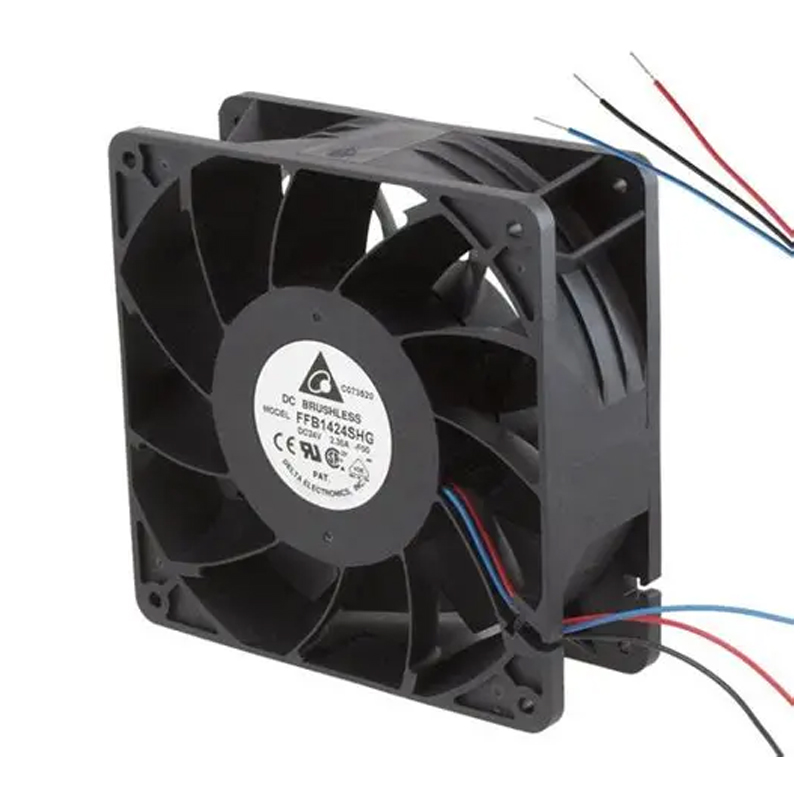

FFB1424SHG | Delta Electronics 24VDC 36W Axial Fan for Server and Telecommunications Cooling

The FFB1424SHG offers a 139.7 x 139.7 x 50.8 mm axial fan assembly for server and telecom cooling. Rated for 24VDC, it lists 464 m3/h maximum airflow and 3600 rpm operation, with 36 W input power specified.

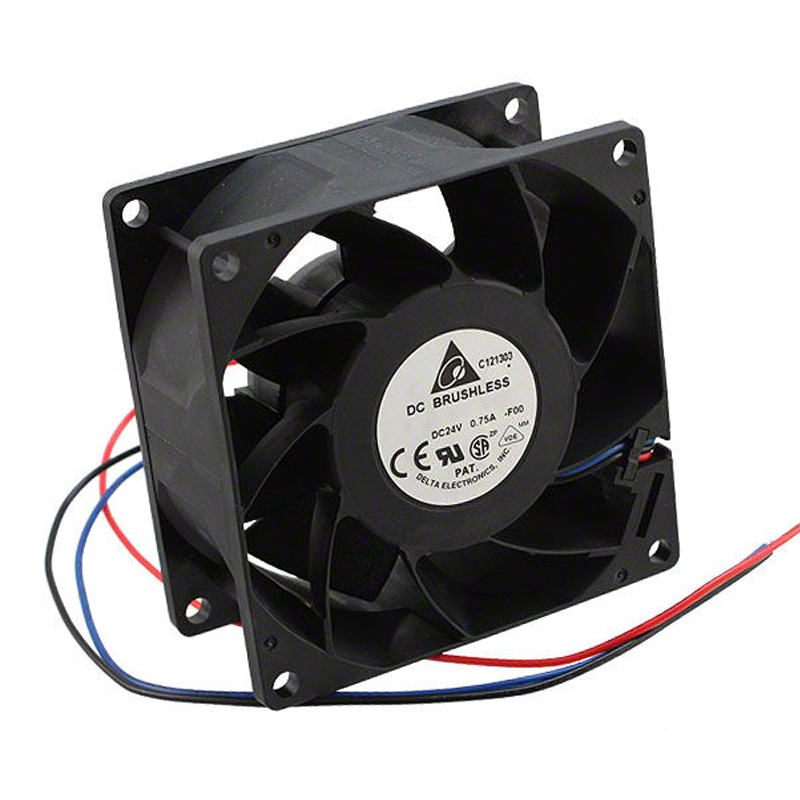

FFB0824EHE-F00 | Delta Electronics 24VDC 12W Axial Fan for Server and Telecom Cooling

FFB0824EHE-F00 is a 24VDC axial fan for telecom and server enclosures with an 80 x 80 x 38 mm body. Its listed 202.31 Pa maximum static pressure and 5700 rpm speed define the specified airflow profile.

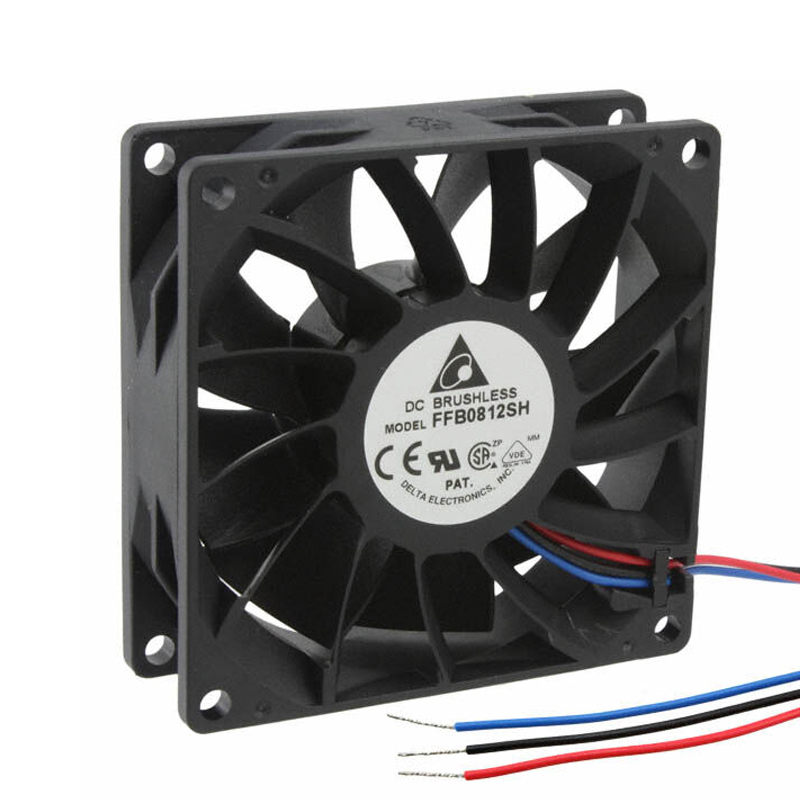

FFB0812SH-F00 | Delta Electronics 12VDC 6W Axial Fan for Server and Telecommunications Cooling

FFB0812SH-F00 is a 12VDC axial fan for telecom equipment requiring an 80 mm footprint. The 25.4 mm profile is shallower than the 38 mm EHE format, while this model lists a 4500 rpm speed and 6 W electrical load.

FFB0624SHE | Delta Electronics 24VDC 6.48W Axial Fan for Server and Telecommunications Cooling

FFB0624SHE pairs a 60 x 60 x 38 mm axial fan frame with a 7000 rpm rating for server and telecom cooling. Operating on 24VDC, it lists 190.7 Pa maximum static pressure and a 6.48 W electrical input.

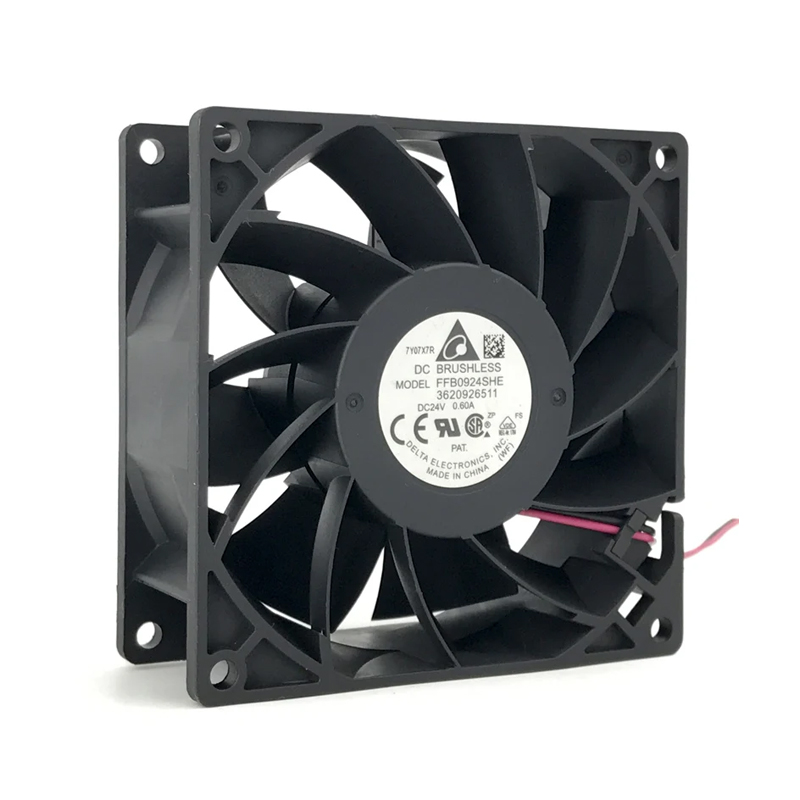

FFB0924SHE | Delta Electronics 24VDC 9.6W Axial Fan for Server and Telecommunications Cooling
