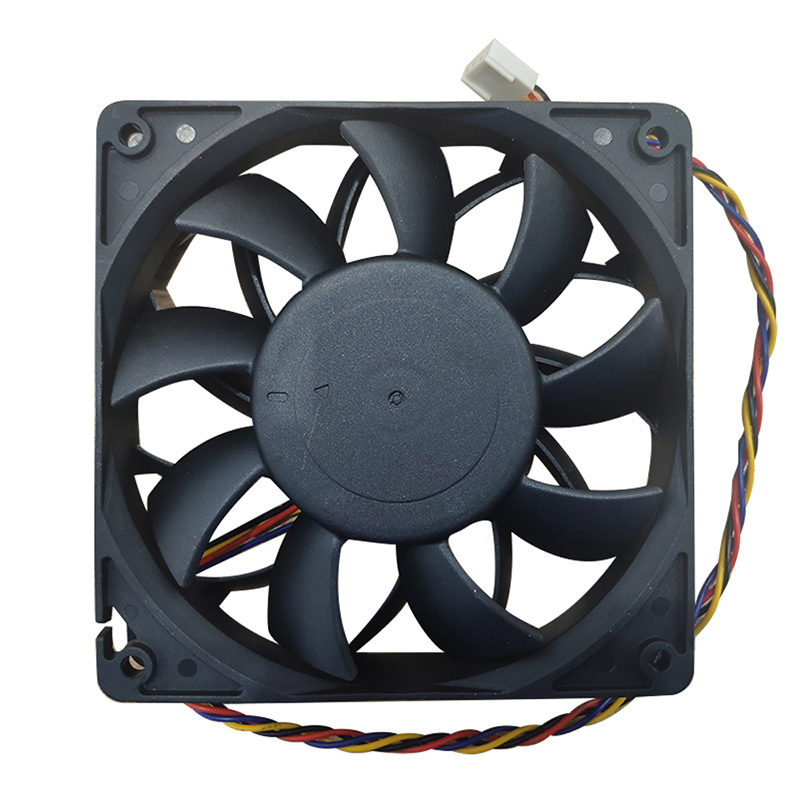

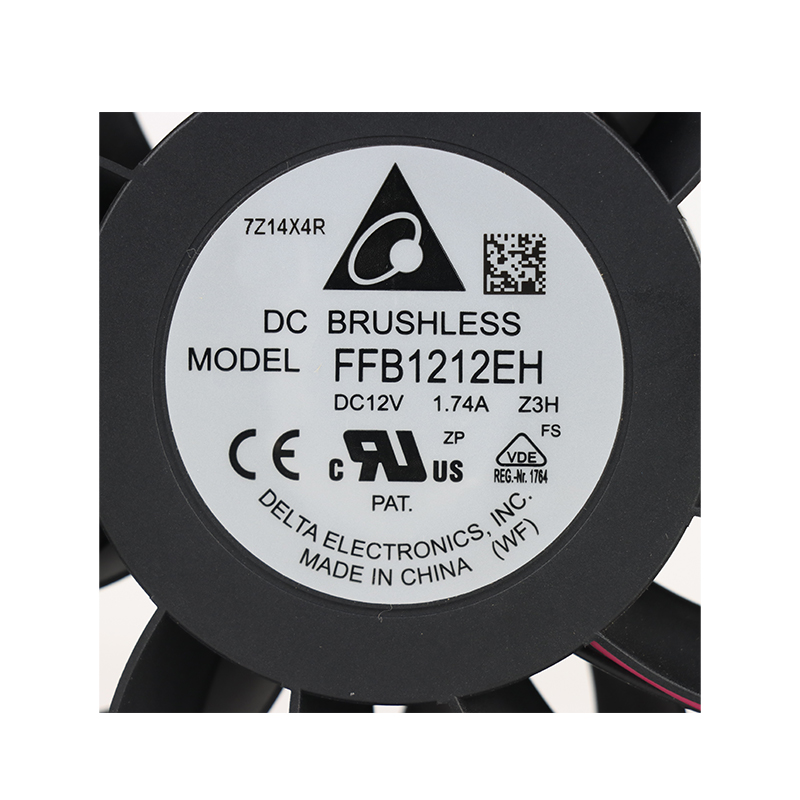

FFB1212EH Delta Blower Fan

Brand :: Delta

Model:: FFB1212EH | Delta Electronics 12VDC 17.4W Axial Fan for Server and Telecommunications Cooling

Type:: Blower Fans

Industry:: Data Center Cooling

Description:: A 120 x 120 x 25 mm body gives FFB1212EH a shallower axial format for server and telecom ventilation. This 12VDC fan has a listed 4000 rpm speed and 17.4 W input, with 256 m3/h maximum airflow specified.

Datasheet:: FFB1212EH | Delta Electronics 12VDC 17.4W Axial Fan for Server and Telecommunications Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	12012025
Max.Air Flow(m³/h)	256
Max.Pressure(Pa)	12.5
Input Power(W)	17.4
Speed(rpm)	4000
Noise(db)	56.4

Product Features

DC Equipment Cooling

Equipment manufacturers evaluating power-supply equipment can consider Delta FFB1212EH, a brushless DC axial fan. The fan supports heat removal by keeping air moving through the selected cooling path.

A listed speed of 4000 rpm helps define the operating profile when reviewing airflow demand, mechanical mounting and the enclosure's acoustic target. Its high-performance fan family emphasizes air delivery and pressure capability, helping address the resistance of densely populated equipment. Matching the fan curve to the finished air path supports efficient cooling; free-air flow alone does not determine installed performance.

Choose it for a model-specific cooling requirement, with connector, operating conditions and airflow direction checked before release to production.

Application Industry

Server & Storage

For server and storage equipment, Delta FFB1212EH provides equipment cooling around processors, drives and other heat-producing assemblies. Managing sustained computing loads helps maintain stable equipment temperatures.

UPS Equipment

In uninterruptible power systems, air movement helps handle heat produced during power conversion. Delta FFB1212EH supports cooling around power electronics, contributing to stable backup-power operation.

Power Supplies

Delta FFB1212EH supports cooling in power-supply equipment. Air circulation around power-conversion components helps manage electrical conversion losses, supporting dependable power delivery.

Telecommunications

In telecommunications equipment, Delta FFB1212EH helps remove heat from densely arranged electronic assemblies. The cooling solution addresses continuous communication duty to support service continuity.

Frequently Asked Questions

What equipment is FFB1212EH intended to cool?

FFB1212EH is listed for Server and Telecommunications cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

What supply voltage should be used for FFB1212EH?

12VDC is listed for FFB1212EH. Verify the allowable input range, phase, frequency where applicable, polarity and wiring diagram in the exact specification.

Which certifications or standards apply to FFB1212EH?

RoHS Compliant is listed in the workbook. Obtain the current exact-model declaration and datasheet before claiming safety approvals, ingress protection or international compliance.

What installation space is required for FFB1212EH?

The workbook lists 120 x 120 x 25 mm. Confirm overall depth, hole pattern, connector clearance and guard or inlet-ring dimensions in the exact mechanical drawing.

What should be checked if FFB1212EH fails to start?

Isolate power first. Verify the approved supply, connector, polarity or phase, control-enable input and any obstruction; follow the exact specification and do not bypass protection circuits.
