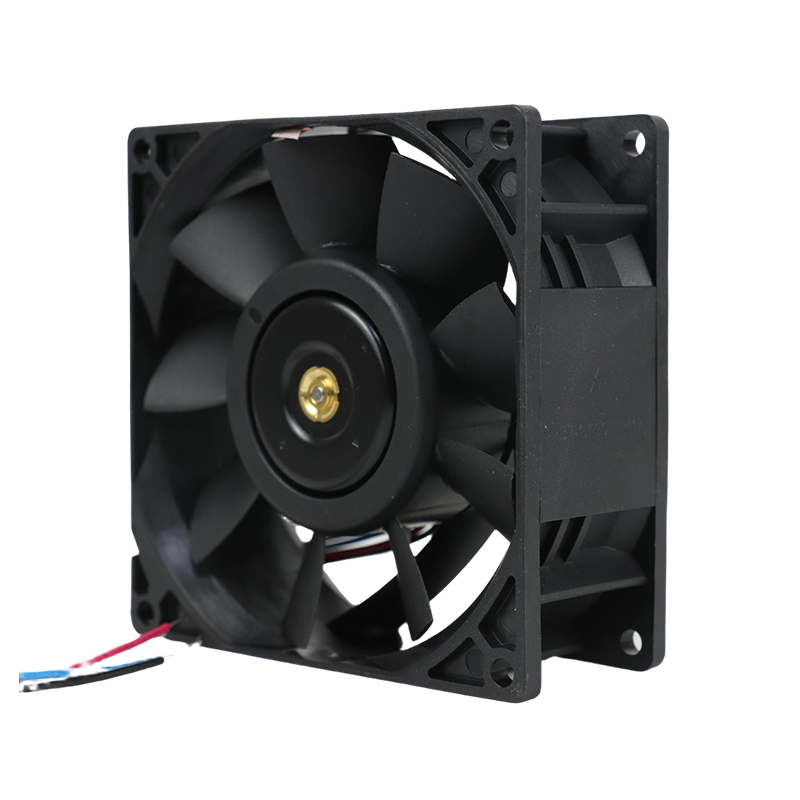

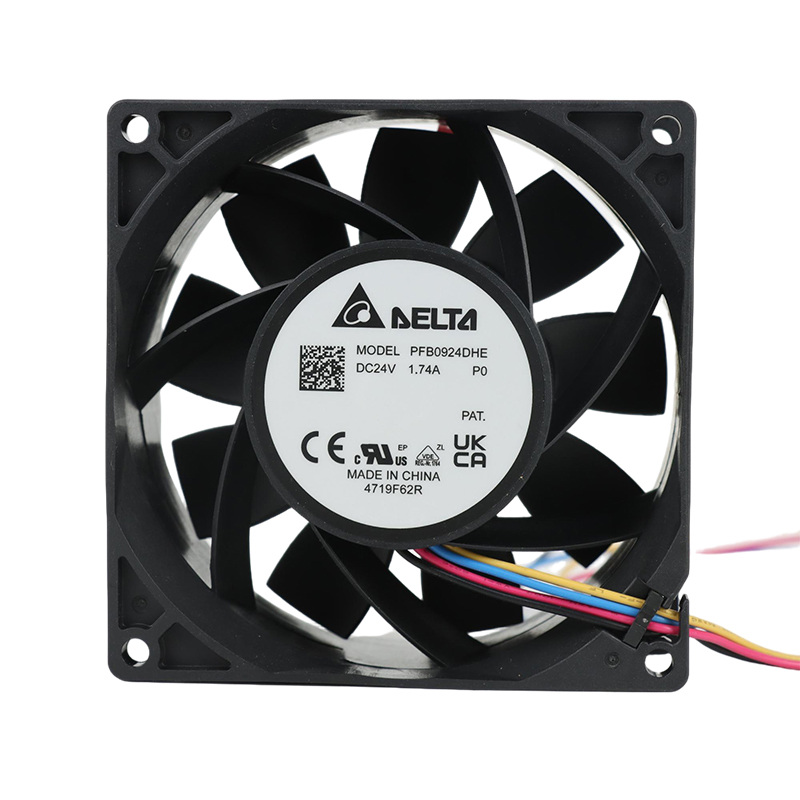

PFB0924DHEP0 Delta Compact Fan

Brand :: Delta

Model:: PFB0924DHEP0 | Delta Electronics 24VDC 34.8W Axial Fan for Industrial Control Cabinet Cooling

Type:: Compact Fans

Industry:: Automation

Description:: Pressure is a key selection point for PFB0924DHEP0: the listed maximum is 453.2 Pa. This 24VDC axial fan serves industrial control-cabinet cooling in a 92 x 92 x 38 mm package rated at 8000 rpm.

Datasheet:: PFB0924DHEP0 | Delta Electronics 24VDC 34.8W Axial Fan for Industrial Control Cabinet Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	929238
Max.Air Flow(m³/h)	297.4
Max.Pressure(Pa)	453.2
Input Power(W)	34.8
Speed(rpm)	8000
Noise(db)	66.5

Product Features

DC Equipment Cooling

The PFB0924DHEP0 addresses ventilation needs in industrial control equipment. Delta's brushless DC axial fan format allows cooling airflow to be integrated alongside the equipment's heat-producing assemblies.

A listed speed of 8000 rpm helps define the operating profile when reviewing airflow demand, mechanical mounting and the enclosure's acoustic target. UL 94V-0 material classification supports the component-level flammability review without implying certification of the finished equipment. Matching the fan curve to the finished air path supports efficient cooling; free-air flow alone does not determine installed performance.

It suits engineering buyers who need a defined cooling component. Verify the exact wiring and environmental limits before approving long-term installation.

Application Industry

Server & Storage

Delta PFB0924DHEP0 serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

For power-supply equipment, Delta PFB0924DHEP0 provides equipment cooling around power-conversion components. Managing electrical conversion losses helps maintain dependable power delivery.

Telecommunications

In telecommunications equipment, air movement helps handle continuous communication duty. Delta PFB0924DHEP0 supports cooling around densely arranged electronic assemblies, contributing to service continuity.

Industrial Controls

Delta PFB0924DHEP0 supports cooling in industrial control equipment. Air circulation around controllers and electronic modules helps manage heat accumulated within enclosures, supporting stable automation operation.

Frequently Asked Questions

What installation space is required for PFB0924DHEP0?

The workbook lists 92 x 92 x 38 mm. Confirm overall depth, hole pattern, connector clearance and guard or inlet-ring dimensions in the exact mechanical drawing.

Does PFB0924DHEP0 support speed control?

The filter data does not confirm a control interface. Check the exact-model datasheet and wiring for PWM, analog control, FG/RD feedback or fixed-speed operation before connection.

What maximum airflow is listed for PFB0924DHEP0?

The workbook lists a maximum airflow of 297.4 m3/h. This is not the airflow at every system resistance; use the applicable pressure-flow curve to identify the installed operating point.

Can PFB0924DHEP0 run continuously in 24/7 equipment?

The supplied filter data does not establish an unconditional 24/7 rating. Confirm bearing life, temperature range, duty cycle and derating in the exact datasheet, then validate system-level redundancy.

What equipment is PFB0924DHEP0 intended to cool?

PFB0924DHEP0 is listed for Industrial Control Cabinet cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.
