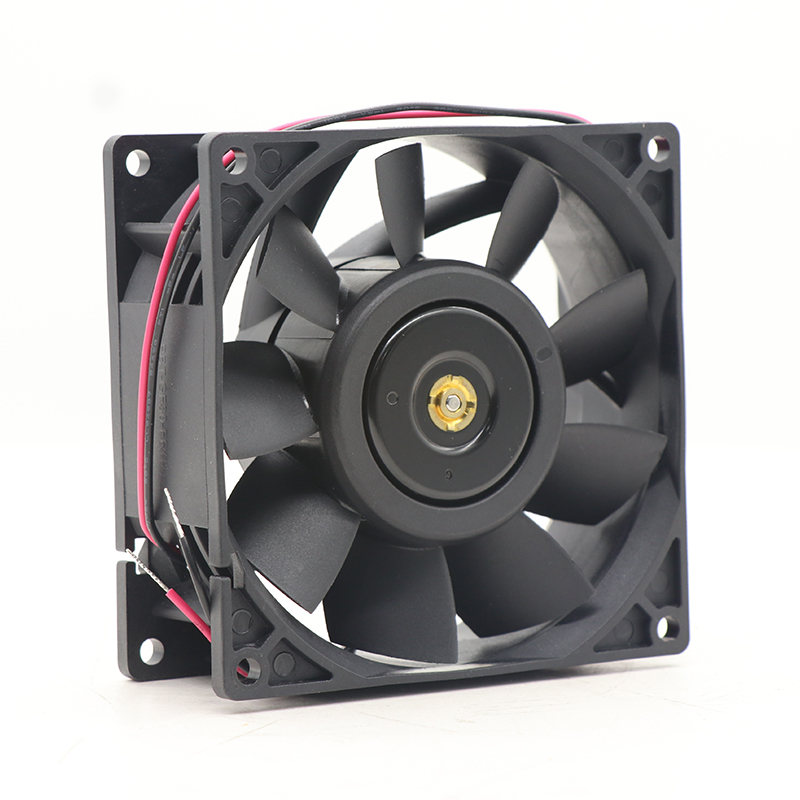

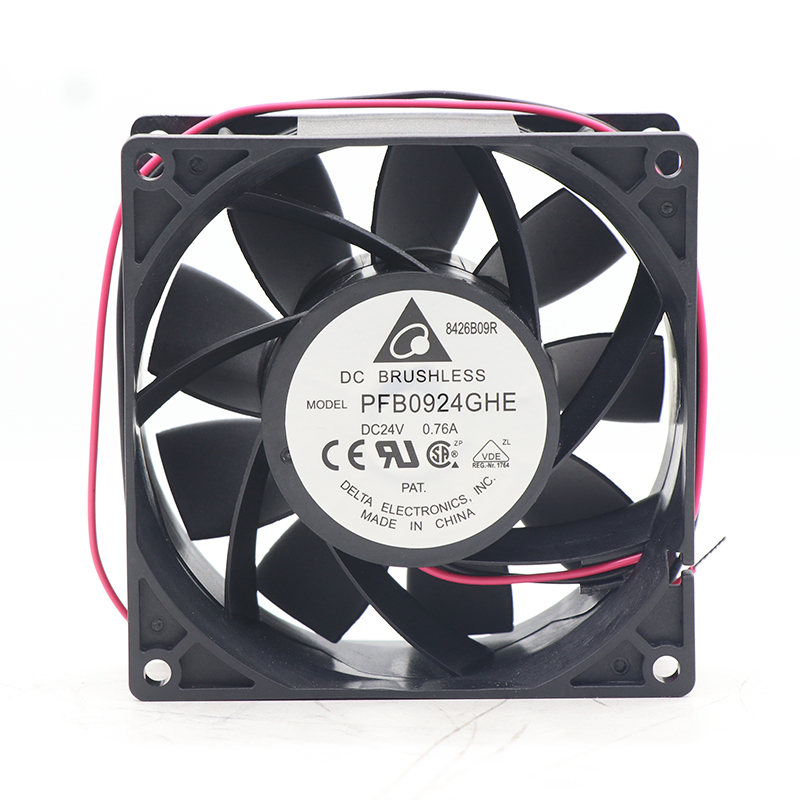

PFB0924GHE Delta Compact Fan

Brand :: Delta

Model:: PFB0924GHE | Delta Electronics 24VDC 15.12W Axial Fan for Industrial Control Cabinet Cooling

Type:: Compact Fans

Industry:: Automation

Description:: PFB0924GHE is specified for 24VDC axial fan cooling in industrial control cabinets. Its 92 x 92 x 38 mm housing and 6000 rpm rotor are paired with a listed 15.12 W input and 220 m3/h maximum airflow.

Datasheet:: PFB0924GHE | Delta Electronics 24VDC 15.12W Axial Fan for Industrial Control Cabinet Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	929238
Max.Air Flow(m³/h)	220
Input Power(W)	15.12
Speed(rpm)	6000
Noise(db)	6.05

Product Features

DC Equipment Cooling

Delta PFB0924GHE serves telecommunications equipment as a brushless DC axial fan. Equipment builders can use its mechanical format to establish forced ventilation near heat-producing parts.

Its listed 92 x 92 x 38 mm format defines the space needed for installation, helping designers reserve room for adjacent components and cable routing. The PFB family targets high-static-pressure duties, making it relevant when component packing and restricted passages challenge air delivery. Separating the intake from warmed exhaust improves the effectiveness of air exchange across the equipment section.

OEM purchasers can specify this model after checking the thermal duty, supply and mechanical fit, keeping reliable equipment operation central to selection.

Application Industry

Server & Storage

Delta PFB0924GHE serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

Delta PFB0924GHE supports cooling in power-supply equipment. Air circulation around power-conversion components helps manage electrical conversion losses, supporting dependable power delivery.

Telecommunications

In telecommunications equipment, Delta PFB0924GHE helps remove heat from densely arranged electronic assemblies. The cooling solution addresses continuous communication duty to support service continuity.

Industrial Controls

For industrial control equipment, Delta PFB0924GHE provides equipment cooling around controllers and electronic modules. Managing heat accumulated within enclosures helps maintain stable automation operation.

Frequently Asked Questions

What equipment is PFB0924GHE intended to cool?

PFB0924GHE is listed for Industrial Control Cabinet cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

What should be checked if PFB0924GHE fails to start?

Isolate power first. Verify the approved supply, connector, polarity or phase, control-enable input and any obstruction; follow the exact specification and do not bypass protection circuits.

What operating speed is listed for PFB0924GHE?

6000 rpm is listed in the workbook. This value alone does not establish adjustable-speed capability; confirm the control input and permitted operating range in the exact datasheet.

What installation space is required for PFB0924GHE?

The workbook lists 92 x 92 x 38 mm. Confirm overall depth, hole pattern, connector clearance and guard or inlet-ring dimensions in the exact mechanical drawing.

Does PFB0924GHE support speed control?

The filter data does not confirm a control interface. Check the exact-model datasheet and wiring for PWM, analog control, FG/RD feedback or fixed-speed operation before connection.

Can PFB0924GHE run continuously in 24/7 equipment?

The supplied filter data does not establish an unconditional 24/7 rating. Confirm bearing life, temperature range, duty cycle and derating in the exact datasheet, then validate system-level redundancy.
