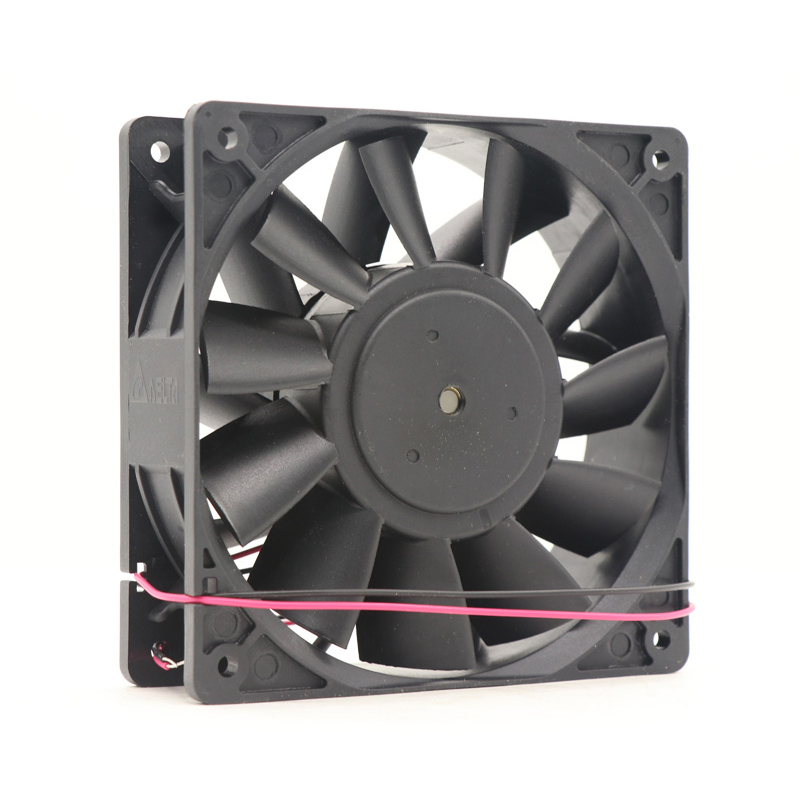

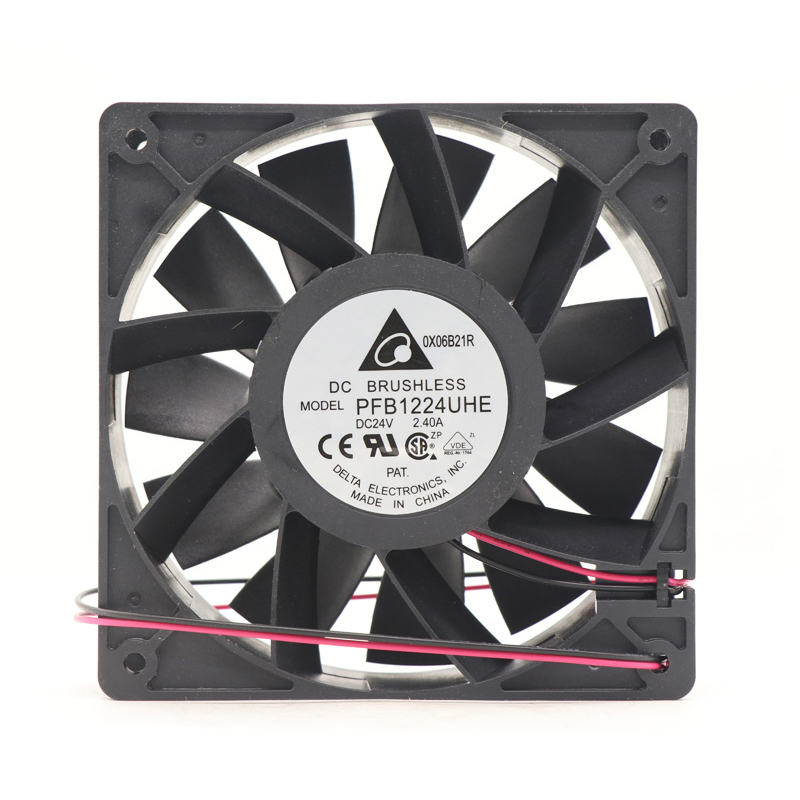

PFB1224UHE Delta Compact Fan

Brand :: Delta

Model:: PFB1224UHE | Delta Electronics 24VDC 48W Axial Fan for Industrial Control Cabinet Cooling

Type:: Compact Fans

Industry:: Automation

Description:: With 430 m3/h listed maximum airflow, PFB1224UHE addresses industrial control-cabinet cooling. This 24VDC axial fan combines a 120 x 120 x 38 mm frame with a 5500 rpm speed and 48 W input rating.

Datasheet:: PFB1224UHE | Delta Electronics 24VDC 48W Axial Fan for Industrial Control Cabinet Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	12012038
Max.Air Flow(m³/h)	430
Input Power(W)	48
Speed(rpm)	5500
Noise(db)	66.5

Product Features

DC Equipment Cooling

Equipment manufacturers evaluating telecommunications equipment can consider Delta PFB1224UHE, a brushless DC axial fan. The fan supports heat removal by keeping air moving through the selected cooling path.

The listed 48 W input is relevant to supply sizing and the system energy budget; actual consumption depends on the operating duty. The PFB family targets high-static-pressure duties, making it relevant when component packing and restricted passages challenge air delivery. The mounting arrangement and duct transitions should preserve the intended air path so cooling is not lost to leakage or recirculation.

Choose it for a model-specific cooling requirement, with connector, operating conditions and airflow direction checked before release to production.

Application Industry

Server & Storage

Delta PFB1224UHE serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

In power-supply equipment, air movement helps handle electrical conversion losses. Delta PFB1224UHE supports cooling around power-conversion components, contributing to dependable power delivery.

Telecommunications

Delta PFB1224UHE supports cooling in telecommunications equipment. Air circulation around densely arranged electronic assemblies helps manage continuous communication duty, supporting service continuity.

Industrial Controls

In industrial control equipment, Delta PFB1224UHE helps remove heat from controllers and electronic modules. The cooling solution addresses heat accumulated within enclosures to support stable automation operation.

Frequently Asked Questions

What supply voltage should be used for PFB1224UHE?

24VDC is listed for PFB1224UHE. Verify the allowable input range, phase, frequency where applicable, polarity and wiring diagram in the exact specification.

What equipment is PFB1224UHE intended to cool?

PFB1224UHE is listed for Industrial Control Cabinet cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

How should noise from PFB1224UHE be evaluated?

The listed noise value is 66.5 dB, but compare values only under matching test conditions. Installed noise also depends on speed, restriction, resonance and enclosure geometry.

Can PFB1224UHE directly replace another fan?

A matching outline alone does not prove compatibility. Check 24VDC, mounting dimensions, connector, pinout, airflow direction, control signals and the required pressure-flow point.

Can PFB1224UHE reduce total ownership cost?

The provided parameters do not prove a cost saving. Compare purchase price, power at the real operating point, service access, expected life and downtime risk for the complete cooling system.
