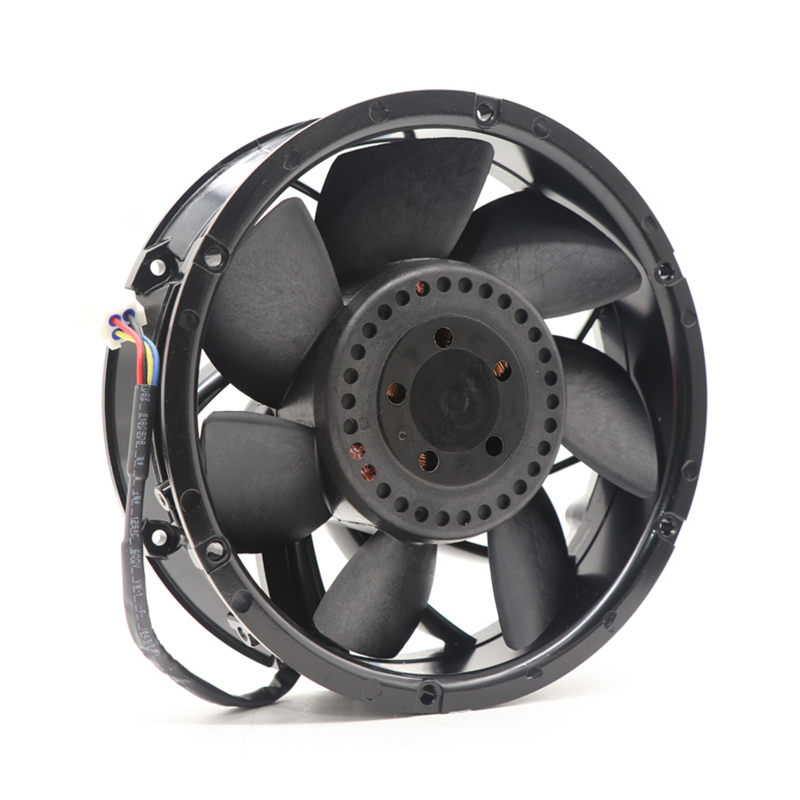

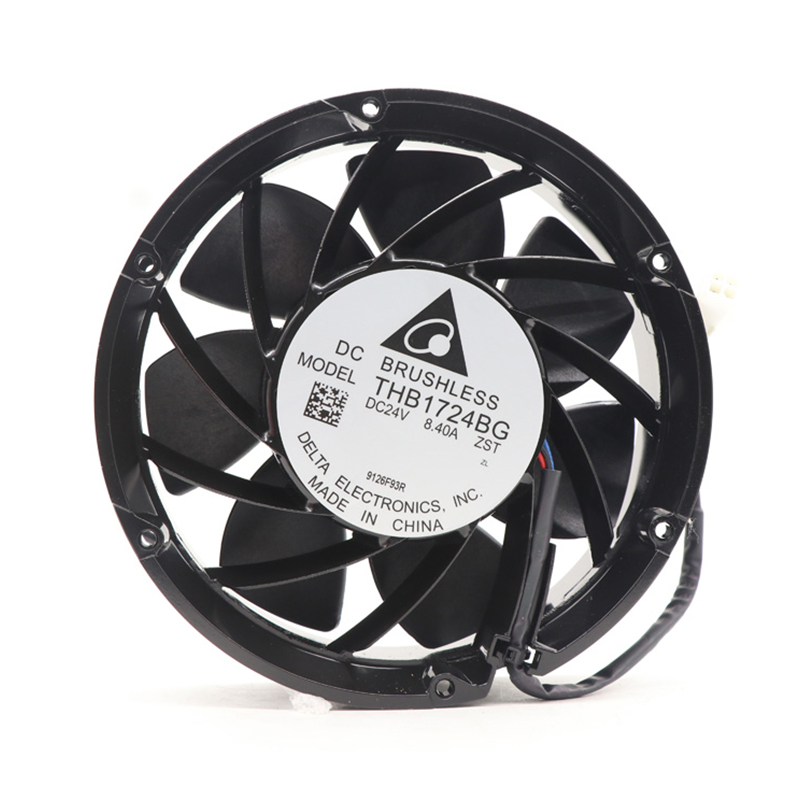

THB1724BG Delta Compact Fan

Brand :: Delta

Model:: THB1724BG | Delta Electronics 24VDC 201.6W Axial Fan for Industrial and Telecom Cooling

Type:: Compact Fans

Industry:: Industrial Cooling

Description:: THB1724BG is a 24VDC axial fan for industrial, energy and telecom equipment. A listed 716.6 Pa maximum static pressure and 5900 rpm speed define its pressure-oriented specification in a 172 x 150 x 51 mm body.

Product Features

Rated Voltage(V)	24
Size(mm)	172×150×51
Max.Air Flow(m³/h)	760
Max.Pressure(Pa)	716.6
Input Power(W)	201.6
Speed(rpm)	5900
Noise(db)	68.8

Product Features

DC Equipment Cooling

For industrial control equipment, the THB1724BG from Delta is a brushless DC axial fan that supports active thermal management. A planned inlet-to-outlet route helps the installation carry component heat away.

The listed 201.6 W input is relevant to supply sizing and the system energy budget; actual consumption depends on the operating duty. The axial layout moves air along the fan axis, supporting a direct ventilation route through the equipment opening. Keeping inlet obstructions clear helps preserve useful airflow without spending extra power on avoidable system losses.

Choose it for a model-specific cooling requirement, with connector, operating conditions and airflow direction checked before release to production.

Application Industry

Telecommunications

Delta THB1724BG supports cooling in telecommunications equipment. Air circulation around densely arranged electronic assemblies helps manage continuous communication duty, supporting service continuity.

Industrial Controls

In industrial control equipment, Delta THB1724BG helps remove heat from controllers and electronic modules. The cooling solution addresses heat accumulated within enclosures to support stable automation operation.

Energy Equipment

For energy equipment, Delta THB1724BG provides equipment cooling around electrical conversion assemblies. Managing recurring thermal loads helps maintain reliable equipment operation.

Frequently Asked Questions

What equipment is THB1724BG intended to cool?

THB1724BG is listed for Industrial and Telecom cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

What should be checked if THB1724BG fails to start?

Isolate power first. Verify the approved supply, connector, polarity or phase, control-enable input and any obstruction; follow the exact specification and do not bypass protection circuits.

What installation space is required for THB1724BG?

The workbook lists 172 x 150 x 51 mm. Confirm overall depth, hole pattern, connector clearance and guard or inlet-ring dimensions in the exact mechanical drawing.

What supply voltage should be used for THB1724BG?

24VDC is listed for THB1724BG. Verify the allowable input range, phase, frequency where applicable, polarity and wiring diagram in the exact specification.

How should the energy efficiency of THB1724BG be assessed?

The listed input-power figure is 201.6 W, but efficiency must be evaluated at the required airflow and pressure. Check the applicable fan curve and test conditions before comparison.
