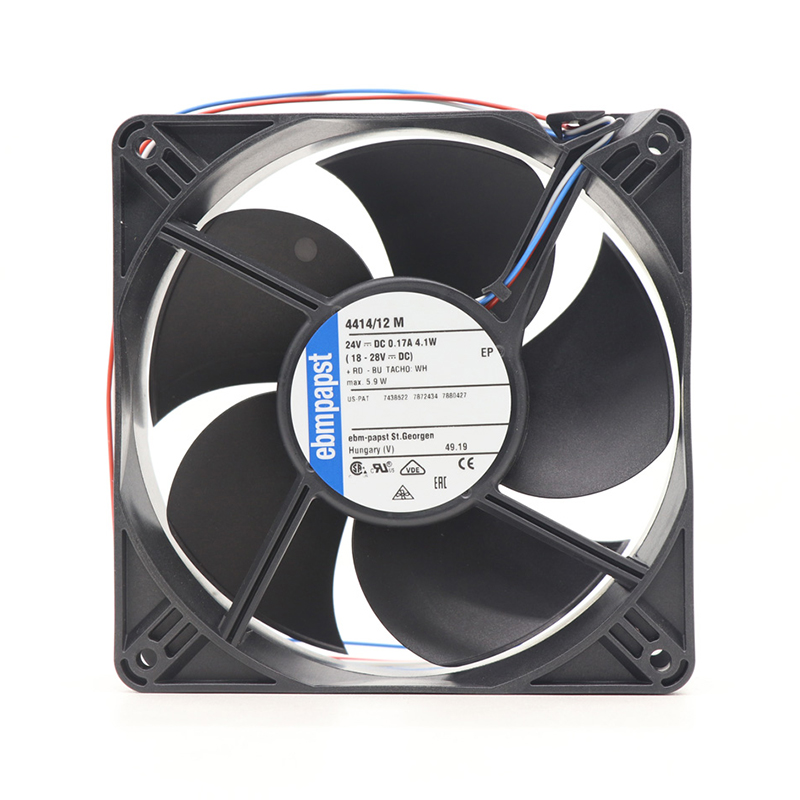

4414/12M ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 4414/12M | ebm-papst 24V 4.1W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 4414/12M is a high-performance dc axial fan engineered for electronics and industrial equipment. It provides reliable airflow and efficient thermal management for demanding equipment.

Datasheet:: 4414/12M | ebm-papst 24V 4.1W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	12012038
Max.Air Flow(m³/h)	184
Max.Pressure(Pa)	103
Input Power(W)	4.1
Speed(rpm)	3300
Noise(db)	43

Product Features

Compact Airflow

Designed as a compact DC axial cooling fan, the ebmpapst 4414/12M supports thermal management in industrial automation and electronic equipment. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 24 V supply, airflow up to 184 m³/h, and maximum pressure of 103 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support for durable motor support. Listed noise is 43 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

OEM buyers and automation engineers can consider the 4414/12M for space-conscious cooling. Confirm airflow demand, wiring, mounting and temperature limits before design-in. Proper installation supports stable thermal control and long fan life.

Application Industry

Automation Cooling

4414/12M Supports reliable heat removal in automation controllers, machine electronics and compact industrial control equipment.

Product Insights

Other Series Comparison — 4414/12M vs Variants

How the 4414/12M compares to nearby Other series variants:

Model	252H	255M	3214J/2N-335	3214JH4
Air Flow	—	—	—	—
Power	— W	— W	— W	— W
Noise	— dB	— dB	— dB	— dB
Size	— mm	— mm	— mm	— mm

All Other series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — 4414/12M Other Fan

Condenser Cooling: The 4414/12M axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

How should the 4414/12M be maintained?

Keep the airflow path clean, inspect wiring and mounting, and follow the assigned datasheet instructions.

What is the rated voltage of the ebmpapst 4414/12M?

The product data lists a rated voltage of 24 V. Match the supply before wiring.

What are the dimensions of the 4414/12M?

The listed size is 120*120*38 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 4414/12M?

The product data lists airflow up to 184 m³/h, speed 3300 RPM, pressure up to 103 Pa; confirm the required operating point.
