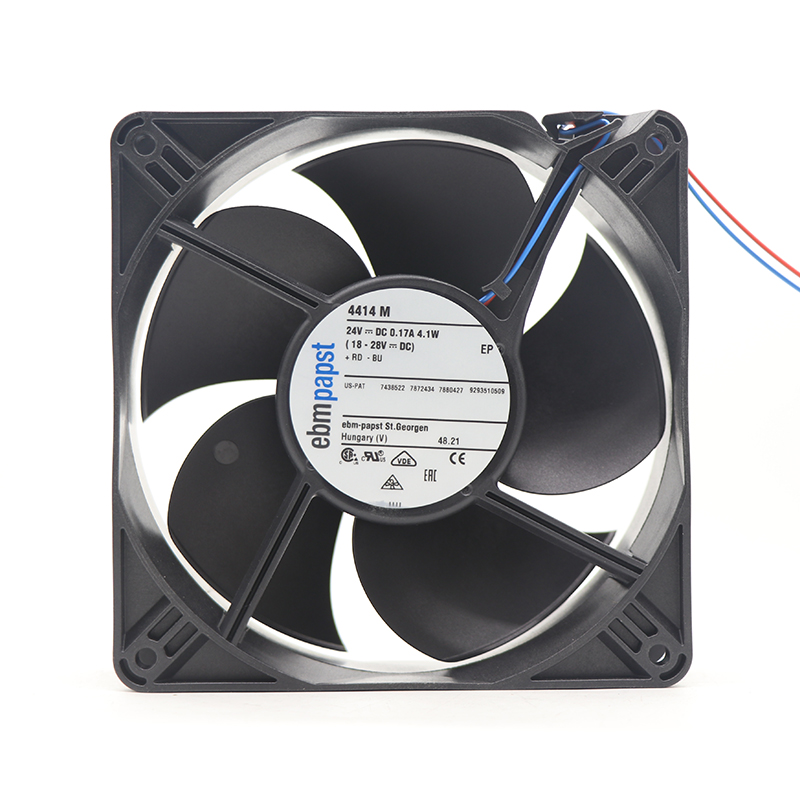

4414M ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 4414M | ebm-papst 24V 4.1W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 4414M is a high-performance dc axial fan engineered for power supplies and power modules. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 4414M | ebm-papst 24V 4.1W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	11911938
Max.Air Flow(m³/h)	184
Max.Pressure(Pa)	88
Input Power(W)	4.1
Speed(rpm)	3300
Noise(db)	42

Product Features

Compact Airflow

Designed as a compact DC axial cooling fan, the ebmpapst 4414M supports thermal management in power supplies and power modules. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 24 V supply, airflow up to 184 m³/h, and maximum pressure of 88 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. Its integrated frame, impeller and motor support stable ventilation. Listed noise is 42 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Power Module Cooling

4414M Delivers focused ventilation for power supplies and power modules used in compact electronic and automation assemblies.

Product Insights

Other Series Comparison — 4414M vs Variants

How the 4414M compares to nearby Other series variants:

Model	252H	255M	3214J/2N-335	3214JH4
Air Flow	—	—	—	—
Power	— W	— W	— W	— W
Noise	— dB	— dB	— dB	— dB
Size	— mm	— mm	— mm	— mm

All Other series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — 4414M Other Fan

Condenser Cooling: The 4414M axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What is the rated voltage of the ebmpapst 4414M?

The product data lists a rated voltage of 24 V. Match the supply before wiring.

What are the dimensions of the 4414M?

The listed size is 119*119*38 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 4414M?

The product data lists airflow up to 184 m³/h, speed 3300 RPM, pressure up to 88 Pa; confirm the required operating point.
