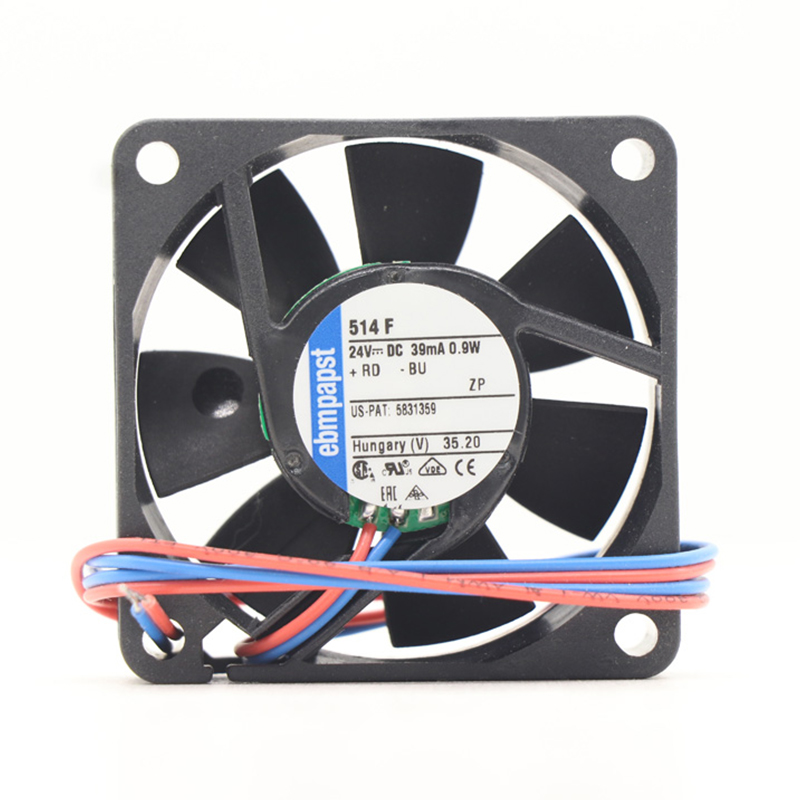

514F ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 514F | ebm-papst 24V 0.9W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 514F is a high-performance dc axial fan engineered for power supplies. It delivers reliable airflow, efficient cooling and dependable operation in compact equipment.

Datasheet:: 514F | ebm-papst 24V 0.9W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	505015
Max.Air Flow(m³/h)	19
Input Power(W)	0.9
Speed(rpm)	5000

Product Features

Compact Airflow

The ebmpapst 514F is a compact DC axial cooling fan for power supplies and power modules, equipment enclosures. Its space-saving format fits control cabinets, embedded electronics and automation assemblies that need a direct airflow path for continuous heat removal.

Key selection data includes a 24 V supply, and airflow up to 19 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. Its integrated frame, impeller and motor support stable ventilation. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

OEM buyers and automation engineers can consider the 514F for space-conscious cooling. Confirm airflow demand, wiring, mounting and temperature limits before design-in. Proper installation supports stable thermal control and long fan life.

Application Industry

Power Module Cooling

514F Delivers focused ventilation for power supplies and power modules used in compact electronic and automation assemblies.

Enclosure Cooling

514F Provides compact forced-air cooling for equipment enclosures where internal electronics require a defined ventilation path.

Frequently Asked Questions

Where can the 514F be used?

It is a compact DC axial fan listed for automation cooling and ventilation applications.

Is the 514F listed as RoHS compliant?

Yes. The workbook lists RoHS Compliant; request the exact-model document if formal confirmation is required.

How should the 514F be maintained?

Keep the airflow path clean, inspect wiring and mounting, and follow the assigned datasheet instructions.

What is the rated voltage of the ebmpapst 514F?

The product data lists a rated voltage of 24 V. Match the supply before wiring.
