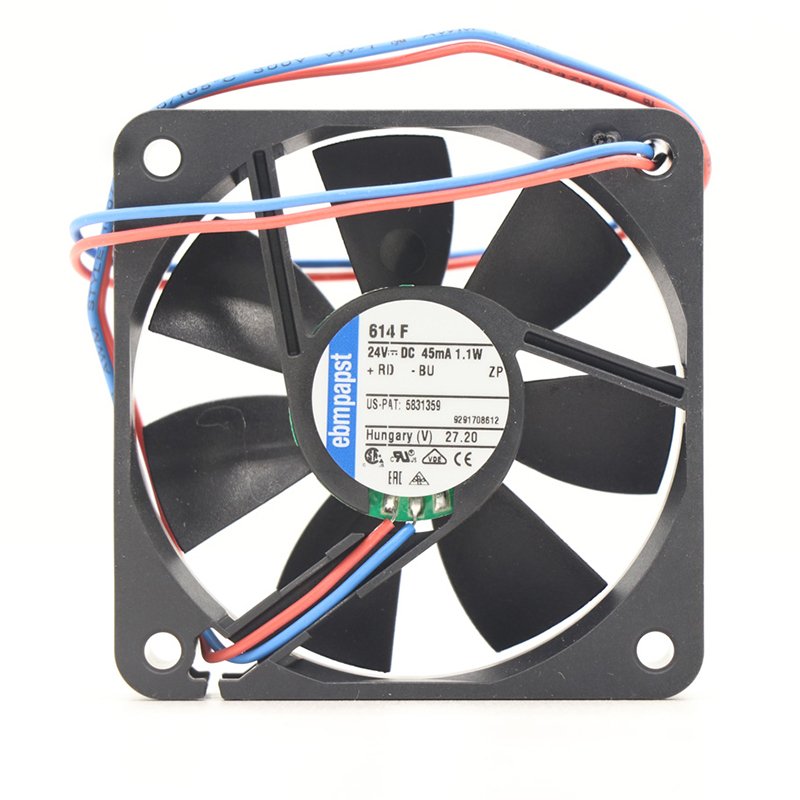

614F ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 614F | ebm-papst 24V 1.1W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 614F is a high-performance dc axial fan engineered for variable-frequency drives. It delivers reliable airflow, efficient cooling and dependable operation in compact equipment.

Datasheet:: 614F | ebm-papst 24V 1.1W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	606015
Max.Air Flow(m³/h)	27
Input Power(W)	1.1
Speed(rpm)	3900

Product Features

Compact Airflow

The ebmpapst 614F is a compact DC axial cooling fan intended for variable-frequency drives, robotics and automation. It integrates into equipment enclosures and automation modules where localized heat loads require stable air exchange in limited space.

Key selection data includes a 24 V supply, and airflow up to 27 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. The datasheet identifies sleeve-bearing motor support for durable motor support. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Drive System Cooling

614F Maintains airflow around variable-frequency drives and power electronics to reduce heat buildup inside control enclosures.

Product Insights

Other Series Comparison — 614F vs Variants

How the 614F compares to nearby Other series variants:

Model	252H	255M	3214J/2N-335	3214JH4
Air Flow	—	—	—	—
Power	— W	— W	— W	— W
Noise	— dB	— dB	— dB	— dB
Size	— mm	— mm	— mm	— mm

All Other series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — 614F Other Fan

Condenser Cooling: The 614F axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What is the rated voltage of the ebmpapst 614F?

The product data lists a rated voltage of 24 V. Match the supply before wiring.

What are the dimensions of the 614F?

The listed size is 60*60*15 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 614F?

The product data lists airflow up to 27 m³/h, speed 3900 RPM; confirm the required operating point.
