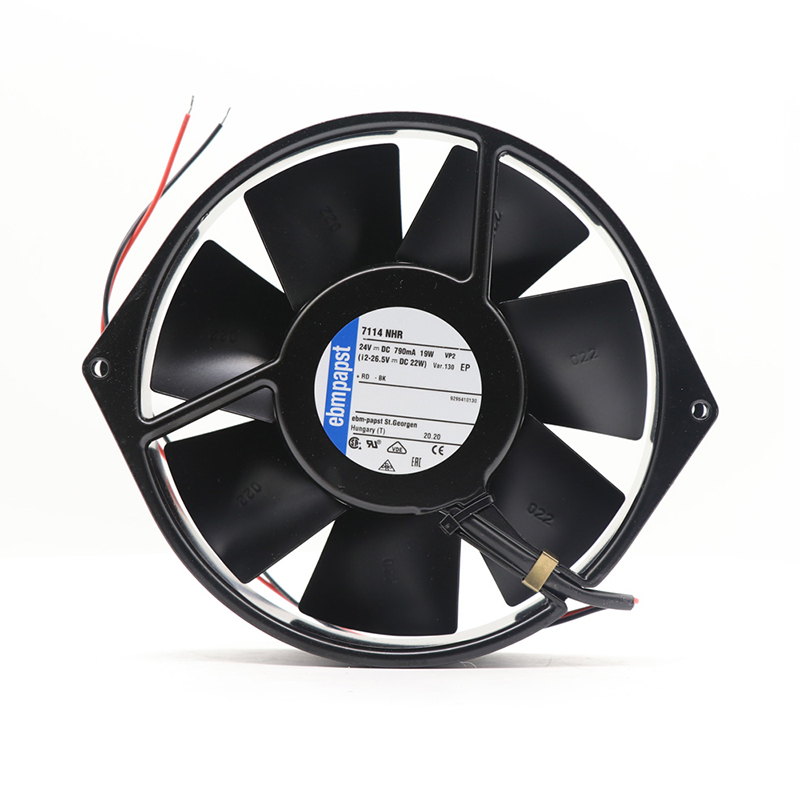

7114NHR ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 7114NHR | ebm-papst 24V 17.3W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 7114NHR is a high-performance dc axial fan engineered for variable-frequency drives. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 7114NHR | ebm-papst 24V 17.3W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	17215038
Max.Air Flow(m³/h)	360
Max.Pressure(Pa)	185
Input Power(W)	17.3
Speed(rpm)	3350

Product Features

High Airflow Cooling

Designed as a compact DC axial cooling fan, the ebmpapst 7114NHR supports thermal management in variable-frequency drives. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 24 V supply, airflow up to 360 m³/h, and maximum pressure of 185 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. Its integrated frame, impeller and motor support stable ventilation. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

OEM buyers and automation engineers can consider the 7114NHR for space-conscious cooling. Confirm airflow demand, wiring, mounting and temperature limits before design-in. Proper installation supports stable thermal control and long fan life.

Application Industry

Drive System Cooling

7114NHR Maintains airflow around variable-frequency drives and power electronics to reduce heat buildup inside control enclosures.

Product Insights

Other Series Comparison — 7114NHR vs Variants

How the 7114NHR compares to nearby Other series variants:

Model	252H	255M	3214J/2N-335	3214JH4
Air Flow	—	—	—	—
Power	— W	— W	— W	— W
Noise	— dB	— dB	— dB	— dB
Size	— mm	— mm	— mm	— mm

All Other series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — 7114NHR Other Fan

Condenser Cooling: The 7114NHR axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What power or noise data is available for the 7114NHR?

The listed values are input power 17.3 W. Use the exact model data for selection.

Is the 7114NHR compatible with my equipment?

Compare 24 V, 172*150*38 mm, airflow demand and connection details with your equipment.
