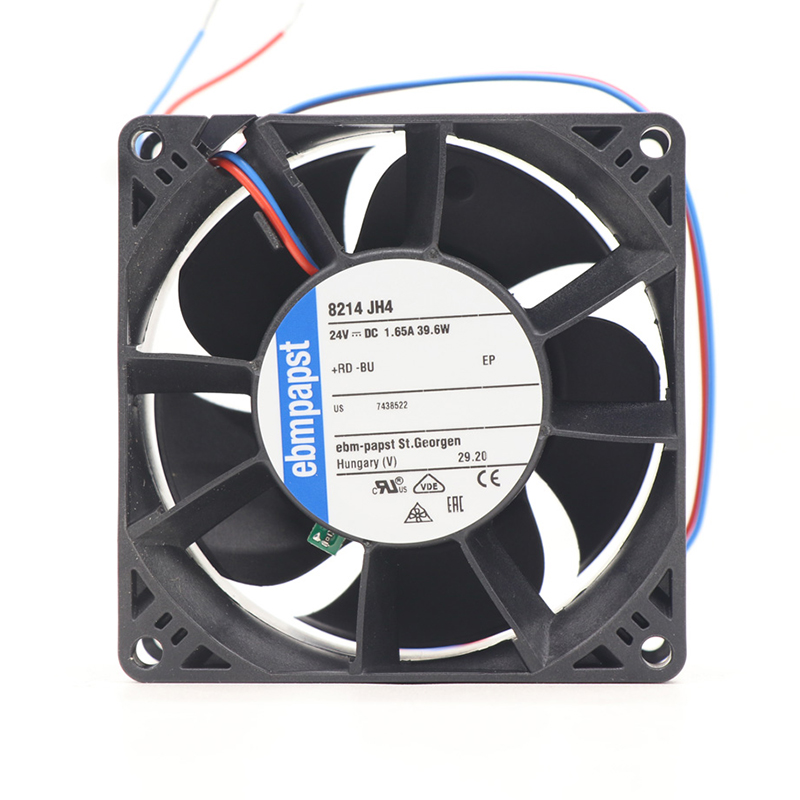

8214JH4 ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 8214JH4 | ebm-papst 24V 38W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 8214JH4 is a high-performance dc axial fan engineered for power supplies and power modules. It provides reliable airflow and efficient thermal management for demanding equipment.

Datasheet:: 8214JH4 | ebm-papst 24V 38W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	808038
Max.Air Flow(m³/h)	222
Max.Pressure(Pa)	650
Input Power(W)	38
Speed(rpm)	14000
Noise(db)	71

Product Features

High Static Cooling

The ebmpapst 8214JH4 is a compact DC axial cooling fan intended for power supplies and power modules. It integrates into equipment enclosures and automation modules where localized heat loads require stable air exchange in limited space.

Key selection data includes a 24 V supply, airflow up to 222 m³/h, and maximum pressure of 650 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support for durable motor support. Listed noise is 71 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Power Module Cooling

8214JH4 Delivers focused ventilation for power supplies and power modules used in compact electronic and automation assemblies.

Product Insights

Other Series Comparison — 8214JH4 vs Variants

How the 8214JH4 compares to nearby Other series variants:

Model	252H	255M	3214J/2N-335	3214JH4
Air Flow	—	—	—	—
Power	— W	— W	— W	— W
Noise	— dB	— dB	— dB	— dB
Size	— mm	— mm	— mm	— mm

All Other series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — 8214JH4 Other Fan

Condenser Cooling: The 8214JH4 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What performance is listed for the 8214JH4?

The product data lists airflow up to 222 m³/h, speed 14000 RPM, pressure up to 650 Pa; confirm the required operating point.

What power or noise data is available for the 8214JH4?

The listed values are input power 38 W, noise 71 dB. Use the exact model data for selection.
