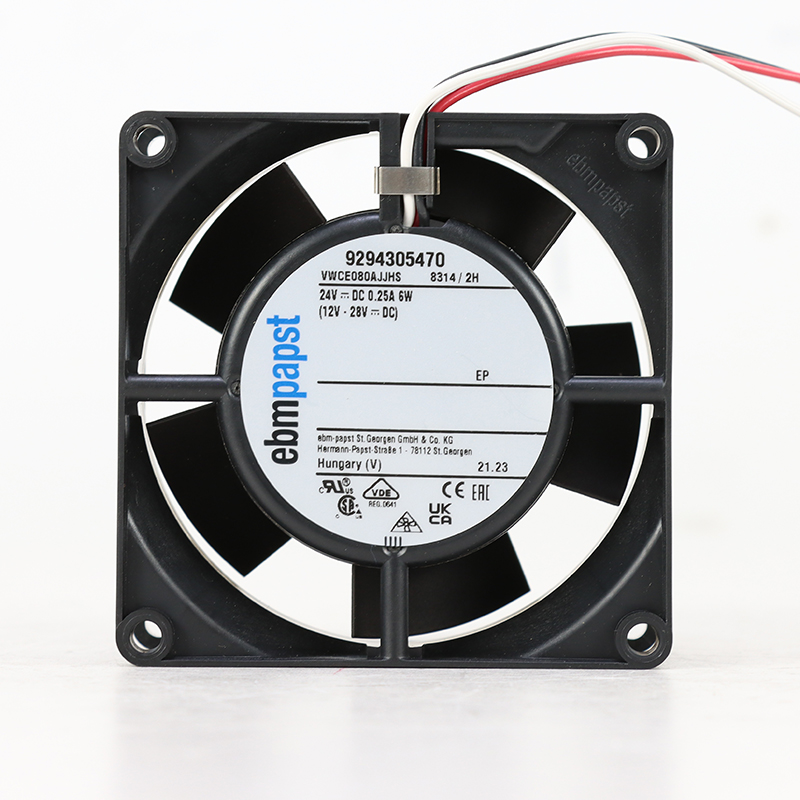

8314/2H ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 8314/2H | ebm-papst 24V 6W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 8314/2H is a high-performance dc axial fan engineered for variable-frequency drives. It provides efficient airflow and dependable thermal management in compact, demanding equipment.

Datasheet:: 8314/2H | ebm-papst 24V 6W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	808032
Max.Air Flow(m³/h)	80
Input Power(W)	6
Speed(rpm)	5000

Product Features

Compact Airflow

Designed as a compact DC axial cooling fan, the ebmpapst 8314/2H supports thermal management in variable-frequency drives. It suits compact enclosures and control modules requiring steady ventilation around heat-sensitive components.

Key selection data includes a 24 V supply, and airflow up to 80 m³/h. The axial flow path provides efficient cooling, while pressure performance should be checked against filter and enclosure resistance. The datasheet identifies ball-bearing motor support for durable motor support. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Drive System Cooling

8314/2H Maintains airflow around variable-frequency drives and power electronics to reduce heat buildup inside control enclosures.

Product Insights

Other Series Comparison — 8314/2H vs Variants

How the 8314/2H compares to nearby Other series variants:

Model	252H	255M	3214J/2N-335	3214JH4
Air Flow	—	—	—	—
Power	— W	— W	— W	— W
Noise	— dB	— dB	— dB	— dB
Size	— mm	— mm	— mm	— mm

All Other series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — 8314/2H Other Fan

Condenser Cooling: The 8314/2H axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Where can the 8314/2H be used?

It is a compact DC axial fan listed for automation cooling and ventilation applications.

Is the 8314/2H listed as RoHS compliant?

Yes. The workbook lists RoHS Compliant; request the exact-model document if formal confirmation is required.

How should the 8314/2H be maintained?

Keep the airflow path clean, inspect wiring and mounting, and follow the assigned datasheet instructions.

What is the rated voltage of the ebmpapst 8314/2H?

The product data lists a rated voltage of 24 V. Match the supply before wiring.
