K3G500-PB24-03 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: K3G500-PB24-03 | ebm-papst 3~380-480V 4200W EC Centrifugal Fan for Air Handling

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Used in Air Handling, ebm-papst K3G500-PB24-03 is a 380-480V EC backward-curved centrifugal fan, with a listed airflow of 15,935 m³/h. The rating clarifies its operating profile.

Datasheet:: K3G500-PB24-03 | ebm-papst 3~380-480V 4200W EC Centrifugal Fan for Air Handling Datasheet (Pdf)

Product Features

Rated Voltage(V)	3`380-480
Size(mm)	500
Max.Air Flow(m³/h)	15935
Max.Pressure(Pa)	1094
Input Power(W)	4200
Speed(rpm)	2000
Noise(db)	74

Product Features

High Static Airflow

The ebm-papst K3G500-PB24-03 is an EC centrifugal blower for hvac systems, providing directed airflow in enclosures and cooling assemblies.

Data includes 3`380-480 V operation, airflow up to 15935 m³/h and pressure up to 1094 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, IP55 protection, PWM/0-10 V/MODBUS speed control for durable motor support. Listed noise is 74 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the K3G500-PB24-03 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

HVAC Systems

The K3G500-PB24-03 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Frequently Asked Questions

What supply voltage does the K3G500-PB24-03 require?

The supplied table lists 380-480V. Verify supply type, frequency, wiring and permissible tolerances before commissioning.

How can noise be managed when using the K3G500-PB24-03?

The table lists 74 dB. Use unobstructed airflow, secure mounting and suitable isolation where required.

Is inventory stable for the K3G500-PB24-03?

The workbook marks it In Stock, but quantity and lead time should be reconfirmed at quotation because availability can change.

Related Products

K3G450-PB29-N1/F01 | ebm-papst 3~380-480V 6800W EC Centrifugal Fan for Air Handling

Specified for Air Handling, the ebm-papst K3G450-PB29-N1/F01 is a 380-480V EC backward-curved centrifugal fan, identified by a listed pressure capability of 2,100 Pa. This assists electrical and mechanical review.

K3G560-PC10-N1/F01 | ebm-papst 3~380-480V 5950W EC Centrifugal Fan for Air Handling

Configured for Air Handling, the ebm-papst K3G560-PC10-N1/F01 is a 380-480V EC backward-curved centrifugal fan, with a listed airflow of 21,025 m³/h. It provides a practical sizing reference.

K3G450-PA31-03/G02 | ebm-papst 3~380-480V 4450W EC Centrifugal Fan for Air Handling

Selected for Air Handling, the ebm-papst K3G450-PA31-03/G02 is a 380-480V EC backward-curved centrifugal fan, featuring a listed pressure capability of 1,600 Pa. It supports replacement and design review.

K3G500-PC16-N1/F01 | ebm-papst 3~380-480V 7000W EC Centrifugal Fan for Air Handling

Applied in Air Handling, the ebm-papst K3G500-PC16-N1/F01 is a 380-480V EC backward-curved centrifugal fan, distinguished by a listed pressure capability of 1,800 Pa. The rating clarifies its operating profile.

K3G450-AQ24-01 | ebm-papst 3~380-480V 2730W EC Centrifugal Fan for Air Handling

Designed for Air Handling, the ebm-papst K3G450-AQ24-01 is a 380-480V EC backward-curved centrifugal fan, whose supplied data highlights a documented speed of 2,040 rpm. It provides a practical sizing reference.

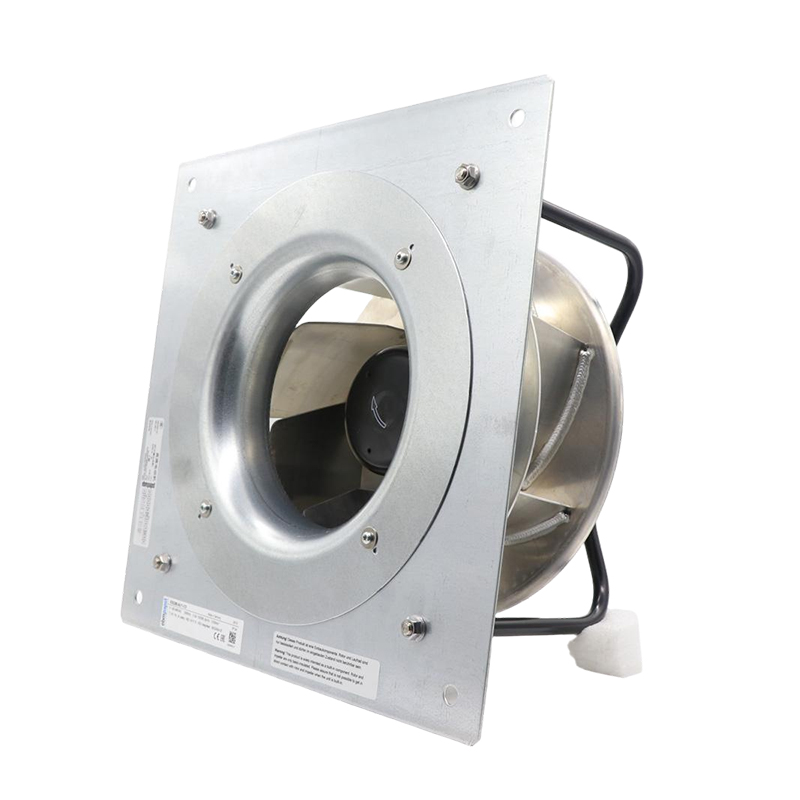

K3G280-AU06-B2 | ebm-papst 1~ 200-277V 715W EC Centrifugal Fan for Air Handling
