Home > Products > By type > Centrifugal Fans > K3G560-AP23-01 | ebm-papst 3~380-480V 3000W EC Centrifugal Fan for Air Handling

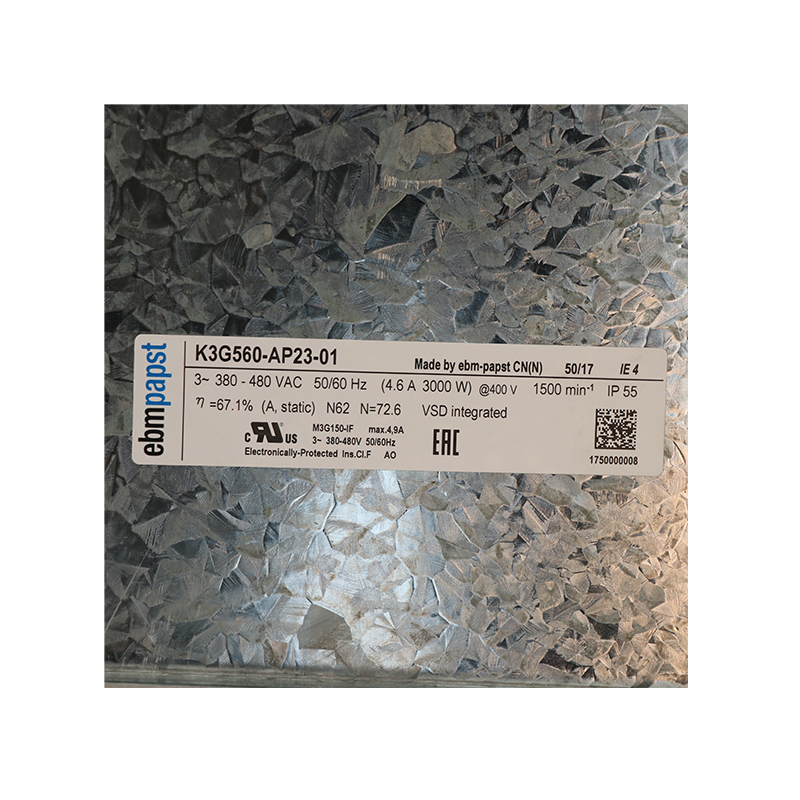

K3G560-AP23-01 ebm-papst Centrifugal Fan

K3G560-AP23-01 | ebm-papst 3~380-480V 3000W EC Centrifugal Fan for Air Handling
K3G560-AP23-01 | ebm-papst 3~380-480V 3000W EC Centrifugal Fan for Air Handling
Brand :
ebmpapst
Model:
K3G560-AP23-01 | ebm-papst 3~380-480V 3000W EC Centrifugal Fan for Air Handling
Type:
Centrifugal Fans
Industry:
HVAC & Ventilation
Description:

Configured for Air Handling, the ebm-papst K3G560-AP23-01 is a 380-480V EC backward-curved centrifugal fan, centered on a documented speed of 1,500 rpm. This helps guide installation planning.

Datasheet:
K3G560-AP23-01 | ebm-papst 3~380-480V 3000W EC Centrifugal Fan for Air Handling Datasheet (Pdf)

Product Features

Rated Voltage(V)3`380-480
Size(mm)560
Max.Air Flow(m³/h)9975
Max.Pressure(Pa)720
Input Power(W)3000
Speed(rpm)1500
Noise(db)72

Product Features

High Static Airflow

The ebm-papst K3G560-AP23-01 is an EC centrifugal blower for hvac systems, providing directed airflow in enclosures and cooling assemblies.

Data includes 3`380-480 V operation, airflow up to 9975 m³/h and pressure up to 720 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, PWM/0-10 V/MODBUS speed control for durable motor support. Listed noise is 72 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the K3G560-AP23-01 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

HVAC Systems

The K3G560-AP23-01 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Product Insights

AC to EC Replacement — K3G Compact EC Centrifugal

The ebm-papst K3G560-AP23-01 from the Compact EC Centrifugal series is a direct energy-saving replacement for legacy AC fans including R4D, R2D. Key benefits:

  • 35-50% energy savings — EC motor variable speed matches airflow demand precisely
  • Identical mm mounting — no ductwork modification needed
  • 0-10V/PWM speed control — integrates with Building Management Systems
  • 40,000+ hour bearing life — double the typical AC fan lifespan

K3G EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

K3G Series Comparison — K3G560-AP23-01 vs Variants

How the K3G560-AP23-01 compares to nearby K3G series variants:

ModelK3G097-AK34-43K3G190-RD45-03K3G250-AV29-B2K3G250-PR17-W9
Air Flow————
Power— W— W— W— W
Noise— dB— dB— dB— dB
Size— mm— mm— mm— mm

All K3G series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — K3G560-AP23-01 Compact EC Centrifugal

Data Center CRAH/CRAC Units: The K3G560-AP23-01 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

How can noise be managed when using the K3G560-AP23-01?

The table lists 72 dB. Use unobstructed airflow, secure mounting and suitable isolation where required.

What supply voltage does the K3G560-AP23-01 require?

The supplied table lists 380-480V. Verify supply type, frequency, wiring and permissible tolerances before commissioning.

Why choose the K3G560-AP23-01 for Air Handling?

Its documented 380-480V EC backward-curved centrifugal fan configuration provides a traceable match for projects whose electrical and airflow requirements align with the model data.
