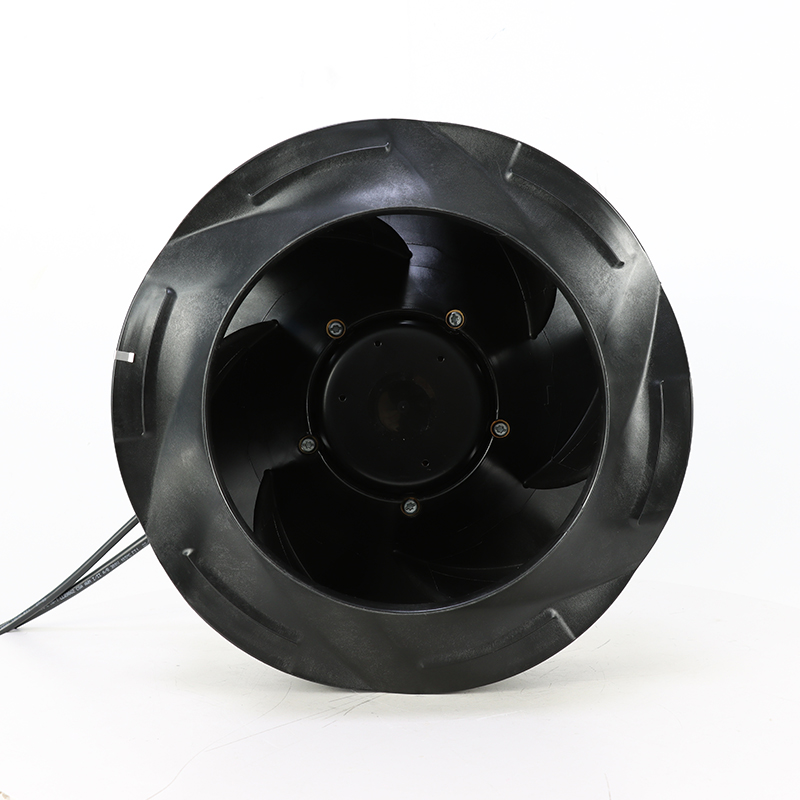

R3G310-RR05-01 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: R3G310-RR05-01 | ebm-papst 1~ 200-277V 500W Centrifugal Fan for Air Purification

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Intended for Air Purification, the ebm-papst R3G310-RR05-01 is a 200-277V EC backward-curved centrifugal fan, with a focus on a listed pressure capability of 700 Pa. It gives engineers a clear comparison point.

Datasheet:: R3G310-RR05-01 | ebm-papst 1~ 200-277V 500W Centrifugal Fan for Air Purification Datasheet (Pdf)

Product Features

Rated Voltage(V)	1~ 200-277
Size(mm)	310
Max.Air Flow(m³/h)	3680
Max.Pressure(Pa)	700
Input Power(W)	500
Speed(rpm)	2360
Noise(db)	65

Product Features

Efficient EC Cooling

R3G310-RR05-01 is an ebm-papst EC centrifugal fan for HVAC and Ventilation, where controlled heat removal and airflow management must match the actual duty point. Its model-specific format supports OEM builds, retrofit planning and replacement sourcing.

Documented selection points include 1~ 200-277 V supply, 500 W input, 310 mm size, up to 3680 m3/h airflow. These values support electrical, envelope and duty-point comparison.

For procurement, verify voltage, duty point, dimensions, connector and mounting. Correct sizing and clear airflow paths support stable operation, controlled noise and long service life. Confirm speed control, IP protection and approvals in the exact-model datasheet. Service access and clean inlets help protect cooling performance over time.

Application Industry

HVAC Systems

Applied in HVAC and ventilation equipment to move and circulate air through the system. This industrial fan supports heat exchange, indoor-air management and reliable operation of climate-control equipment.

Product Insights

AC to EC Replacement — R3G RadiPac EC Centrifugal

The ebm-papst R3G310-RR05-01 from the RadiPac EC Centrifugal series is a direct energy-saving replacement for legacy AC fans including R4D, R2D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

R3G EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

R3G Series Comparison — R3G310-RR05-01 vs Variants

How the R3G310-RR05-01 compares to nearby R3G series variants:

Model	R3G630-PC08-03	R3G190-RC05-03	R3G220-RC05-03	R3G220-RC09-08
Air Flow	12470	—	—	—
Power	4250 W	— W	— W	— W
Noise	74 dB	— dB	— dB	— dB
Size	630 mm	— mm	— mm	— mm

All R3G series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — R3G310-RR05-01 RadiPac EC Centrifugal

Data Center CRAH/CRAC Units: The R3G310-RR05-01 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

How can noise be managed when using the R3G310-RR05-01?

The table lists 65 dB. Use unobstructed airflow, secure mounting and suitable isolation where required.

What should be inspected if airflow drops on the R3G310-RR05-01?

Check for blocked airflow paths, incorrect supply, loose wiring, abnormal rotation or system resistance before consulting the exact service documentation.

Why choose the R3G310-RR05-01 for Air Purification?

Its documented 200-277V EC backward-curved centrifugal fan configuration provides a traceable match for projects whose electrical and airflow requirements align with the model data.

Which equipment can use the R3G310-RR05-01?

It is listed for Air Purification. Confirm voltage, duty point, dimensions and mounting against the equipment requirements before selection.
