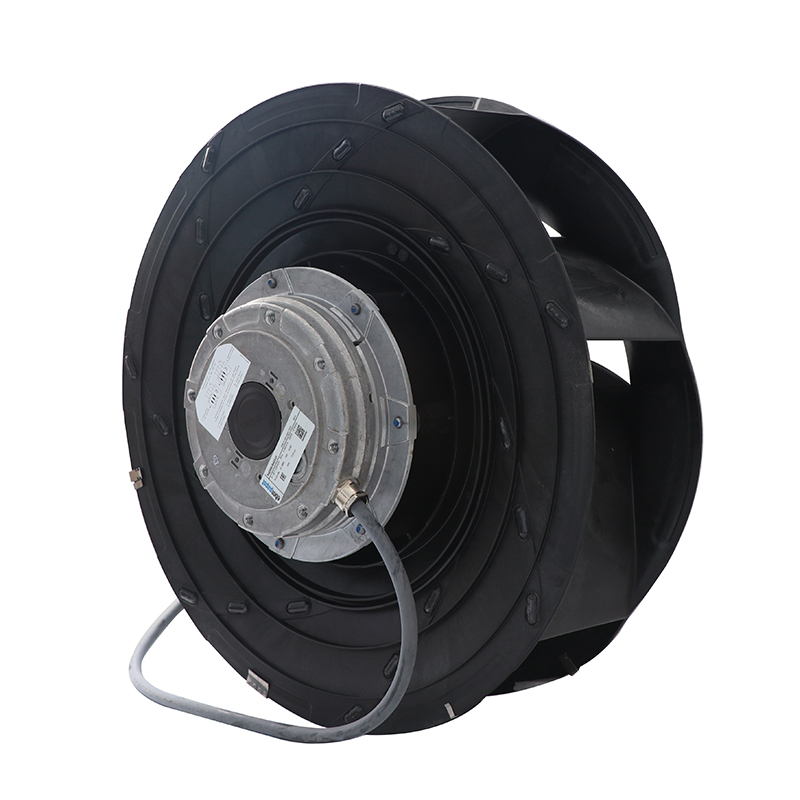

R4D500-RA03-01 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: R4D500-RA03-01 | ebm-papst 400V 1520W Centrifugal Fan for Automation

Type:: Centrifugal Fans

Industry:: Automation

Description:: Configured for Automation, the ebm-papst R4D500-RA03-01 is a 400 V AC backward-curved centrifugal fan, identified by a listed airflow of 6,040 m³/h. This assists electrical and mechanical review.

Datasheet:: R4D500-RA03-01 | ebm-papst 400V 1520W Centrifugal Fan for Automation Datasheet (Pdf)

Product Features

Rated Voltage(V)	400
Size(mm)	500
Max.Air Flow(m³/h)	6040
Max.Pressure(Pa)	650
Input Power(W)	1520
Speed(rpm)	1370
Noise(db)	73

Product Features

Reliable AC Cooling

Designed for Automation, the ebm-papst R4D500-RA03-01 AC centrifugal fan provides a defined platform for controlled heat removal and airflow management. It suits OEM equipment and service replacement when checked against the exact drawing and operating curve.

Documented selection points include 400 V supply, 1520 W input, 500 mm size, up to 6040 m3/h airflow. These values support electrical, envelope and duty-point comparison.

For procurement, verify voltage, duty point, dimensions, connector and mounting. Correct sizing and clear airflow paths support stable operation, controlled noise and long service life. Confirm speed control, IP protection and approvals in the exact-model datasheet. The listed ratings help buyers screen compatibility before final duty-point review.

Application Industry

Drive Systems

Used in inverter and drive systems to remove heat from power electronics during industrial operation. Consistent airflow helps protect components and supports dependable machine availability.

Frequently Asked Questions

Is inventory stable for the R4D500-RA03-01?

The workbook marks it In Stock, but quantity and lead time should be reconfirmed at quotation because availability can change.

Does the R4D500-RA03-01 support speed control?

Control capability and input method must be confirmed in the exact-model datasheet and wiring diagram; do not infer them from the fan family alone.

What performance data is available for the R4D500-RA03-01?

The supplied table lists 6,040 m³/h, 650 Pa, 1,370 rpm; use the exact datasheet for the complete operating curve.
