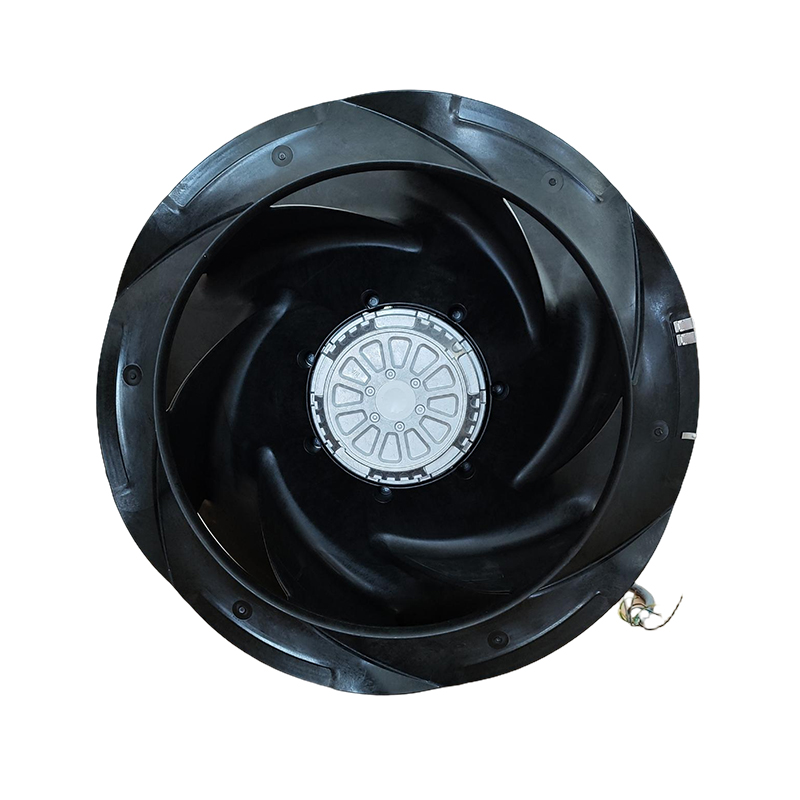

R4D560-FB13-01 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: R4D560-FB13-01 | ebm-papst 400V 3000W Centrifugal Fan for Automation

Type:: Centrifugal Fans

Industry:: Automation

Description:: Used in Automation, ebm-papst R4D560-FB13-01 is a 400 V AC backward-curved centrifugal fan, noted for a listed airflow of 16,250 m³/h. It supports replacement and design review. Its documented data supports integration planning.

Datasheet:: R4D560-FB13-01 | ebm-papst 400V 3000W Centrifugal Fan for Automation Datasheet (Pdf)

Product Features

Rated Voltage(V)	400
Size(mm)	560
Max.Air Flow(m³/h)	16250
Max.Pressure(Pa)	815
Input Power(W)	3000
Speed(rpm)	1630
Noise(db)	74

Product Features

Reliable AC Cooling

Designed for Automation, the ebm-papst R4D560-FB13-01 AC centrifugal fan provides a defined platform for controlled heat removal and airflow management. It suits OEM equipment and service replacement when checked against the exact drawing and operating curve.

Documented selection points include 400 V supply, 3000 W input, 560 mm size, up to 16250 m3/h airflow. These values support electrical, envelope and duty-point comparison.

For procurement, verify voltage, duty point, dimensions, connector and mounting. Correct sizing and clear airflow paths support stable operation, controlled noise and long service life. Confirm speed control, IP protection and approvals in the exact-model datasheet.

Application Industry

Industrial Automation

Designed for automation equipment, machine tools and control systems, helping remove heat from motors and electronics. The ebm-papst fan supports equipment cooling and reliable production operation.

Frequently Asked Questions

Is the R4D560-FB13-01 easy to maintain?

Provide service access, keep the airflow path clean, inspect wiring and mounting, and investigate abnormal noise or vibration before continued use.

What distinguishes the R4D560-FB13-01 from a general-purpose fan?

Its AC backward-curved centrifugal fan configuration and a listed airflow of 16,250 m³/h provide model-specific criteria for matching Automation systems.

Is the R4D560-FB13-01 suitable for high-reliability cooling?

It can be evaluated for demanding service using the documented ratings, installation limits and preventive-maintenance plan for the application.

What compliance information is supplied for the R4D560-FB13-01?

The workbook marks the product RoHS Compliant. Obtain the exact-model declaration and any project-specific approvals required by the destination market.
