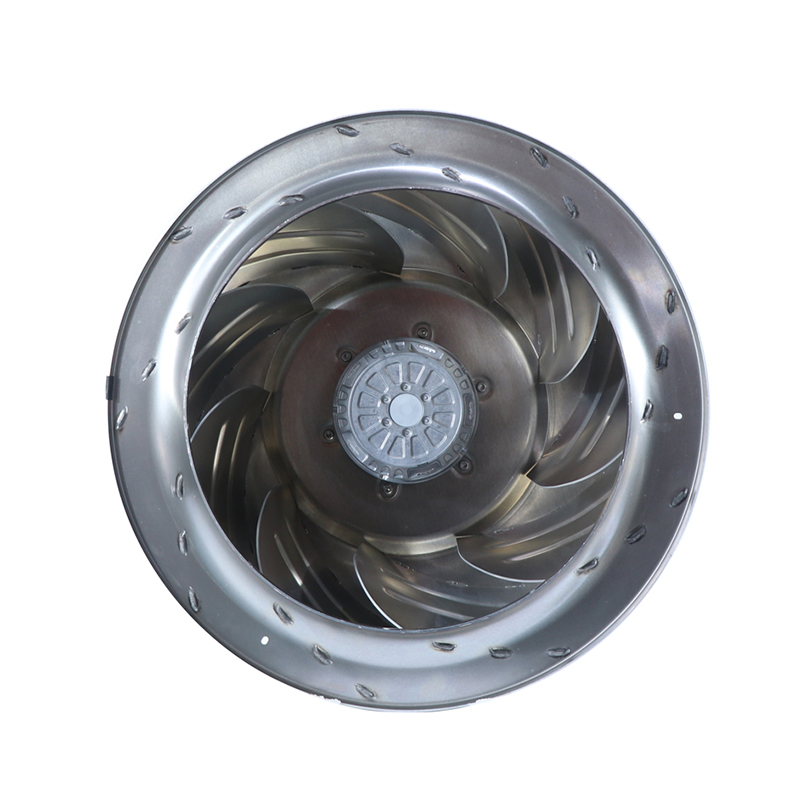

R6D560-AH05-01 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: R6D560-AH05-01 | ebm-papst 230V 780W Centrifugal Fan for Automation

Type:: Centrifugal Fans

Industry:: Automation

Description:: Designed for Automation, the ebm-papst R6D560-AH05-01 is a 230 V AC backward-curved centrifugal fan, featuring a listed airflow of 8,310 m³/h. It supports replacement and design review.

Datasheet:: R6D560-AH05-01 | ebm-papst 230V 780W Centrifugal Fan for Automation Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	560
Max.Air Flow(m³/h)	8310
Max.Pressure(Pa)	320
Input Power(W)	780
Speed(rpm)	890
Noise(db)	61

Product Features

Reliable AC Cooling

Designed for Automation, the ebm-papst R6D560-AH05-01 AC centrifugal fan provides a defined platform for controlled heat removal and airflow management. It suits OEM equipment and service replacement when checked against the exact drawing and operating curve.

Documented selection points include 230 V supply, 780 W input, 560 mm size, up to 8310 m3/h airflow. These values support electrical, envelope and duty-point comparison.

For procurement, verify voltage, duty point, dimensions, connector and mounting. Correct sizing and clear airflow paths support stable operation, controlled noise and long service life. Confirm speed control, IP protection and approvals in the exact-model datasheet. It supports applications that prioritize reliable operation and maintainable design.

Application Industry

Drive Systems

Used in inverter and drive systems to remove heat from power electronics during industrial operation. Consistent airflow helps protect components and supports dependable machine availability.

Product Insights

R6D Series Comparison — R6D560-AH05-01 vs Variants

How the R6D560-AH05-01 compares to nearby R6D series variants:

All R6D series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — R6D560-AH05-01 AC Centrifugal

Condenser Cooling: The R6D560-AH05-01 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What is the representative feature of the R6D560-AH05-01?

The supplied comparison identifies a listed airflow of 8,310 m³/h; review it together with the other listed ratings rather than as a standalone selection criterion.

Does the R6D560-AH05-01 support speed control?

Control capability and input method must be confirmed in the exact-model datasheet and wiring diagram; do not infer them from the fan family alone.

What compliance information is supplied for the R6D560-AH05-01?

The workbook marks the product RoHS Compliant. Obtain the exact-model declaration and any project-specific approvals required by the destination market.

Is the R6D560-AH05-01 easy to maintain?

Provide service access, keep the airflow path clean, inspect wiring and mounting, and investigate abnormal noise or vibration before continued use.
