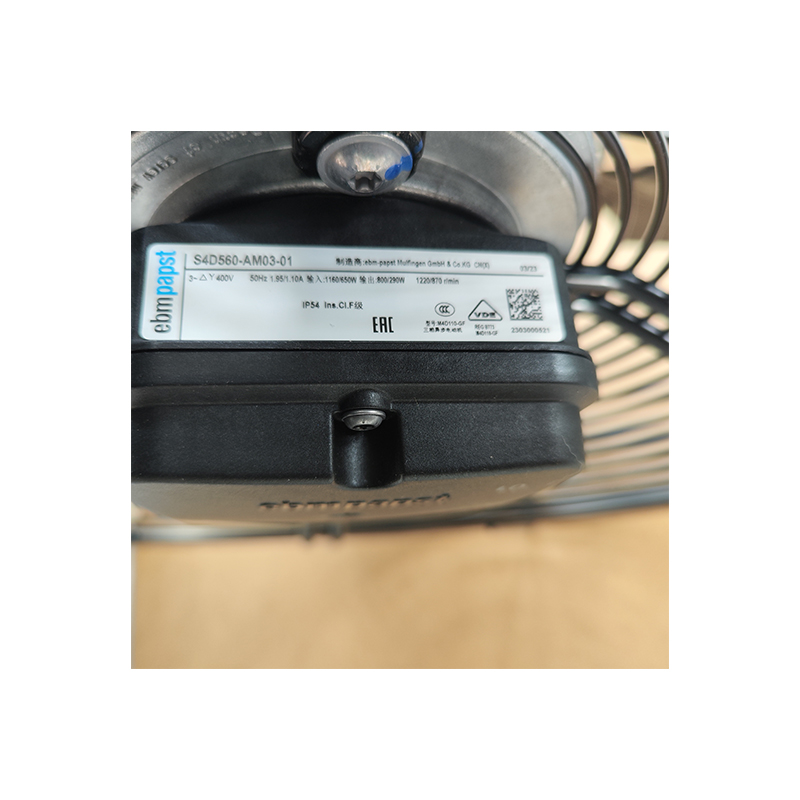

S4D560-AM03-01 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: S4D560-AM03-01 | ebm-papst 400V 650W AC Axial Fan for Refrigeration Cooling

Type:: Axial Fans

Industry:: Refrigeration Equipment

Description:: Selected for Refrigeration Cooling, ebm-papst S4D560-AM03-01 is a 400 V AC axial fan, noted for a listed airflow of 11,245 m³/h. This supports duty-point selection. Its documented data supports integration planning.

Datasheet:: S4D560-AM03-01 | ebm-papst 400V 650W AC Axial Fan for Refrigeration Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	400
Size(mm)	560
Max.Air Flow(m³/h)	11245
Max.Pressure(Pa)	140
Input Power(W)	650
Speed(rpm)	1220
Noise(db)	70

Product Features

High Airflow Cooling

The ebm-papst S4D560-AM03-01 is an AC axial fan for refrigeration cooling, providing directed airflow in enclosures and cooling assemblies.

Data includes 400 V operation, airflow up to 11245 m³/h and pressure up to 140 Pa for matching airflow to system resistance. Its integrated motor and impeller support stable ventilation. Listed noise is 70 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the S4D560-AM03-01 should be checked for wiring, mounting, duty point and ambient limits before selection. Its documented operating data supports model comparison, replacement planning and purchasing review.

Application Industry

Refrigeration Cooling

The S4D560-AM03-01 ebm-papst fan is suitable for refrigeration and cooling equipment where forced airflow supports heat rejection, component protection and stable operation under recurring thermal loads.

Frequently Asked Questions

What installation checks apply to the S4D560-AM03-01?

Verify mounting orientation, inlet and outlet clearance, fastener security, electrical connections and the exact dimensional drawing before startup.

What supply voltage does the S4D560-AM03-01 require?

The supplied table lists 400 V. Verify supply type, frequency, wiring and permissible tolerances before commissioning.

What performance data is available for the S4D560-AM03-01?

The supplied table lists 11,245 m³/h, 140 Pa, 1,220 rpm; use the exact datasheet for the complete operating curve.
