W4D500-GM03-01 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: W4D500-GM03-01 | ebm-papst 400V 720W AC Axial Fan for Air Handling Cooling

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: Intended for Air Handling Cooling, ebm-papst W4D500-GM03-01 is a 400 V AC axial fan, featuring a documented speed of 1,390 rpm. This guides model-to-system comparison. Its documented data supports integration planning.

Datasheet:: W4D500-GM03-01 | ebm-papst 400V 720W AC Axial Fan for Air Handling Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	400
Size(mm)	500
Max.Air Flow(m³/h)	6165
Max.Pressure(Pa)	140
Input Power(W)	720
Speed(rpm)	1390

Product Features

High Airflow Cooling

The ebm-papst W4D500-GM03-01 is an AC axial fan for hvac systems, serving installations that need controlled airflow across thermally loaded parts.

Data includes 400 V operation, airflow up to 6165 m³/h and pressure up to 140 Pa to support evidence-based matching of ventilation demand and pressure loss. Installed noise depends on the duty point and airflow path. The datasheet lists ball-bearing support for durable motor support. Duty-point verification and a low-obstruction inlet help maintain predictable airflow and dependable fan operation.

Its engineering data set supports model verification for installed equipment while keeping the duty point central. The resulting specification is easier to review across prototype, production and maintenance stages.

Application Industry

HVAC Systems

The W4D500-GM03-01 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Frequently Asked Questions

Is the W4D500-GM03-01 easy to maintain?

Provide service access, keep the airflow path clean, inspect wiring and mounting, and investigate abnormal noise or vibration before continued use.

Which equipment can use the W4D500-GM03-01?

It is listed for Air Handling Cooling. Confirm voltage, duty point, dimensions and mounting against the equipment requirements before selection.

How should the W4D500-GM03-01 be checked for compatibility?

Compare 500 mm, 400 V, 720 W plus mounting, connector and duty-point requirements.

What installation checks apply to the W4D500-GM03-01?

Verify mounting orientation, inlet and outlet clearance, fastener security, electrical connections and the exact dimensional drawing before startup.

Related Products

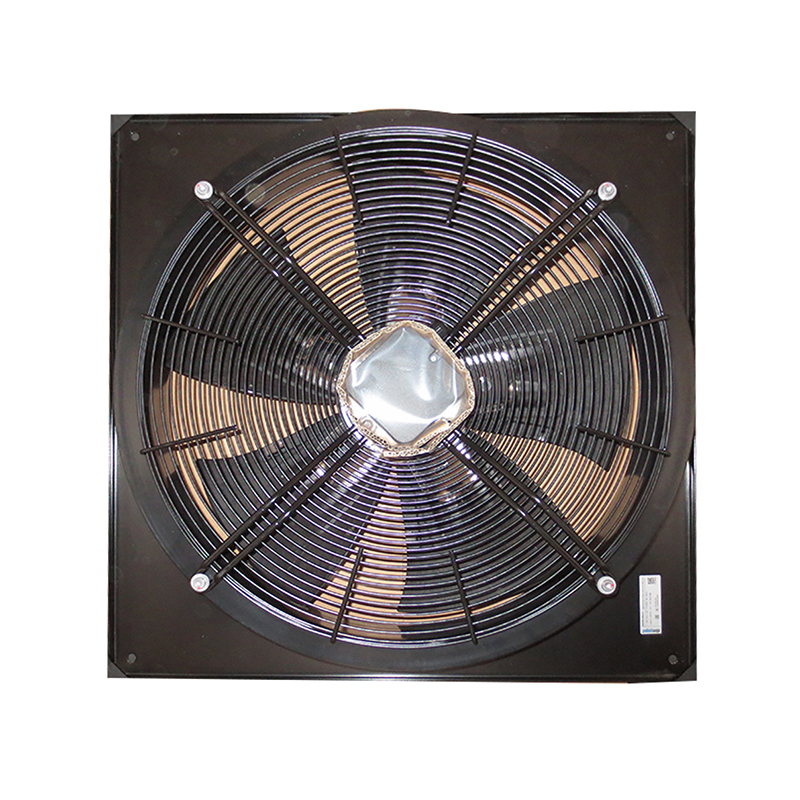

W4E500-GM03-01 | ebm-papst 230V 880W AC Axial Fan for Refrigeration Cooling
