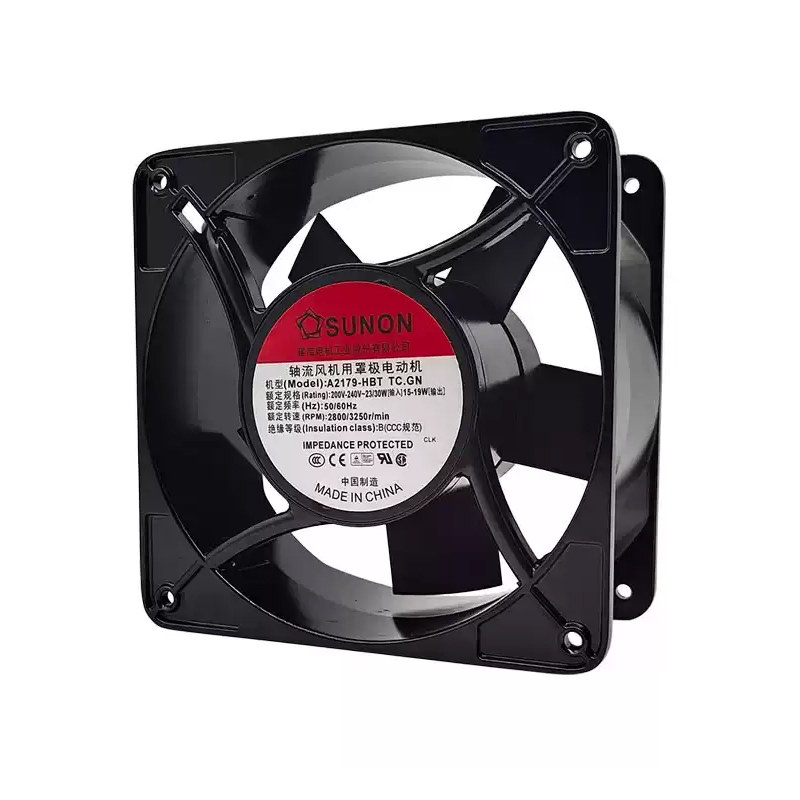

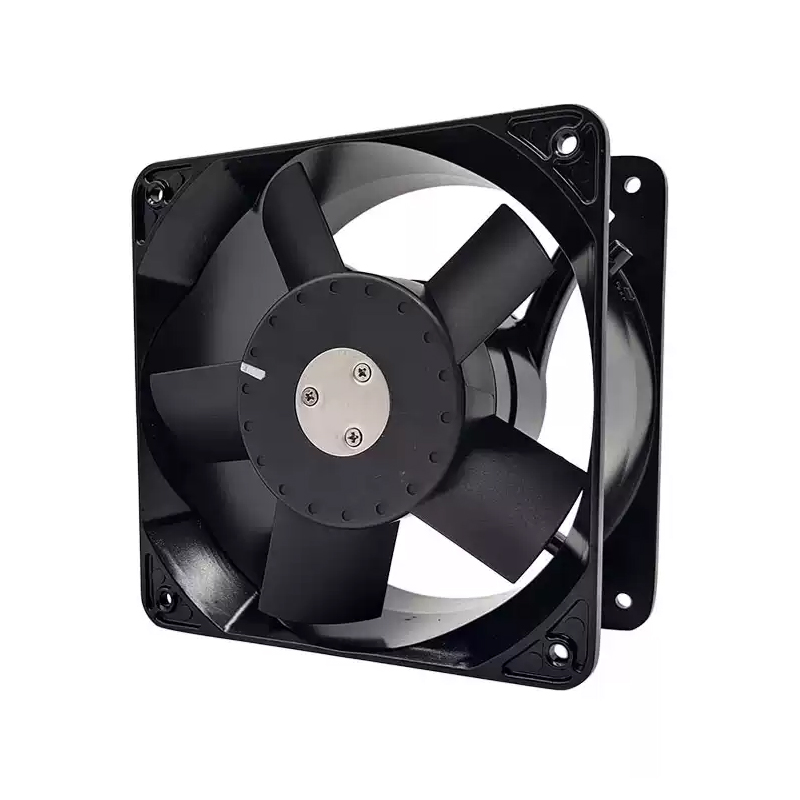

A2179-HBT TC.GN SUNON Axial Fan

Brand :: SUNON

Model:: A2179-HBT TC.GN | SUNON 230V 30W 176x176x89mm 569.5m3/h AC Axial Fan for HVAC & Ventilation

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: SUNON A2179-HBT TC.GN is a 230 VAC AC axial fan in a 176 × 176 × 89 mm format for commercial refrigeration and refrigerator cooling. Up to 569.5 m³/h is its most prominent listed performance figure. Use the documented sound level when planning airflow-path design. Obtain the applicable curve before final duty-point approval.

Datasheet:: A2179-HBT TC.GN | SUNON 230V 30W 176x176x89mm 569.5m3/h AC Axial Fan for HVAC & Ventilation Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	17617689
Max.Air Flow(m³/h)	569.5
Input Power(W)	30
Speed(rpm)	3250
Noise(db)	66

Product Features

High Airflow Cooling

SUNON A2179-HBT TC.GN is an AC axial fan for HVAC and ventilation equipment. It establishes forced airflow where passive cooling cannot adequately protect heat-producing assemblies.

The AC motor format supports direct integration with the stated supply, while the exact bearing, frequency and protection configuration remain tied to the complete part number. Rigid mounting and clear breathing space help control vibration, flow loss and the acoustic result of the complete assembly.

For A2179-HBT TC.GN integration, prioritize inlet clearance. Include environmental checks in engineering approval, and confirm the full model interface during prototype approval. This supports reliable cooling and traceable purchasing. Keep the intake free from nearby walls or bundled wiring.

Application Industry

HVAC Equipment

SUNON A2179-HBT TC.GN serves HVAC equipment. Airflow around control and heat-exchange sections helps address continuous heating and cooling loads. The fan gives OEM equipment a defined air route and supports stable air-conditioning operation. It supports reliable equipment cooling.

Ventilation Systems

SUNON A2179-HBT TC.GN serves industrial ventilation systems. Airflow around equipment air passages and thermal assemblies helps address continuous airflow demand. The fan gives OEM equipment a defined air route and supports controlled air circulation.

Heat Exchangers

SUNON A2179-HBT TC.GN serves heat-exchange equipment. Airflow around coil and exchanger surfaces helps address transferred thermal energy. The fan gives OEM equipment a defined air route and supports effective heat rejection. It supports reliable equipment cooling.

Frequently Asked Questions

Which performance figures define A2179-HBT TC.GN?

Use the listed voltage, size, 569.5 m³/h airflow, 3250 rpm, and 30 W input for preliminary comparison.

Can A2179-HBT TC.GN serve high-reliability cooling systems?

Assess reliability from the exact bearing, temperature, protection, and life data. The supplied series note alone does not confirm every suffix-specific option.

Which selection data still require confirmation for A2179-HBT TC.GN?

Confirm any missing bearing, connector, control, IP rating, life, certification, and performance-curve details for the complete part number.

Does A2179-HBT TC.GN support speed control?

Speed-control capability is not stated for this complete part number. Confirm the signal and controller requirements before use.

How can A2179-HBT TC.GN affect operating cost?

Compare its listed 30 W input with the required airflow and run time. Total savings depend on the complete system duty point.
