EF40201BX-1Q140-S99 SUNON Axial Fan

Brand :: SUNON

Model:: EF40201BX-1Q140-S99 | SUNON 12V 0.78W 40x40x20mm 18.3m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: The EF40201BX-1Q140-S99 is SUNON's 12 VDC, 40 × 40 × 20 mm DC axial fan option for telecom cabinets, base stations, and network equipment. 8200 rpm is the model's most distinctive operating parameter. Use the documented cooling specification when planning mounting verification. Validate mounting and wiring from the model drawing.

Datasheet:: EF40201BX-1Q140-S99 | SUNON 12V 0.78W 40x40x20mm 18.3m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	40x40x20mm
Max.Air Flow(m³/h)	18.3
Max.Pressure(Pa)	79.7
Input Power(W)	0.78
Speed(rpm)	8200
Noise(db)	28.5

Product Features

Reliable Fan Cooling

Designed for industrial equipment, the SUNON EF40201BX-1Q140-S99 provides DC brushless axial fan cooling in a format suited to equipment integration. It helps limit local heat buildup during operation.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market.

A dependable EF40201BX-1Q140-S99 installation starts with a review of exhaust separation. Complete system-resistance review during prototype approval to confirm compatibility, operating margin and the information needed for repeat orders. Include filters, vents and grilles when checking available airflow. The final assembly should be tested under its expected thermal load.

Application Industry

Industrial Equipment

SUNON EF40201BX-1Q140-S99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What maintenance is recommended for EF40201BX-1Q140-S99?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.

Why choose EF40201BX-1Q140-S99 over a general cooling fan?

Its documented 12 VDC rating and 8200 rpm is the model's most distinctive operating parameter. allow comparison with the required duty point without assuming unlisted options.

What noise data are available for EF40201BX-1Q140-S99?

The worksheet lists 28.5 dB. Installation distance, airflow resistance, and enclosure acoustics can change the measured result.

What airflow value is listed for EF40201BX-1Q140-S99?

The worksheet lists up to 18.3 m³/h. Verify the operating point against system resistance.

Does EF40201BX-1Q140-S99 have a documented pressure rating?

Yes. The worksheet lists up to 79.7 Pa; compare it with the system curve.

How should EF40201BX-1Q140-S99 be matched to an enclosure?

Review its 40 × 40 × 20 mm size, 18.3 m³/h airflow, 79.7 Pa pressure, system resistance, and available mounting space.

Related Products

EF80152B1-EE070-S99 | SUNON 24V 2.16W 80x80x15mm DC Axial Fan for Industrial Cooling

Built for telecom cabinets, base stations, and network equipment, SUNON EF80152B1-EE070-S99 uses a 80 × 80 × 15 mm DC blower arrangement at 24 VDC. 2.16 W input is the defining electrical load in the supplied data. Treat the frame geometry as a primary input to wiring review. Confirm environmental protection for the ordered version.

EF40100B1-1Q00-S99 | SUNON 12V 40x40x10mm DC Axial Fan for Industrial Cooling

Within telecom cabinets, base stations, and network equipment, SUNON EF40100B1-1Q00-S99 serves as a 40 × 40 × 10 mm DC blower operating at 12 VDC. Its 40 × 40 × 10 mm format is the main stated selection detail. Use the documented frame geometry when planning controller selection. Treat bearing and life data as suffix-specific.

EF50101B2-C041-S99 | SUNON 12V 1.44W 50x50x10mm DC Axial Fan for Industrial Cooling

Used in telecom cabinets, base stations, and network equipment, SUNON EF50101B2-C041-S99 is a 12 VDC DC blower in a 50 × 50 × 10 mm frame. A listed input of 1.44 W is the model's notable electrical characteristic. The recorded acoustic value should guide controller selection. Treat bearing and life data as suffix-specific.

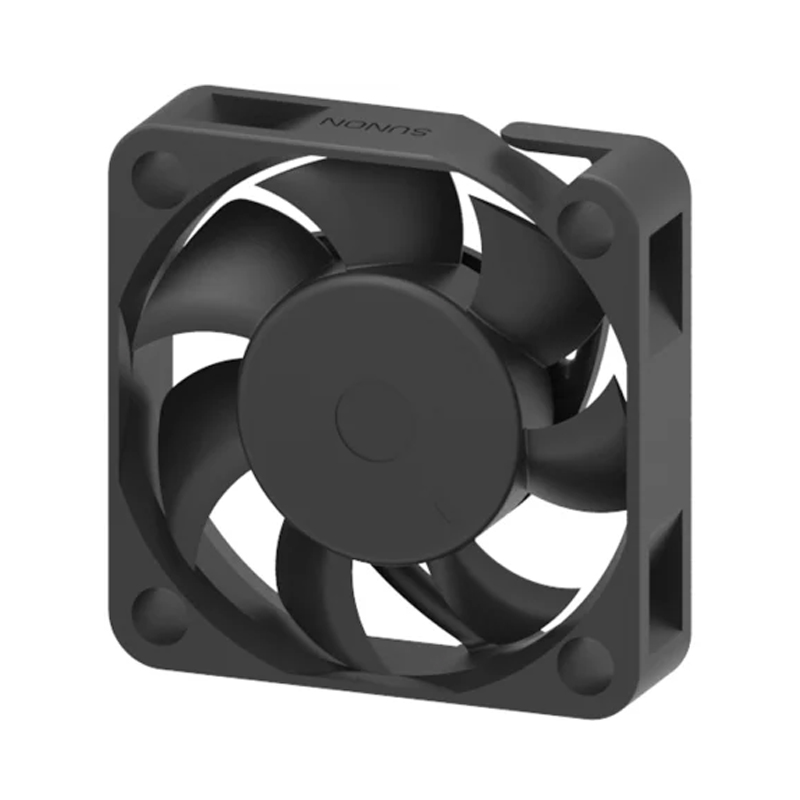

EF40101B2-1C020-S99 | SUNON 12V 0.45W 40x40x10mm 9.3m3/h DC Axial Fan for Industrial Cooling

SUNON EF40101B2-1C020-S99 combines a 40 × 40 × 10 mm DC axial fan platform with a 12 VDC rating for telecom cabinets, base stations, and network equipment. A listed noise value of 17.7 dB is the model's key differentiator. Base mounting verification on the stated technical profile. Validate mounting and wiring from the model drawing.

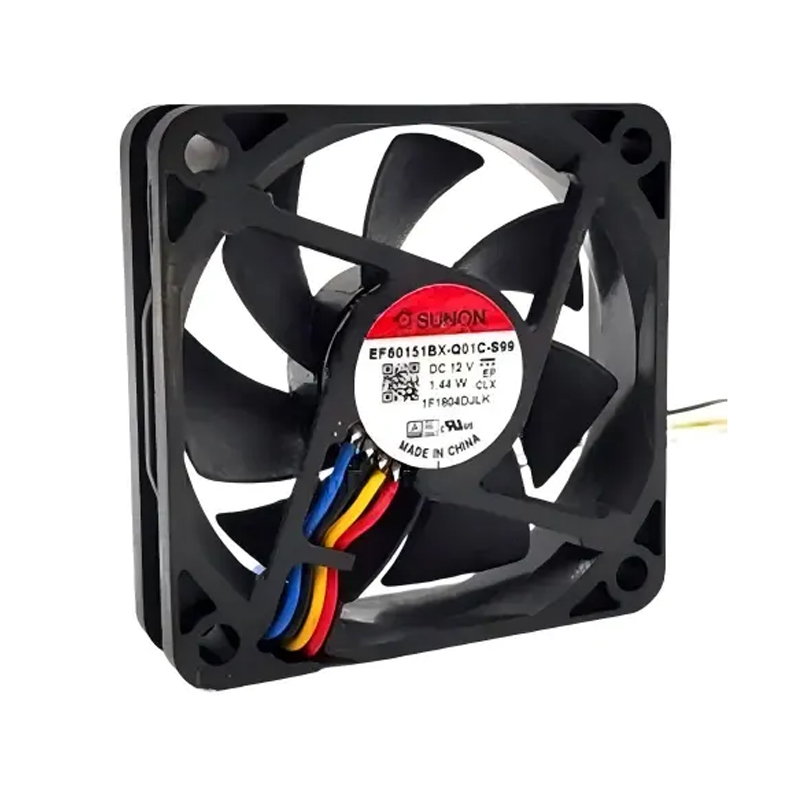

EF60151BX-Q010-S99 | SUNON 12V 1.44W 60x60x15mm DC Axial Fan for Data Center Cooling

The 12 VDC SUNON EF60151BX-Q010-S99 is a DC blower sized 60 × 60 × 15 mm for servers and data-center electronics. A listed input of 1.44 W is the model's notable electrical characteristic. For mounting verification, start with the supplied supply requirement. Validate mounting and wiring from the model drawing.

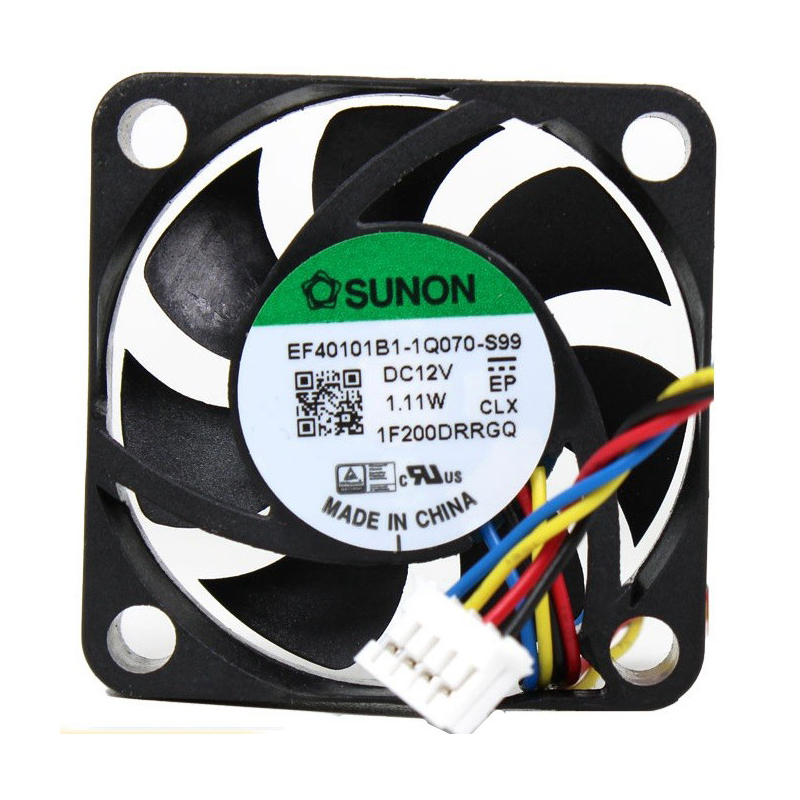

EF40101B1-1Q070-S99 | SUNON 12V 0.99W 40x40x10mm 13.6m3/h DC Axial Fan for Industrial Cooling
