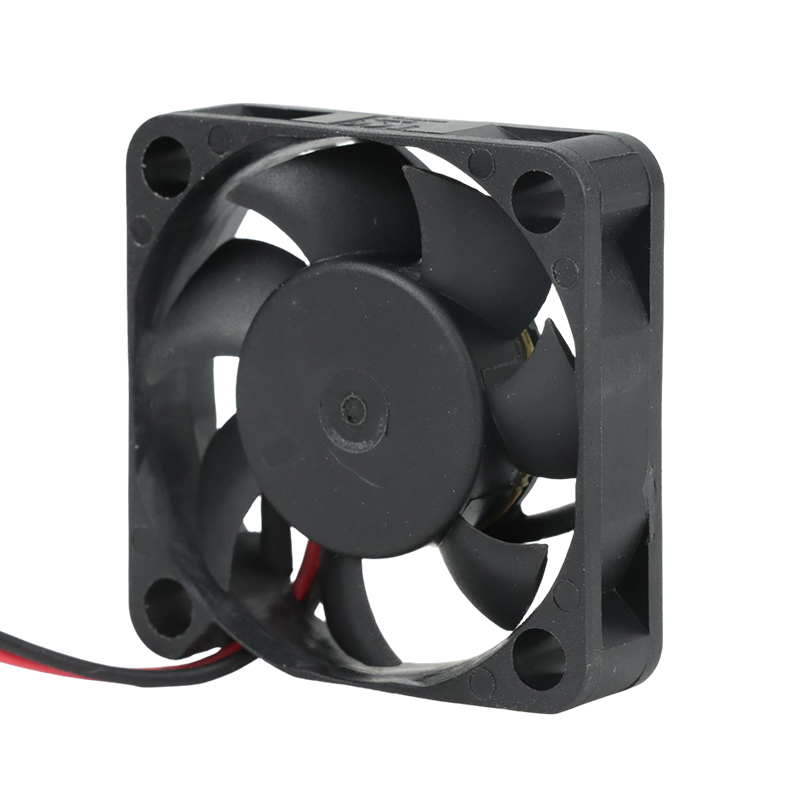

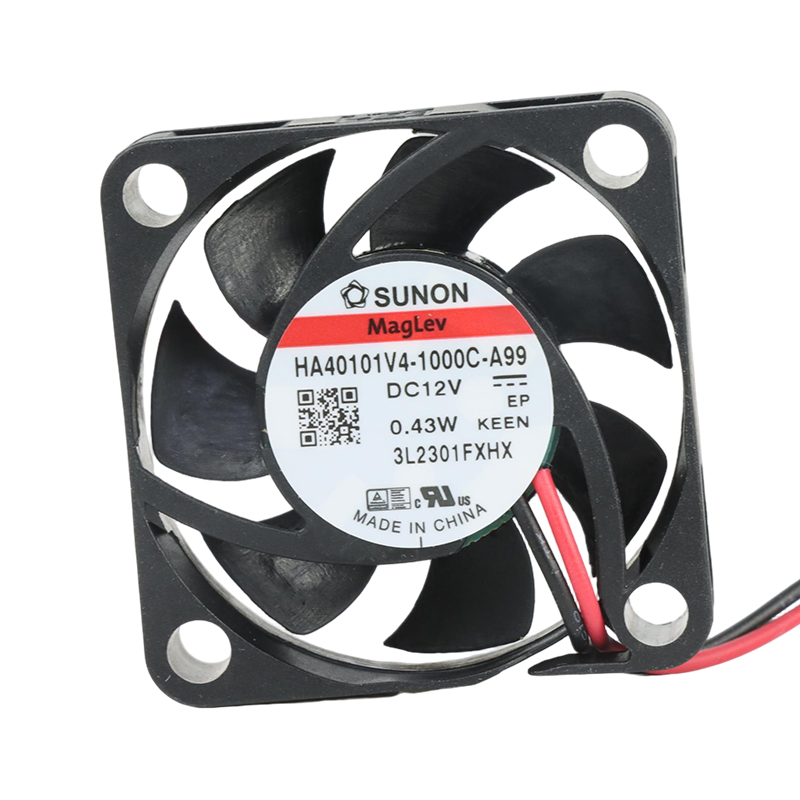

HA40101V4-1000U-A99 SUNON Axial Fan

Brand :: SUNON

Model:: HA40101V4-1000U-A99 | SUNON 12V 0.43W 40x40x10mm 9.18m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: The HA40101V4-1000U-A99 is SUNON's 12 VDC, 40 × 40 × 10 mm DC axial fan option for telecom cabinets, base stations, and network equipment. A listed noise value of 15.7 dB is the model's key differentiator. The recorded acoustic value should guide enclosure sizing. Verify bearing and signal options in the exact datasheet.

Datasheet:: HA40101V4-1000U-A99 | SUNON 12V 0.43W 40x40x10mm 9.18m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	404010
Max.Air Flow(m³/h)	9.18
Input Power(W)	0.43
Speed(rpm)	5000
Noise(db)	15.7

Product Features

MagLev Cooling

For industrial equipment, SUNON HA40101V4-1000U-A99 serves as a DC brushless axial fan. The fan supports temperature control in equipment that runs through sustained or repeated duty cycles.

SUNON's DC product line is developed around MagLev motor technology, supporting low-friction rotation, energy-conscious operation and long service life in compact formats. A smooth inlet and outlet transition reduces avoidable turbulence, helping preserve useful cooling capacity and manage installed sound.

HA40101V4-1000U-A99 is best integrated with attention to grille resistance. Engineering teams can use duty-point validation before release to verify thermal suitability and give buyers an auditable selection basis. Record the intended operating point on the system resistance curve.

Application Industry

Industrial Equipment

SUNON HA40101V4-1000U-A99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What speed is listed for HA40101V4-1000U-A99?

The listed speed is 5000 rpm. Confirm frequency, control method, and duty point for the installed system.

What should be checked if HA40101V4-1000U-A99 stops?

Verify supply, wiring, obstructions, impeller movement, and protection status. Use the model datasheet before replacement or repair.

What bearing information is confirmed for HA40101V4-1000U-A99?

The exact bearing option is not confirmed by the row-level data. Check the complete suffix in the current SUNON specification.

How should HA40101V4-1000U-A99 be matched to an enclosure?

Review its 40 × 40 × 10 mm size, 9.18 m³/h airflow, system resistance, and available mounting space.

What equipment can use HA40101V4-1000U-A99?

It is listed for telecom cabinets, base stations, and network equipment. Check dimensions, airflow, pressure, and the installation environment against the actual equipment.

Which selection data still require confirmation for HA40101V4-1000U-A99?

Confirm any missing bearing, connector, control, IP rating, life, certification, and performance-curve details for the complete part number.

Related Products

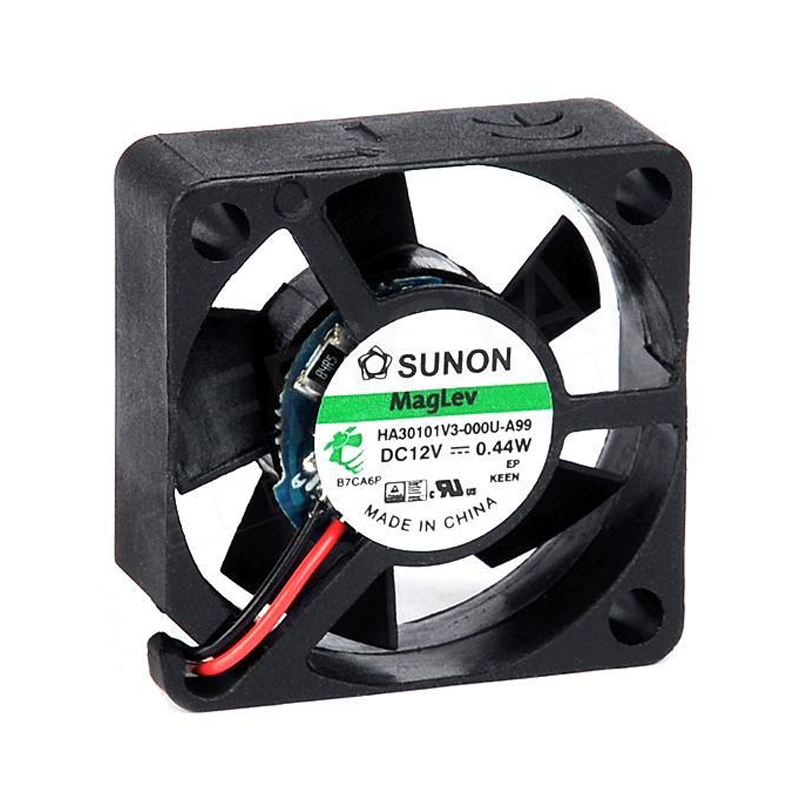

HA30101V3-1000U-A99 | SUNON 12V 0.3W 30mm 3.5m3/h 7000rpm DC Axial Fan for Industrial Cooling

The 30 mm HA30101V3-1000U-A99 brings 12 VDC DC axial fan cooling to telecom cabinets, base stations, and network equipment. A listed input of 0.3 W is the model's notable electrical characteristic. The recorded technical profile should guide controller selection. Treat bearing and life data as suffix-specific.

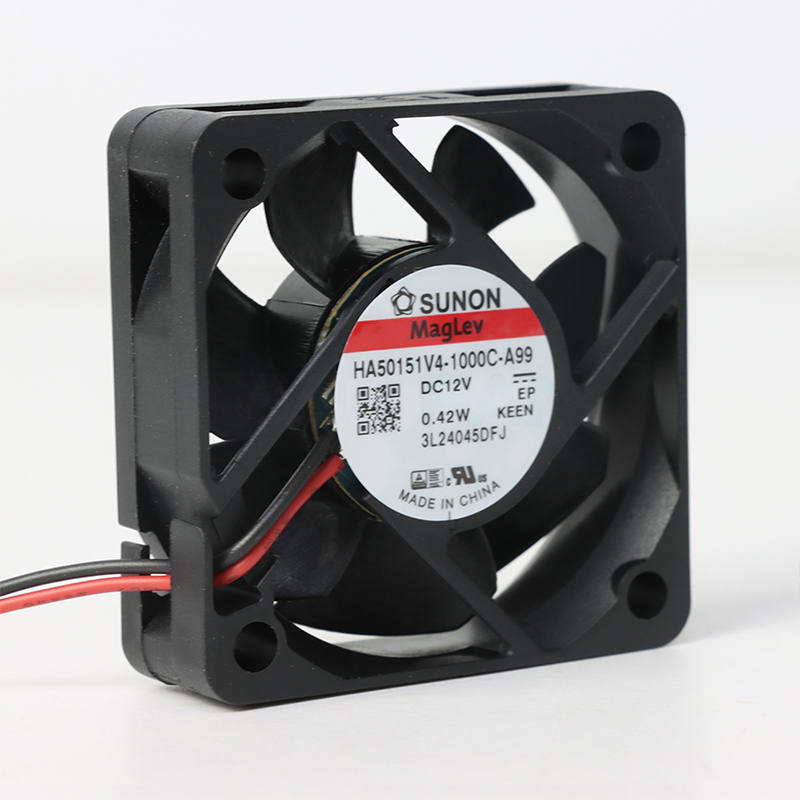

HA50151V4-1000U-A99 | SUNON 12V 0.42W 50x50x15mm 7.7m3/h DC Axial Fan for Industrial Cooling

Within telecom cabinets, base stations, and network equipment, HA50151V4-1000U-A99 provides a 50 × 50 × 15 mm, 12 VDC DC axial fan configuration. A listed noise value of 15.4 dB is the model's key differentiator. Review its dimensional envelope during system-resistance review. Use current model documentation to validate protection choices.

HA40201V4-1000U-A99 | SUNON 12V 0.42W 40x40x20mm 5.5m3/h DC Axial Fan for Industrial Cooling

The HA40201V4-1000U-A99 is SUNON's 12 VDC, 40 × 40 × 20 mm DC axial fan option for telecom cabinets, base stations, and network equipment. A listed noise value of 12.3 dB is the model's key differentiator. Review its model record during replacement evaluation. Check the full suffix before confirming connector details.

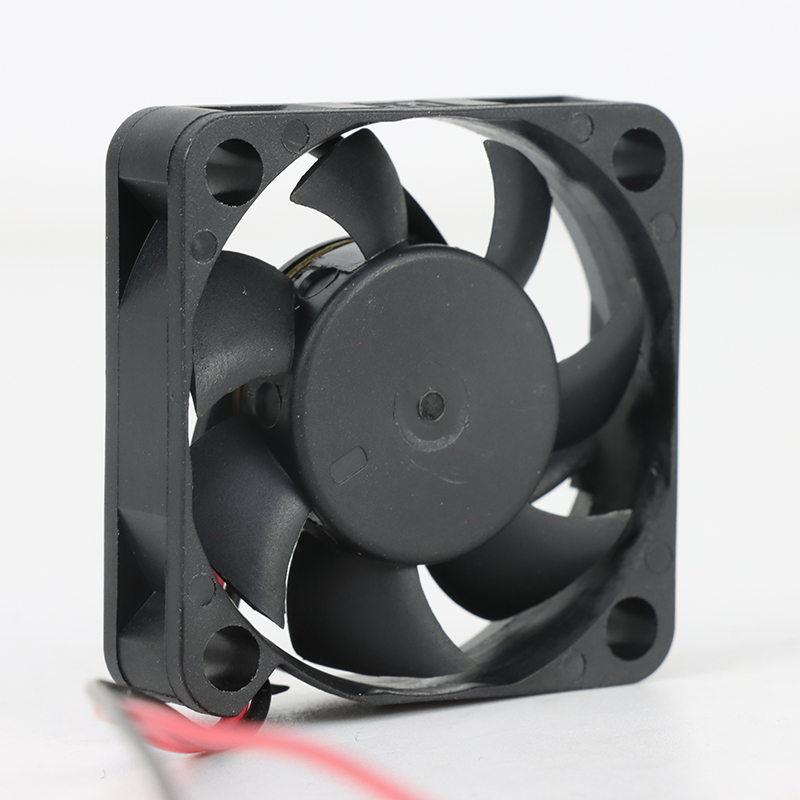

HA40101V4-000U-A99 | SUNON 12V 0.38W 40x40x10mm 9.2m3/h DC Axial Fan for Industrial Cooling

The 40 × 40 × 10 mm HA40101V4-000U-A99 brings 12 VDC DC axial fan cooling to telecom cabinets, base stations, and network equipment. A listed noise value of 15.7 dB is the model's key differentiator. Review its equipment fit during procurement comparison. Use the latest specification for frequency and tolerance limits.

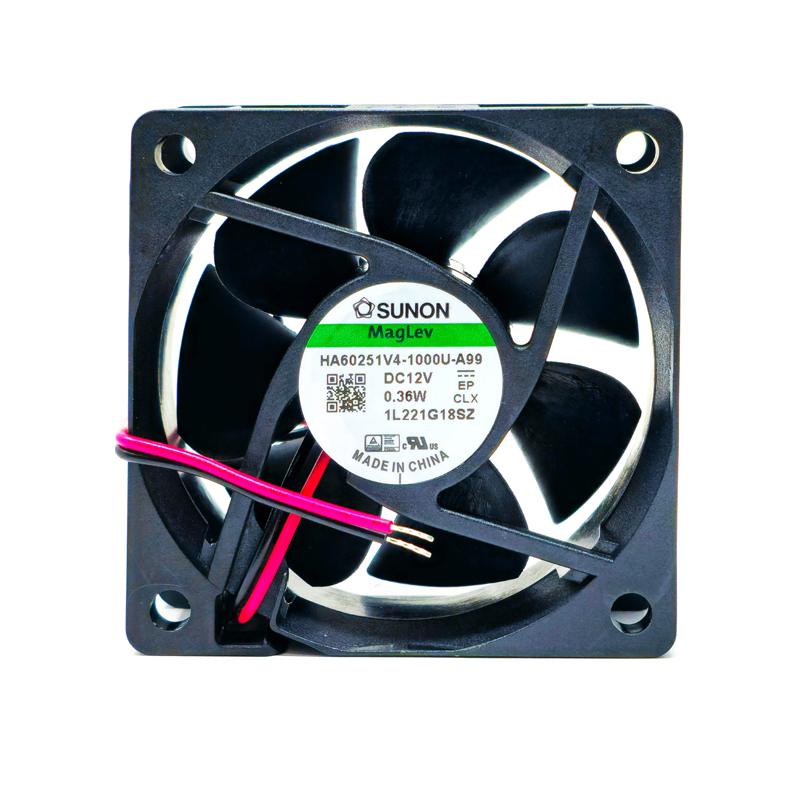

HA60251V4-1000U-A99 | SUNON 12V 240W 60x60x25mm 23.2m3/h DC Axial Fan for Industrial Cooling

Positioned for telecom cabinets, base stations, and network equipment, SUNON HA60251V4-1000U-A99 is a 12 VDC DC axial fan in a 60 × 60 × 25 mm frame. A listed noise value of 10.7 dB is the model's key differentiator. The recorded ventilation capacity should guide thermal validation. Review connector, alarm, and sensor options separately.

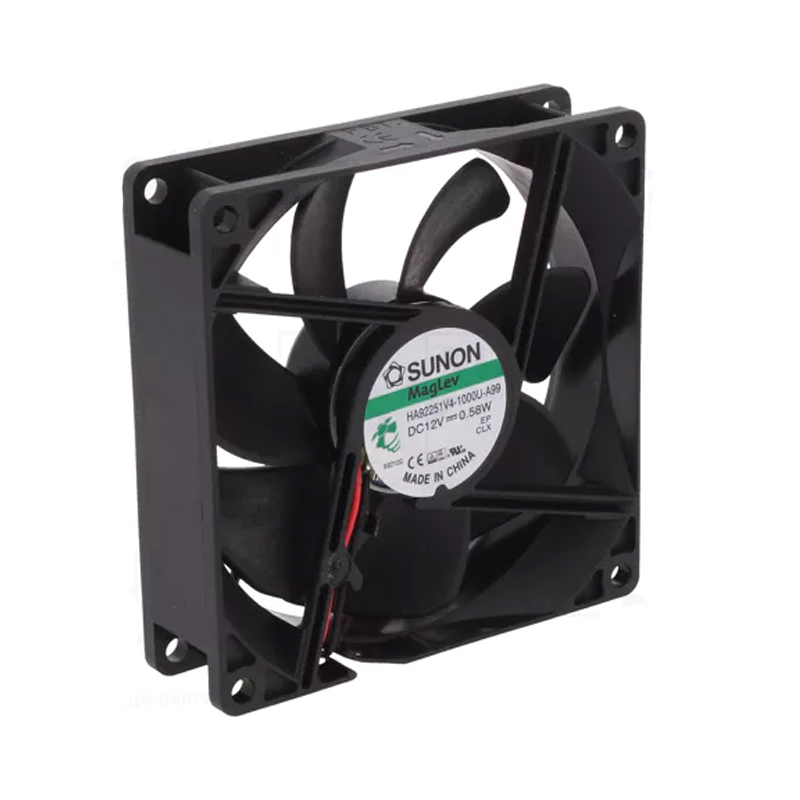

HA92251V4-1000U-A99 | SUNON 12V 0.54W 92x92x25mm 47.7m3/h DC Axial Fan for Industrial Cooling
