MF40200V2-1000U-A99 SUNON Axial Fan

Brand :: SUNON

Model:: MF40200V2-1000U-A99 | SUNON 5V 0.54W 40x40x20mm 13.1m3/h DC Axial Fan for Telecommunications

Type:: Axial Fans

Industry:: Telecommunications

Description:: Designed for telecom cabinets and network equipment, SUNON MF40200V2-1000U-A99 is a 5 VDC DC axial fan in a 40 × 40 × 20 mm frame. A listed input of 0.54 W is the model's notable electrical characteristic. Treat the ventilation capacity as a primary input to service-life planning. Check the ordering suffix before assigning control functions.

Datasheet:: MF40200V2-1000U-A99 | SUNON 5V 0.54W 40x40x20mm 13.1m3/h DC Axial Fan for Telecommunications Datasheet (Pdf)

Product Features

Rated Voltage(V)	5
Size(mm)	40x40x20mm
Max.Air Flow(m³/h)	13.1
Max.Pressure(Pa)	42.3
Input Power(W)	0.54
Speed(rpm)	6000
Noise(db)	21

Product Features

MagLev Cooling

SUNON MF40200V2-1000U-A99 is a DC brushless axial fan for telecommunications equipment. It establishes forced airflow where passive cooling cannot adequately protect heat-producing assemblies.

SUNON's DC product line is developed around MagLev motor technology, supporting low-friction rotation, energy-conscious operation and long service life in compact formats.

To integrate MF40200V2-1000U-A99 effectively, review outlet geometry at equipment level and arrange thermal-load testing within OEM validation. Confirmed system compatibility supports stable cooling and repeatable procurement. Preserve a clear discharge region to avoid unnecessary downstream turbulence. The final assembly should be tested under its expected thermal load.

Application Industry

Security Cameras

SUNON MF40200V2-1000U-A99 serves security-camera equipment. Airflow around image sensors, processors and power circuits helps address heat inside compact camera housings. The fan gives OEM equipment a defined air route and supports stable video operation.

Video Recorders

SUNON MF40200V2-1000U-A99 serves video-recording equipment. Airflow around storage, processing and power assemblies helps address continuous recording workloads. The fan gives OEM equipment a defined air route and supports reliable monitoring service.

Monitoring Equipment

SUNON MF40200V2-1000U-A99 serves security monitoring systems. Airflow around network and control electronics helps address round-the-clock equipment heat. The fan gives OEM equipment a defined air route and supports system availability. It supports reliable equipment cooling.

Frequently Asked Questions

What certification information is listed for MF40200V2-1000U-A99?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

How is MF40200V2-1000U-A99 electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.

Does MF40200V2-1000U-A99 support speed control?

Speed-control capability is not stated for this complete part number. Confirm the signal and controller requirements before use.

How should buyers confirm availability of MF40200V2-1000U-A99?

Stock and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What voltage is required by MF40200V2-1000U-A99?

The listed rating is 5 VDC. Verify polarity or mains frequency, wiring, and protection before commissioning.

Related Products

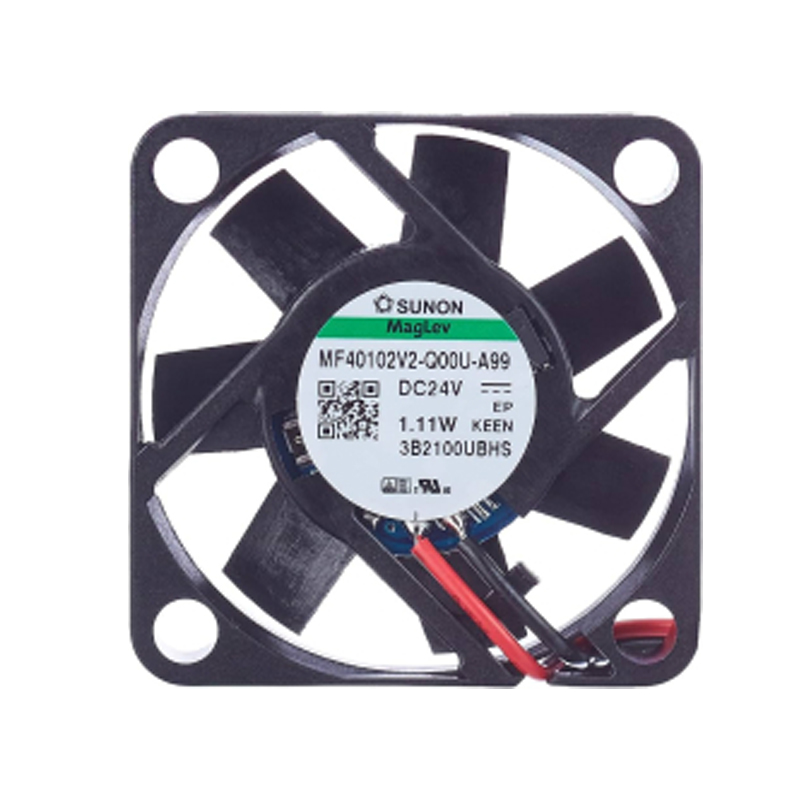

MF40102V2-Q00U-A99 | SUNON 24V 1.11W 40x40x10mm 11.9m3/h DC Axial Fan for Telecommunications

SUNON MF40102V2-Q00U-A99 is a 24 VDC DC blower in a 40 × 40 × 10 mm format for telecom cabinets and network equipment. Its 11.9 m³/h airflow rating suits the stated equipment-cooling role. Base maintenance preparation on the stated motor input. Confirm temperature and service-life limits from current data.

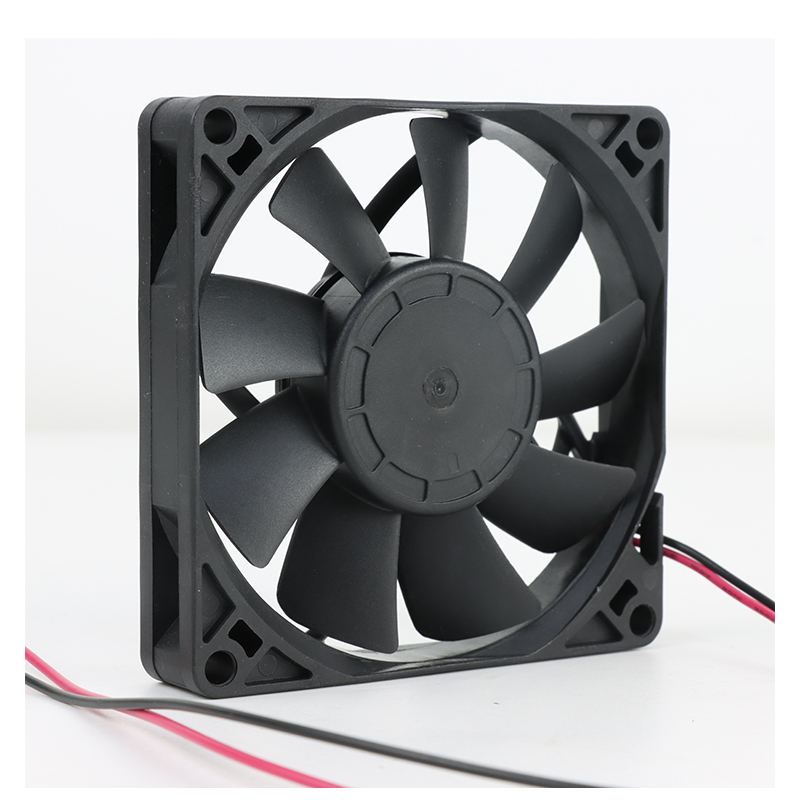

MF80152V1-1000U-A99 | SUNON 24V 1.64W 80x80x15mm 3500rpm DC Axial Fan for Telecommunications
