MF50201V1-1B00U-G99 SUNON Blower Fan

Brand :: SUNON

Model:: MF50201V1-1B00U-G99 | SUNON 12V 1.49W 50x50x20mm DC Centrifugal Blower for Telecommunications

Type:: Blower Fans

Industry:: Telecommunications

Description:: Within telecom cabinets and network equipment, SUNON MF50201V1-1B00U-G99 serves as a 50 × 50 × 20 mm DC blower operating at 12 VDC. Its 9.9 m³/h airflow rating suits the stated equipment-cooling role. For airflow-path design, start with the supplied duty-point values. Obtain the applicable curve before final duty-point approval.

Datasheet:: MF50201V1-1B00U-G99 | SUNON 12V 1.49W 50x50x20mm DC Centrifugal Blower for Telecommunications Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	50x50x20mm
Max.Air Flow(m³/h)	9.9
Max.Pressure(Pa)	164.4
Input Power(W)	1.49
Speed(rpm)	5300
Noise(db)	34.8

Product Features

Directed Air Cooling

SUNON MF50201V1-1B00U-G99 supports telecommunications equipment with DC brushless blower airflow. It is intended for installations where predictable air exchange is central to equipment stability.

SUNON's DC product line is developed around MagLev motor technology, supporting low-friction rotation, energy-conscious operation and long service life in compact formats. Rigid mounting and clear breathing space help control vibration, flow loss and the acoustic result of the complete assembly.

System designers selecting MF50201V1-1B00U-G99 should account for filter loading, then schedule prototype trials during prototype approval. This approach links equipment cooling needs with practical procurement and service decisions. Use a representative assembly rather than an unrestricted bench setup.

Application Industry

Security Cameras

SUNON MF50201V1-1B00U-G99 serves security-camera equipment. Airflow around image sensors, processors and power circuits helps address heat inside compact camera housings. The fan gives OEM equipment a defined air route and supports stable video operation.

Video Recorders

SUNON MF50201V1-1B00U-G99 serves video-recording equipment. Airflow around storage, processing and power assemblies helps address continuous recording workloads. The fan gives OEM equipment a defined air route and supports reliable monitoring service.

Monitoring Equipment

SUNON MF50201V1-1B00U-G99 serves security monitoring systems. Airflow around network and control electronics helps address round-the-clock equipment heat. The fan gives OEM equipment a defined air route and supports system availability. It supports reliable equipment cooling.

Frequently Asked Questions

What should be checked if MF50201V1-1B00U-G99 stops?

Verify supply, wiring, obstructions, impeller movement, and protection status. Use the model datasheet before replacement or repair.

What installation checks apply to MF50201V1-1B00U-G99?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.

How should MF50201V1-1B00U-G99 be matched to an enclosure?

Review its 50 × 50 × 20 mm size, 9.9 m³/h airflow, 164.4 Pa pressure, system resistance, and available mounting space.

Can MF50201V1-1B00U-G99 serve high-reliability cooling systems?

Assess reliability from the exact bearing, temperature, protection, and life data. The supplied series note alone does not confirm every suffix-specific option.

How is MF50201V1-1B00U-G99 electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.

Is MF50201V1-1B00U-G99 compatible with a replacement fan?

Match voltage, dimensions, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

Related Products

MF40100V1-1000U-G99 | SUNON 5V 0.68W 40x40x10mm 13.6m3/h DC Axial Fan for Telecommunications

SUNON MF40100V1-1000U-G99 combines a 40 × 40 × 10 mm DC axial fan platform with a 5 VDC rating for telecom cabinets and network equipment. A listed input of 0.68 W is the model's notable electrical characteristic. For maintenance preparation, start with the supplied suffix definition. Confirm temperature and service-life limits from current data.

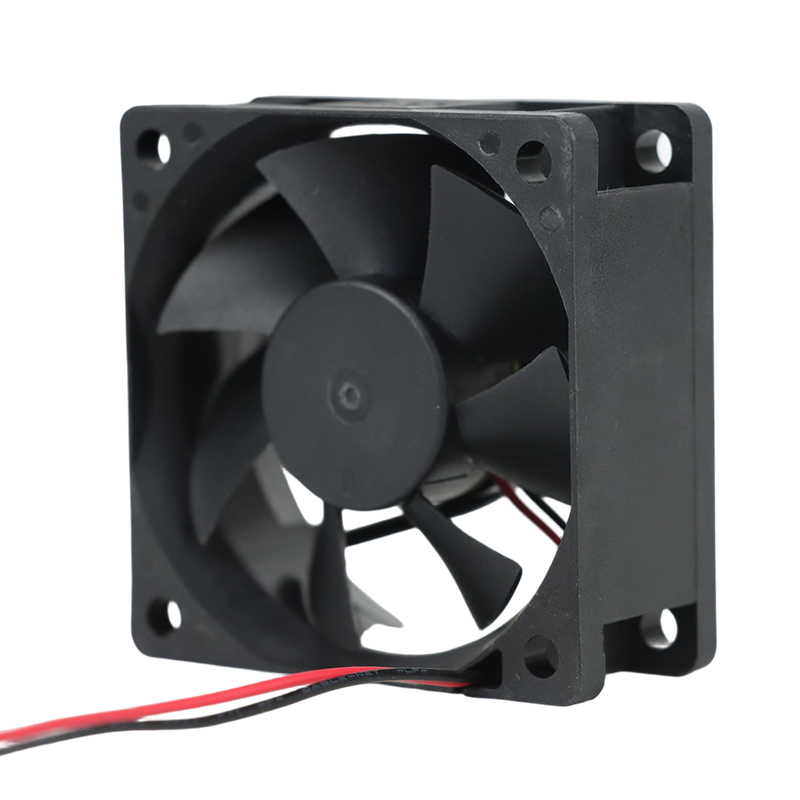

MF60252V1-1000U-G99 | SUNON 24V 1.2W 60x60x25mm 4500rpm DC Axial Fan for Telecommunications

Applied in telecom cabinets and network equipment, SUNON MF60252V1-1000U-G99 is a 24 VDC DC axial fan in a 60 × 60 × 25 mm frame. A listed input of 1.2 W is the model's notable electrical characteristic. Base airflow-path design on the stated mounting size. Obtain the applicable curve before final duty-point approval.

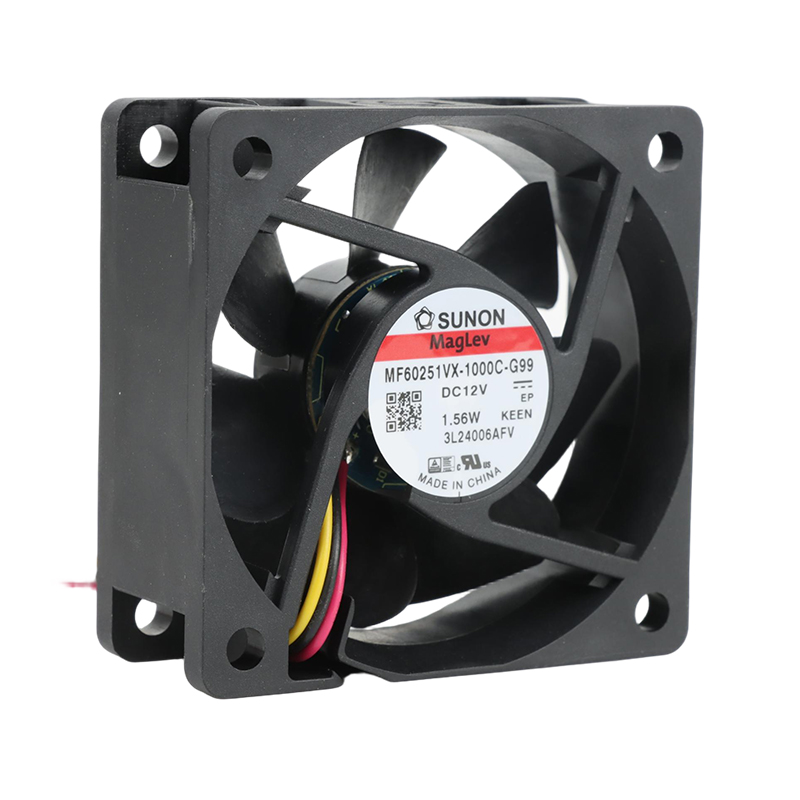

MF60251VX-1000U-G99 | SUNON 12V 1.56W 60x60x25mm 45.9m3/h DC Axial Fan for Telecommunications

SUNON MF60251VX-1000U-G99 combines a 60 × 60 × 25 mm DC axial fan platform with a 12 VDC rating for telecom cabinets and network equipment. A listed noise value of 31.2 dB is the model's key differentiator. Review its rotational rating during airflow-path design. Obtain the applicable curve before final duty-point approval.

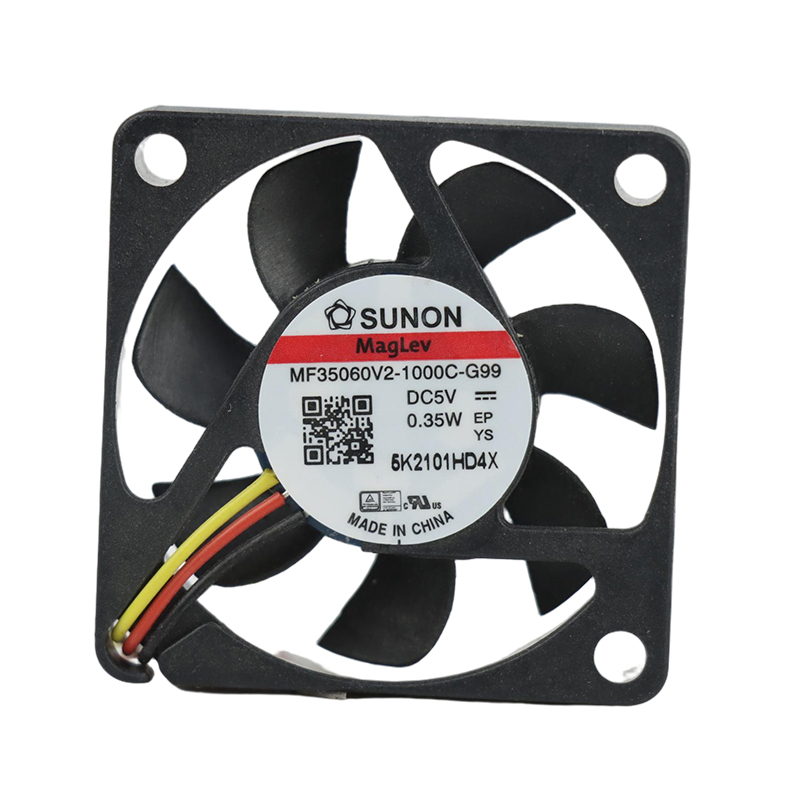

MF35060V2-1000U-G99 | SUNON 5V 0.35W 35x35x6mm 7.31m3/h DC Axial Fan for Telecommunications

SUNON configures MF35060V2-1000U-G99 as a 35 × 35 × 6 mm DC axial fan for telecom cabinets and network equipment, operating at 5 VDC. A listed input of 0.35 W is the model's notable electrical characteristic. For airflow-path design, start with the supplied pressure capability. Obtain the applicable curve before final duty-point approval.

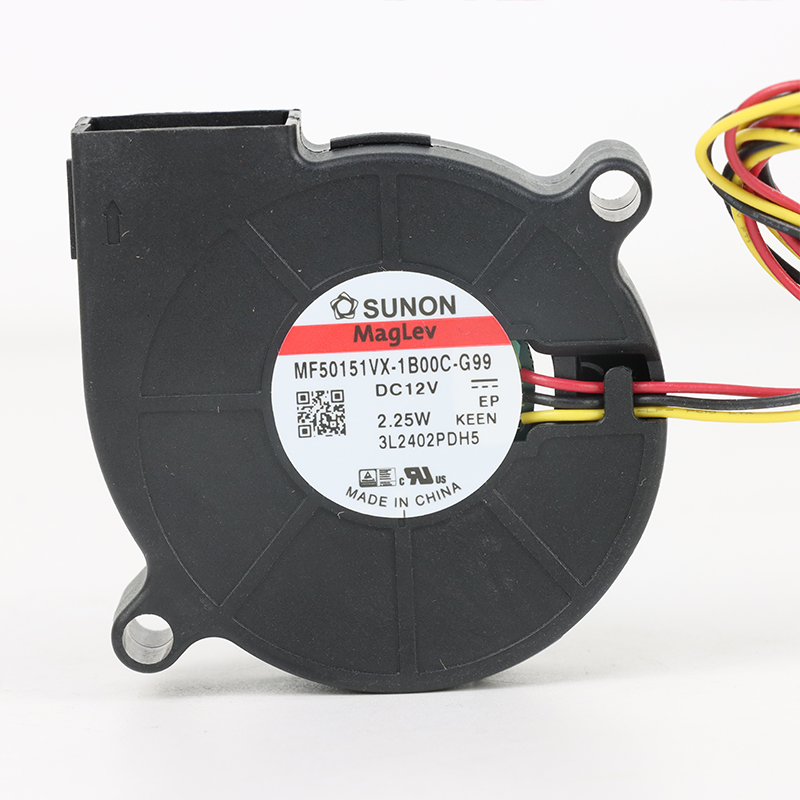

MF50151VX-1B00U-G99 | SUNON 12V 1.86W 50x50x15mm 6200rpm DC Axial Fan for New Energy
