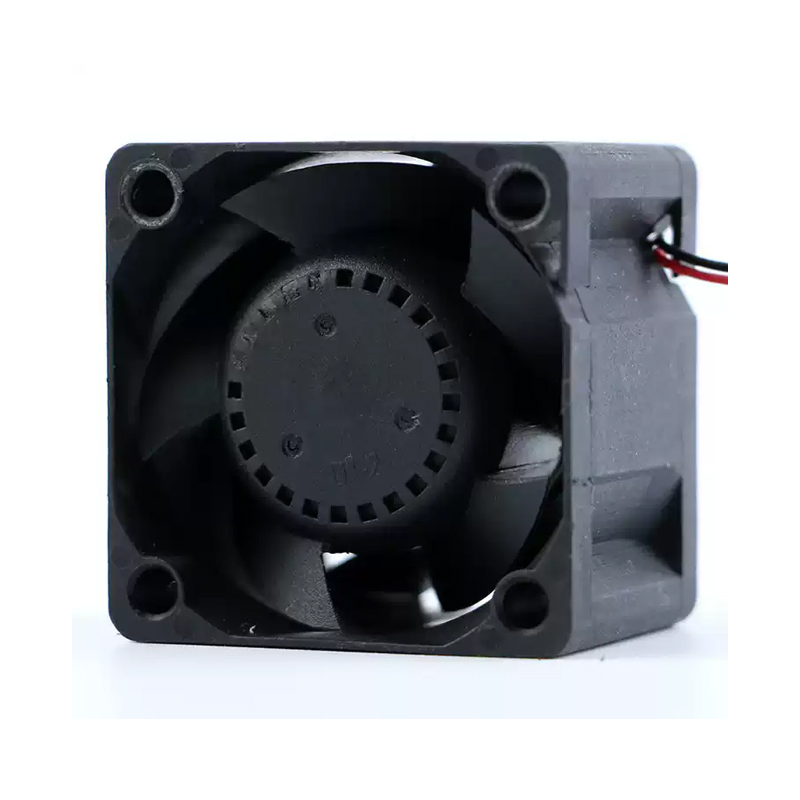

PF40281B4-10000-A9H SUNON Axial Fan

Brand :: SUNON

Model:: PF40281B4-10000-A9H | SUNON 12V 1.16W 40x40x28mm 21.7m3/h DC Axial Fan for Data Center Cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: For thermal management in servers and data-center electronics, the PF40281B4-10000-A9H provides a 12 VDC DC axial fan configuration measuring 40 × 40 × 28 mm. 9200 rpm is the model's most distinctive operating parameter. Use the documented equipment fit when planning design qualification. Match the exact part number before approving a substitute.

Datasheet:: PF40281B4-10000-A9H | SUNON 12V 1.16W 40x40x28mm 21.7m3/h DC Axial Fan for Data Center Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	40x40x28mm
Max.Air Flow(m³/h)	21.7
Max.Pressure(Pa)	149.5
Input Power(W)	1.16
Speed(rpm)	9200
Noise(db)	39.9

Product Features

Reliable Fan Cooling

SUNON PF40281B4-10000-A9H is a DC brushless axial fan for server and data-center equipment. It establishes forced airflow where passive cooling cannot adequately protect heat-producing assemblies.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market. System resistance, grille geometry and cable clearance should be reviewed together to maintain predictable air delivery.

Design approval for PF40281B4-10000-A9H should cover cable routing together with prototype trials during sourcing review. This creates a practical link between thermal validation, purchasing documentation and future servicing. Secure conductors away from the impeller and high-temperature components.

Application Industry

Server Cooling

SUNON PF40281B4-10000-A9H serves server platforms. Airflow around processors, memory and power components helps address sustained computing loads. The fan gives OEM equipment a defined air route and supports stable server operation. It supports reliable equipment cooling.

Storage Systems

SUNON PF40281B4-10000-A9H serves storage equipment. Airflow around drives, controllers and power assemblies helps address continuous data workloads. The fan gives OEM equipment a defined air route and supports reliable storage availability. It supports reliable equipment cooling.

Edge Computing

SUNON PF40281B4-10000-A9H serves edge-computing systems. Airflow around compact processing and communication modules helps address high heat density. The fan gives OEM equipment a defined air route and supports consistent thermal control. It supports reliable equipment cooling.

Data Center Equipment

SUNON PF40281B4-10000-A9H serves data-center equipment. Airflow around critical computing assemblies helps address round-the-clock heat generation. The fan gives OEM equipment a defined air route and supports infrastructure availability. It supports reliable equipment cooling.

Frequently Asked Questions

Is PF40281B4-10000-A9H compatible with a replacement fan?

Match voltage, dimensions, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

How should buyers confirm availability of PF40281B4-10000-A9H?

Stock and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What noise data are available for PF40281B4-10000-A9H?

The worksheet lists 39.9 dB. Installation distance, airflow resistance, and enclosure acoustics can change the measured result.

What airflow value is listed for PF40281B4-10000-A9H?

The worksheet lists up to 21.7 m³/h. Verify the operating point against system resistance.

What installation checks apply to PF40281B4-10000-A9H?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.
