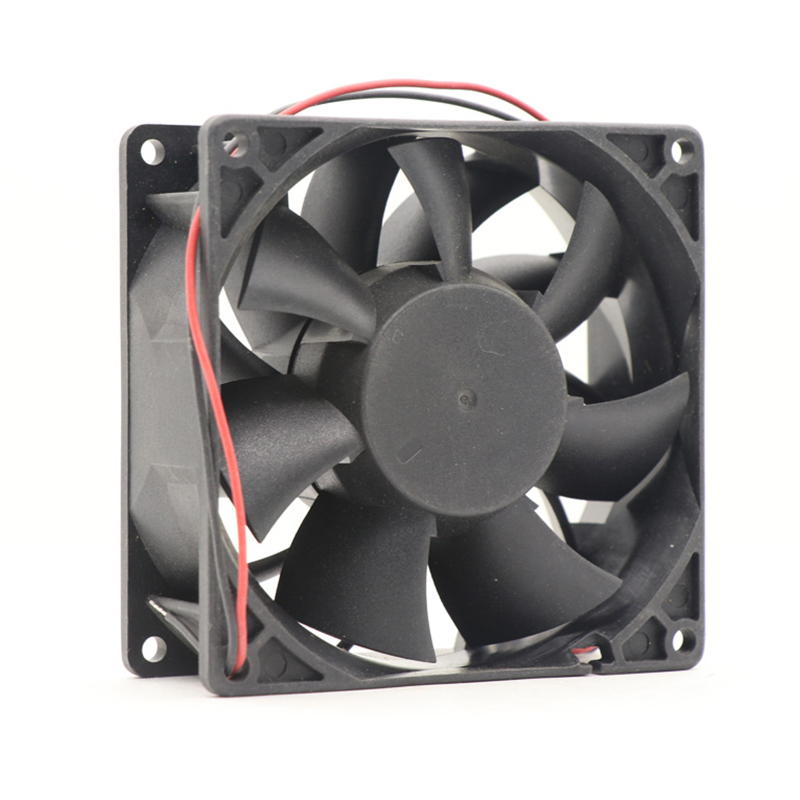

PMD2409PMB1-A SUNON Axial Fan

Brand :: SUNON

Model:: PMD2409PMB1-A | SUNON 24V 12.2W 92x92x38mm 204.2m3/h 4900rpm DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: SUNON PMD2409PMB1-A combines a 92 × 92 × 38 mm DC axial fan platform with a 24 VDC rating for industrial electronics and equipment cooling. Up to 204.2 m³/h is its most prominent listed performance figure. Review its cooling output during engineering comparison. Confirm temperature and service-life limits from current data.

Datasheet:: PMD2409PMB1-A | SUNON 24V 12.2W 92x92x38mm 204.2m3/h 4900rpm DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	92x92x38mm
Max.Air Flow(m³/h)	204.2
Max.Pressure(Pa)	176.9
Input Power(W)	12.2
Speed(rpm)	4900
Noise(db)	57.6

Product Features

High Airflow Cooling

For industrial equipment, SUNON PMD2409PMB1-A serves as a DC brushless axial fan. The fan supports temperature control in equipment that runs through sustained or repeated duty cycles.

The 204.2 m3/h airflow rating indicates the available cooling-air volume before system losses. Fan-curve review is needed to confirm delivery inside the finished equipment. The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling.

When qualifying PMD2409PMB1-A, give specific attention to service access. Use replacement-fit checks before volume production to align enclosure cooling, mechanical integration and lifecycle sourcing expectations. Verify mounting, connector and airflow direction against the replacement space.

Application Industry

Industrial Equipment

SUNON PMD2409PMB1-A serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

Does PMD2409PMB1-A support speed control?

Speed-control capability is not stated for this complete part number. Confirm the signal and controller requirements before use.

Why choose PMD2409PMB1-A over a general cooling fan?

Its documented 24 VDC rating and up to 204.2 m³/h is its most prominent listed performance figure. allow comparison with the required duty point without assuming unlisted options.

What speed is listed for PMD2409PMB1-A?

The listed speed is 4900 rpm. Confirm frequency, control method, and duty point for the installed system.

What should be checked if PMD2409PMB1-A stops?

Verify supply, wiring, obstructions, impeller movement, and protection status. Use the model datasheet before replacement or repair.

Does PMD2409PMB1-A have a documented pressure rating?

Yes. The worksheet lists up to 176.9 Pa; compare it with the system curve.

What input power is listed for PMD2409PMB1-A?

The worksheet lists 12.2 W input. Check supply capacity and operating conditions before commissioning.
