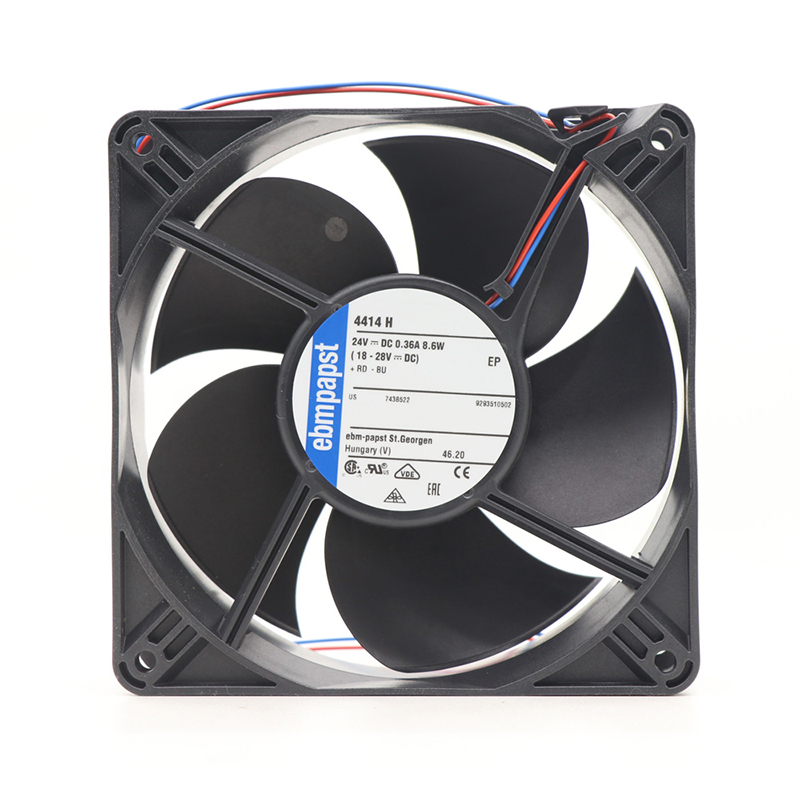

4414H ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 4414H | ebm-papst 24V 8.6W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 4414H is a high-performance dc axial fan engineered for power supplies. It delivers reliable airflow, efficient cooling and dependable operation in compact equipment.

Datasheet:: 4414H | ebm-papst 24V 8.6W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	11911938
Max.Air Flow(m³/h)	240
Max.Pressure(Pa)	130
Input Power(W)	8.6
Speed(rpm)	4300
Noise(db)	50

Product Features

High Airflow Cooling

The ebmpapst 4414H is a compact DC axial cooling fan for power supplies and power modules. Its space-saving format fits control cabinets, embedded electronics and automation assemblies that need a direct airflow path for continuous heat removal.

Key selection data includes a 24 V supply, airflow up to 240 m³/h, and maximum pressure of 130 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support and fiberglass-reinforced plastic components for durable motor support. Listed noise is 50 dB at the specified test point. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Power Module Cooling

4414H Delivers focused ventilation for power supplies and power modules used in compact electronic and automation assemblies.

Product Insights

Other Series Comparison — 4414H vs Variants

How the 4414H compares to nearby Other series variants:

Model	252H	255M	3214J/2N-335	3214JH4
Air Flow	—	—	—	—
Power	— W	— W	— W	— W
Noise	— dB	— dB	— dB	— dB
Size	— mm	— mm	— mm	— mm

All Other series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — 4414H Other Fan

Condenser Cooling: The 4414H axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Where can the 4414H be used?

It is a compact DC axial fan listed for automation cooling and ventilation applications.

Is the 4414H listed as RoHS compliant?

Yes. The workbook lists RoHS Compliant; request the exact-model document if formal confirmation is required.

How should the 4414H be maintained?

Keep the airflow path clean, inspect wiring and mounting, and follow the assigned datasheet instructions.
