G1G146-BA07-52 ebm-papst Blower Fan

Brand :: ebmpapst

Model:: G1G146-BA07-52 | ebm-papst 24V 100W EC Centrifugal Blower for Boiler Systems

Type:: Blower Fans

Industry:: HVAC & Ventilation

Description:: Aimed at Boiler Systems, the ebm-papst G1G146-BA07-52 is a 24 V EC backward-curved centrifugal fan, for which the table lists a listed pressure capability of 500 Pa. This assists electrical and mechanical review.

Datasheet:: G1G146-BA07-52 | ebm-papst 24V 100W EC Centrifugal Blower for Boiler Systems Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	146
Max.Air Flow(m³/h)	470
Max.Pressure(Pa)	500
Input Power(W)	100
Speed(rpm)	2200

Product Features

High Static Airflow

The ebm-papst G1G146-BA07-52 is an EC centrifugal blower for hvac systems, supporting equipment thermal management and integration.

Data includes 24 V operation, airflow up to 470 m³/h and pressure up to 500 Pa to support evidence-based matching of ventilation demand and pressure loss. Installed noise depends on the duty point and airflow path. The datasheet lists ball-bearing support, sheet-steel impeller, PWM/0-10 V speed control for durable motor support. Correct wiring and unobstructed inlet clearance help preserve cooling efficiency, operating stability and service life.

Its product-level documentation supports disciplined comparison across service workflows while preserving model traceability.

Application Industry

HVAC Systems

The G1G146-BA07-52 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Frequently Asked Questions

How should the G1G146-BA07-52 be checked for compatibility?

Compare 146 mm, 24 V, 100 W plus mounting, connector and duty-point requirements.

What installation checks apply to the G1G146-BA07-52?

Verify mounting orientation, inlet and outlet clearance, fastener security, electrical connections and the exact dimensional drawing before startup.

What distinguishes the G1G146-BA07-52 from a general-purpose fan?

Its EC backward-curved centrifugal fan configuration and a listed pressure capability of 500 Pa provide model-specific criteria for matching Boiler Systems systems.

Related Products

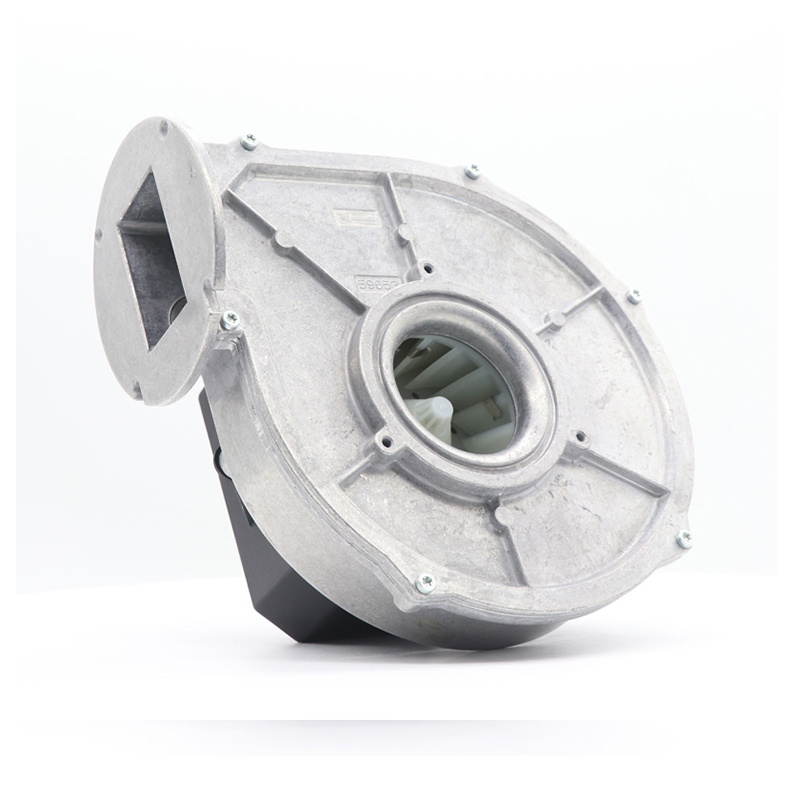

G1G146-BA11-52 | ebm-papst 230V EC Centrifugal Blower for HVAC
