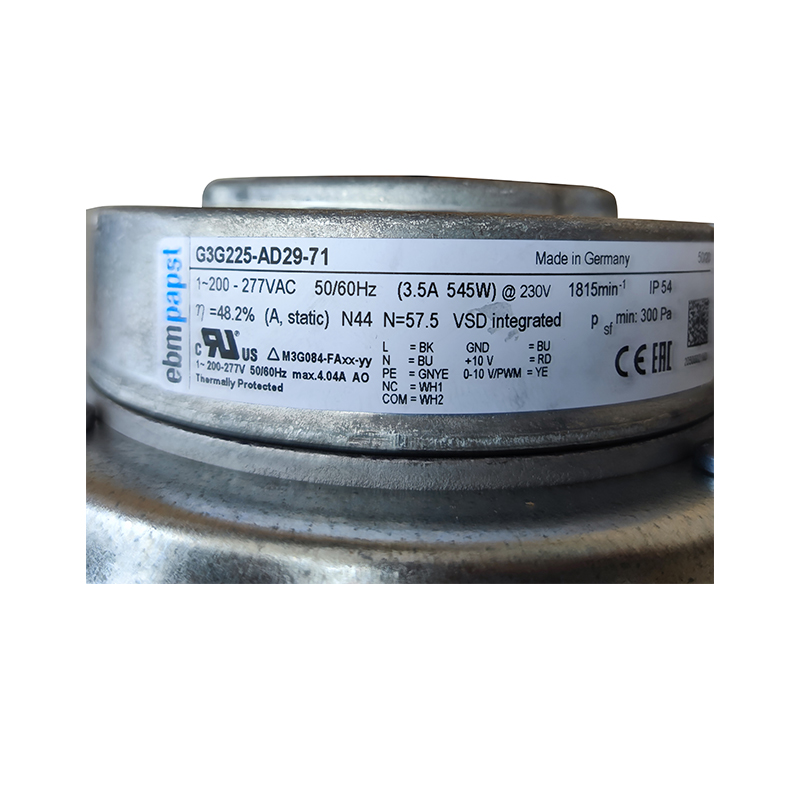

G3G225-AD29-71 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: G3G225-AD29-71 | ebm-papst 230V 545W EC Centrifugal Blower for Pharmaceutical Equipment

Type:: Centrifugal Fans

Industry:: Medical Equipment

Description:: Designed around pharmaceutical equipment, G3G225-AD29-71 uses a 230 V EC centrifugal blower platform. Among the supplied ratings, a listed 58 dB noise value with a 545 W input rating clearly differentiates this variant.

Datasheet:: G3G225-AD29-71 | ebm-papst 230V 545W EC Centrifugal Blower for Pharmaceutical Equipment Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	225
Max.Air Flow(m³/h)	1655
Max.Pressure(Pa)	600
Input Power(W)	545
Speed(rpm)	1815
Noise(db)	58

Product Features

High Static Airflow

The ebm-papst G3G225-AD29-71 is an EC centrifugal blower for industrial cooling, providing directed airflow in enclosures and cooling assemblies.

Data includes 230 V operation, airflow up to 1655 m³/h and pressure up to 600 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, sheet-steel impeller for durable motor support. Listed noise is 58 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the G3G225-AD29-71 should be checked for wiring, mounting, duty point and ambient limits before selection.

Application Industry

Industrial Cooling

The G3G225-AD29-71 ebm-papst fan is used in industrial equipment cooling where continuous heat generation requires controlled airflow for equipment heat removal and stable system operation.

Product Insights

AC to EC Replacement — G3G Compact EC Axial

The ebm-papst G3G225-AD29-71 from the Compact EC Axial series is a direct energy-saving replacement for legacy AC fans including G4D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

G3G EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

G3G Series Comparison — G3G225-AD29-71 vs Variants

How the G3G225-AD29-71 compares to nearby G3G series variants:

Model	G3G160-CU09-11	G3G225-AD29-71	G3G250-GN17-01	G3G250-GN44-01
Air Flow	—	—	—	—
Power	— W	— W	— W	— W
Noise	— dB	— dB	— dB	— dB
Size	— mm	— mm	— mm	— mm

All G3G series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — G3G225-AD29-71 Compact EC Axial

Data Center CRAH/CRAC Units: The G3G225-AD29-71 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What supply is required for the G3G225-AD29-71?

The listed rated voltage is 230 V. Match the supply, wiring, frequency and control interface before commissioning.

How does the G3G225-AD29-71 compare with an ordinary fan?

Its ec centrifugal blower design supports controlled airflow and useful pressure for ducted or space-constrained cooling systems.

How do I confirm compatibility for the G3G225-AD29-71?

Compare 230 V, 225 mm, 1655 m³/h, 600 Pa, connector details and operating environment with the existing system.

What should be considered for noise control with the G3G225-AD29-71?

The listed noise value is 58 dB. Use smooth airflow paths, secure mounting and suitable isolation where needed.

Related Products

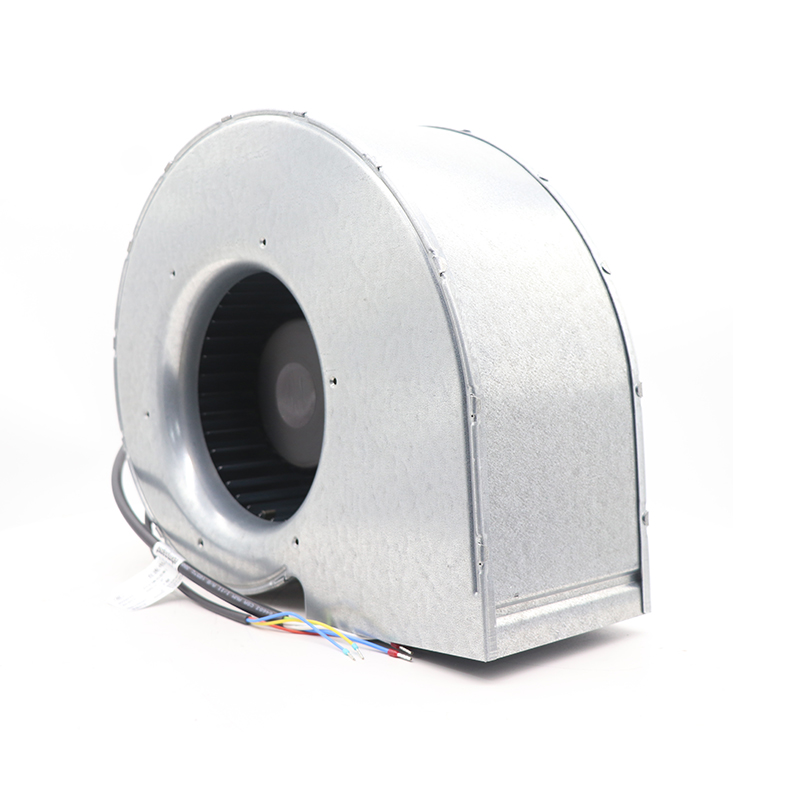

G3G180-AD43-71 | ebm-papst 230V 510W EC Centrifugal Blower for Medical Ventilation

G3G180-AD43-71 combines 230 V operation with a EC centrifugal blower format for medical ventilation. The supplied specifications highlight a listed 56 dB noise value with 0-10 V/PWM speed control.

G1G146-BA07-52 | ebm-papst 24V 100W EC Centrifugal Blower for Boiler Systems

Aimed at Boiler Systems, the ebm-papst G1G146-BA07-52 is a 24 V EC backward-curved centrifugal fan, for which the table lists a listed pressure capability of 500 Pa. This assists electrical and mechanical review.

G1G133-DE19-15 | ebm-papst 24V 45W EC Centrifugal Blower for Boiler Systems

Integrated into Boiler Systems, the ebm-papst G1G133-DE19-15 is a 24 V EC backward-curved centrifugal fan, specified with a documented 45 W input rating. The rating aids system-fit checks.

G1G097-AA05-01 | ebm-papst 24V 16W EC Centrifugal Blower for Boiler Systems

Suited to Boiler Systems, ebm-papst G1G097-AA05-01 is a 24 V EC backward-curved centrifugal fan, marked by a documented 16 W input rating. It provides a practical sizing reference.

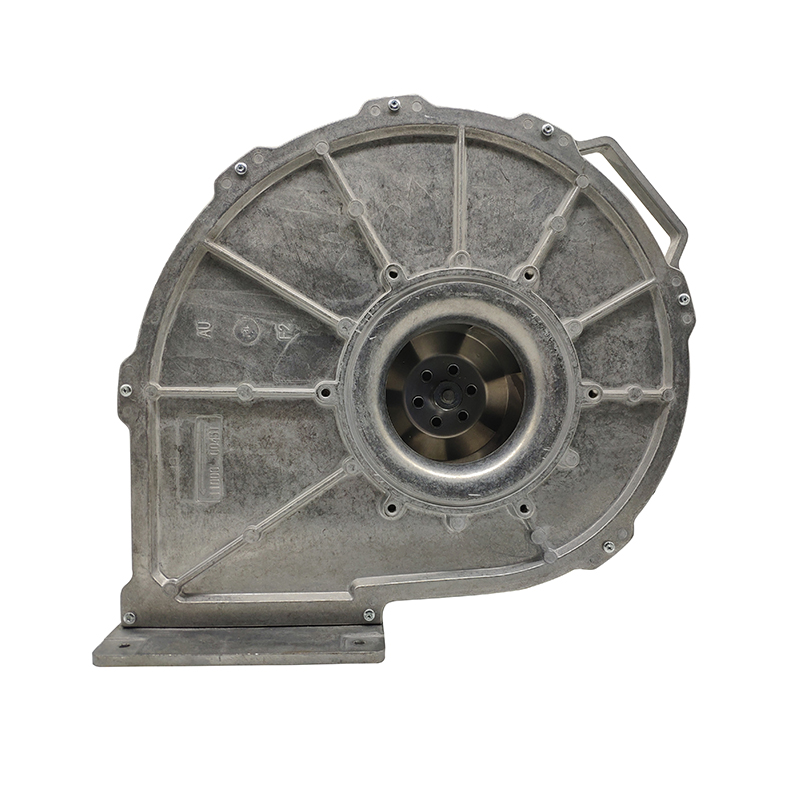

G3G250-GN17-01 | ebm-papst 230V 1117W EC Centrifugal Blower for Boiler Systems
