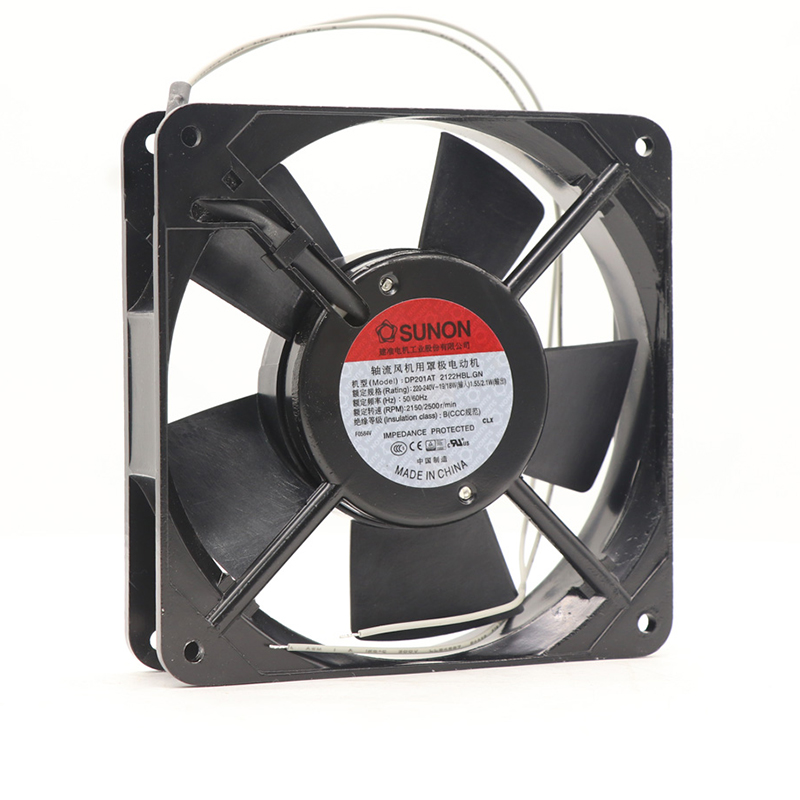

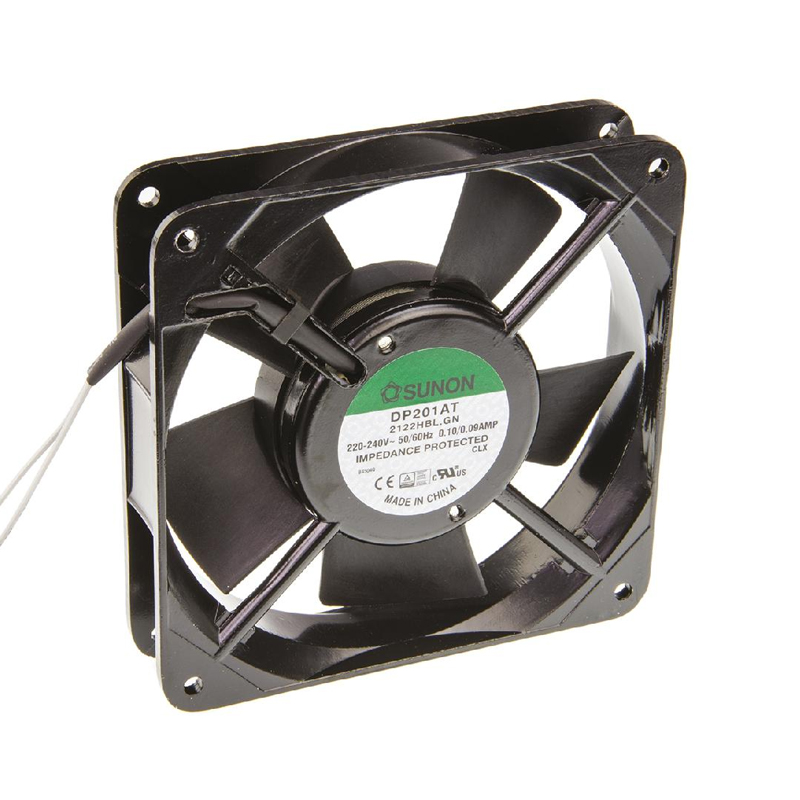

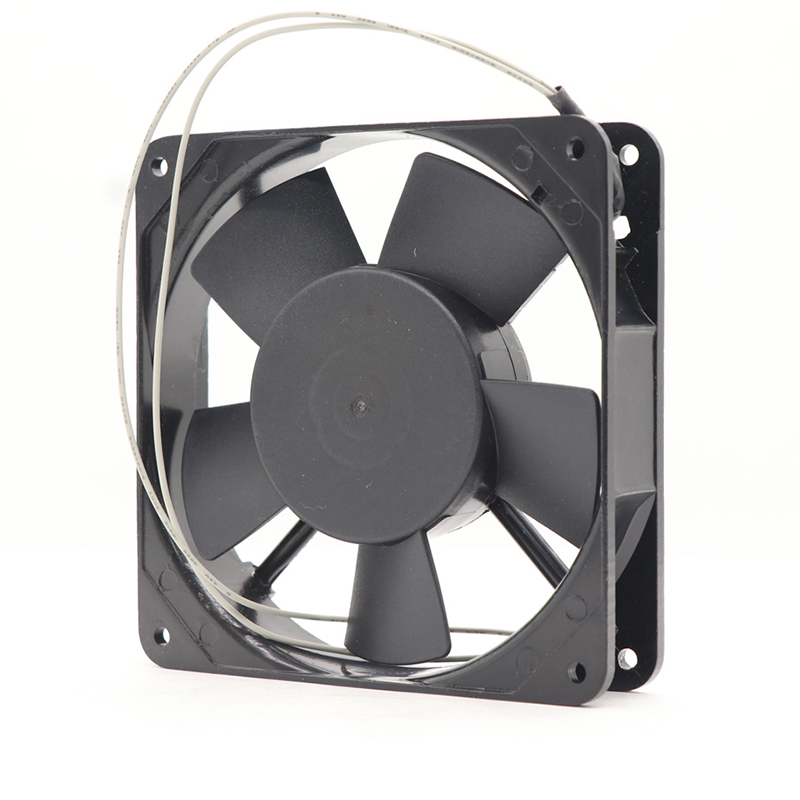

DP201AT 2122HBL.GN SUNON Axial Fan

Brand :: SUNON

Model:: DP201AT 2122HBL.GN | SUNON 220/240V 19W 120x120x25mm 136m3/h AC Axial Fan for HVAC & Ventilation

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: DP201AT 2122HBL.GN addresses commercial refrigeration and refrigerator cooling through a 220/240 VAC AC axial fan platform measuring 120 × 120 × 25 mm. Its 2500 rpm rating defines a lower-speed operating point. Treat the cooling output as a primary input to service-life planning. Check the ordering suffix before assigning control functions.

Datasheet:: DP201AT 2122HBL.GN | SUNON 220/240V 19W 120x120x25mm 136m3/h AC Axial Fan for HVAC & Ventilation Datasheet (Pdf)

Product Features

Rated Voltage(V)	220/240
Size(mm)	12012025
Max.Air Flow(m³/h)	136
Max.Pressure(Pa)	42.3
Input Power(W)	19
Speed(rpm)	2500
Noise(db)	48

Product Features

Reliable Fan Cooling

The SUNON DP201AT 2122HBL.GN positions an AC axial fan for HVAC and ventilation equipment. Its airflow path supports heat removal from enclosed components and toward the equipment exhaust.

The AC motor format supports direct integration with the stated supply, while the exact bearing, frequency and protection configuration remain tied to the complete part number. Acoustic performance depends on the enclosure and operating point; low-turbulence integration helps avoid additional airflow noise.

When qualifying DP201AT 2122HBL.GN, give specific attention to service access. Use duty-point validation within OEM validation to align enclosure cooling, mechanical integration and lifecycle sourcing expectations. Retain access for inspection, cleaning and replacement after installation.

Application Industry

HVAC Equipment

SUNON DP201AT 2122HBL.GN serves HVAC equipment. Airflow around control and heat-exchange sections helps address continuous heating and cooling loads. The fan gives OEM equipment a defined air route and supports stable air-conditioning operation. It supports reliable equipment cooling.

Ventilation Systems

SUNON DP201AT 2122HBL.GN serves industrial ventilation systems. Airflow around equipment air passages and thermal assemblies helps address continuous airflow demand. The fan gives OEM equipment a defined air route and supports controlled air circulation.

Heat Exchangers

SUNON DP201AT 2122HBL.GN serves heat-exchange equipment. Airflow around coil and exchanger surfaces helps address transferred thermal energy. The fan gives OEM equipment a defined air route and supports effective heat rejection. It supports reliable equipment cooling.

Frequently Asked Questions

What certification information is listed for DP201AT 2122HBL.GN?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

How is DP201AT 2122HBL.GN electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.

What maintenance is recommended for DP201AT 2122HBL.GN?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.

How can DP201AT 2122HBL.GN affect operating cost?

Compare its listed 19 W input with the required airflow and run time. Total savings depend on the complete system duty point.

What voltage is required by DP201AT 2122HBL.GN?

The listed rating is 220/240 VAC. Verify polarity or mains frequency, wiring, and protection before commissioning.
