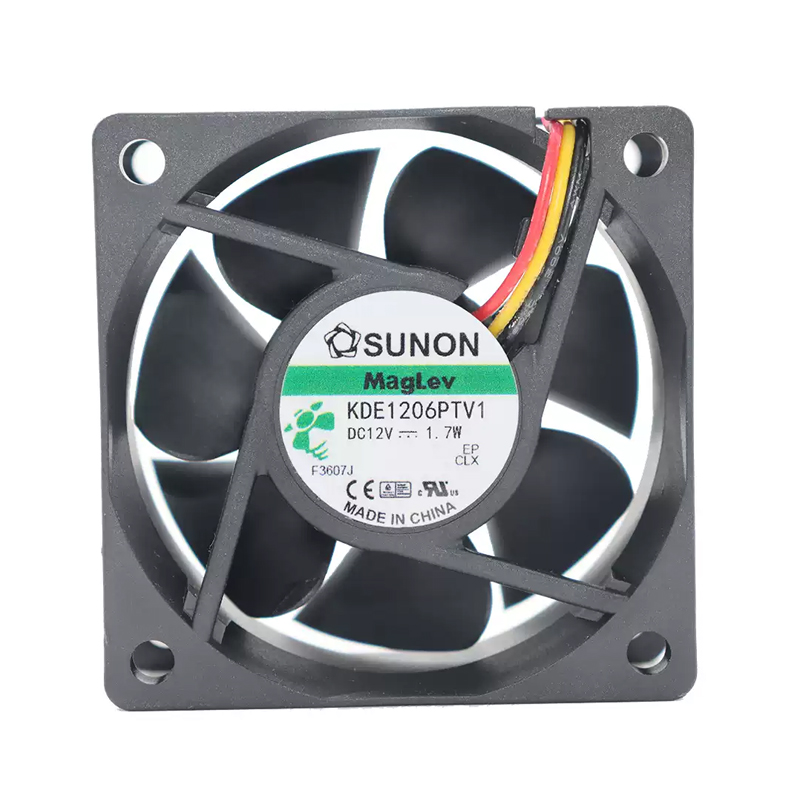

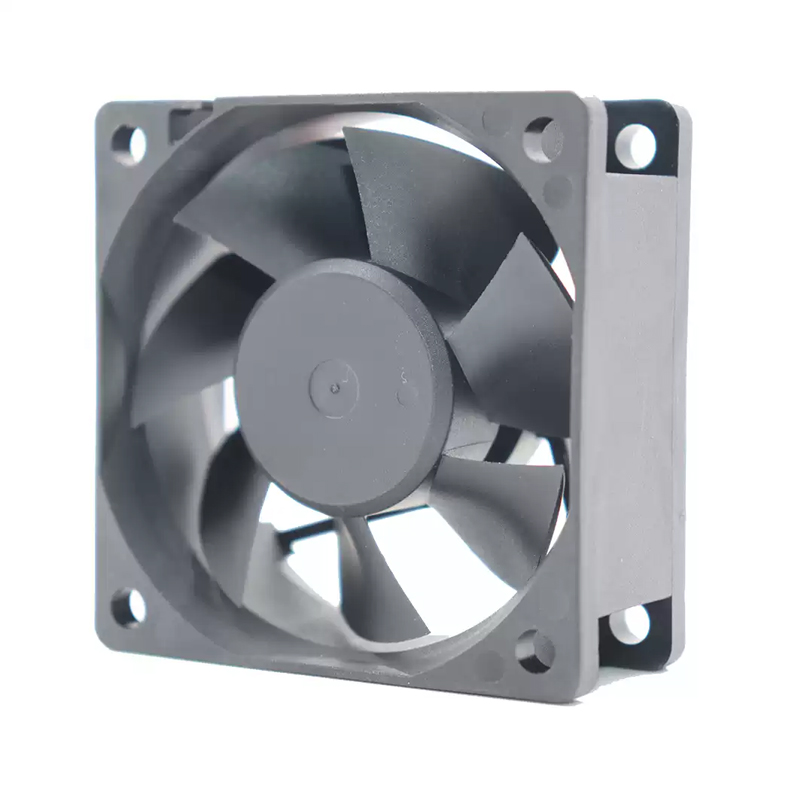

KDE1206PTV1 SUNON Axial Fan

Brand :: SUNON

Model:: KDE1206PTV1 | SUNON 12V 1.7W 60x60x25mm 39.95m3/h 4500rpm DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: SUNON KDE1206PTV1 combines a 60 × 60 × 25 mm DC blower platform with a 12 VDC rating for industrial electronics and equipment cooling. Its 39.95 m³/h airflow rating suits the stated equipment-cooling role. For specification approval, start with the supplied system interface. Check the ordering suffix before assigning control functions.

Datasheet:: KDE1206PTV1 | SUNON 12V 1.7W 60x60x25mm 39.95m3/h 4500rpm DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	606025
Max.Air Flow(m³/h)	39.95
Max.Pressure(Pa)	52.3
Input Power(W)	1.7
Speed(rpm)	4500
Noise(db)	33.5

Product Features

MagLev Cooling

SUNON KDE1206PTV1 supports industrial equipment with DC brushless axial fan airflow. It is intended for installations where predictable air exchange is central to equipment stability.

SUNON's DC product line is developed around MagLev motor technology, supporting low-friction rotation, energy-conscious operation and long service life in compact formats. Rigid mounting and clear breathing space help control vibration, flow loss and the acoustic result of the complete assembly.

For an orderly design-in process, assess vibration transfer around KDE1206PTV1 and perform prototype trials before volume production. The result is a clearer cooling specification for engineering, purchasing and maintenance teams. Use a representative assembly rather than an unrestricted bench setup.

Application Industry

Industrial Equipment

SUNON KDE1206PTV1 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What certification information is listed for KDE1206PTV1?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

Which selection data still require confirmation for KDE1206PTV1?

Confirm any missing bearing, connector, control, IP rating, life, certification, and performance-curve details for the complete part number.

Is KDE1206PTV1 compatible with a replacement fan?

Match voltage, dimensions, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

Why choose KDE1206PTV1 over a general cooling fan?

Its documented 12 VDC rating and its 39.95 m³/h airflow rating suits the stated equipment-cooling role. allow comparison with the required duty point without assuming unlisted options.

What voltage is required by KDE1206PTV1?

The listed rating is 12 VDC. Verify polarity or mains frequency, wiring, and protection before commissioning.

Is KDE1206PTV1 suitable for continuous operation?

The supplied product-line reference discusses long-life cooling, but continuous-duty limits for this full suffix must be verified from its datasheet and operating conditions.
