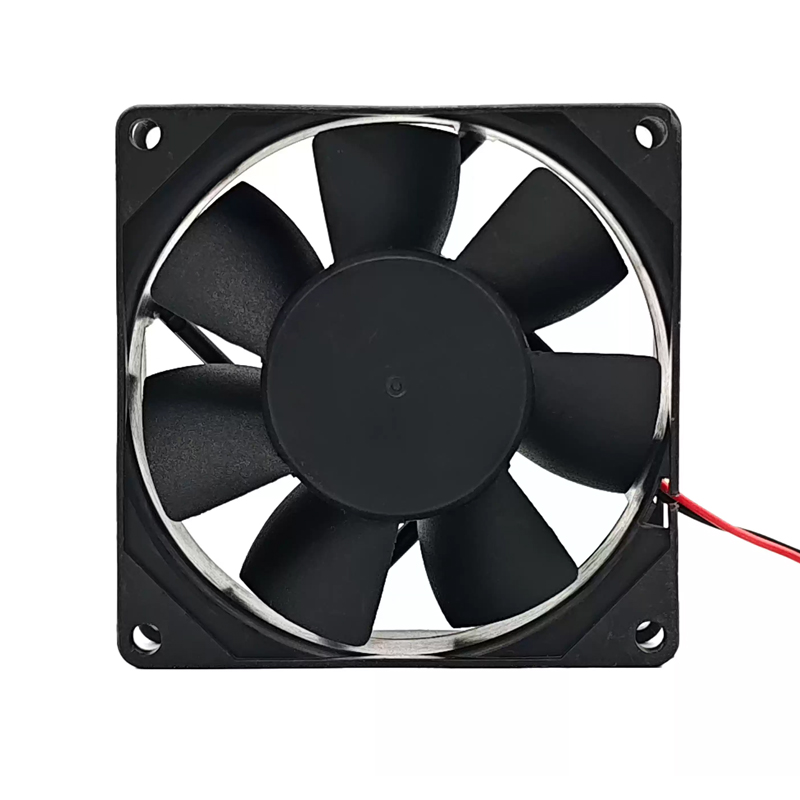

KDE2408PTB1-6A SUNON Axial Fan

Brand :: SUNON

Model:: KDE2408PTB1-6A | SUNON 24V 2.6W 80x80x25mm 72.25m3/h 3200rpm DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Sized for industrial electronics and equipment cooling, SUNON KDE2408PTB1-6A is a 24 VDC DC blower in a 80 × 80 × 25 mm frame. Its 3200 rpm rating defines a lower-speed operating point. Use the documented cooling specification when planning specification approval. Check the ordering suffix before assigning control functions.

Datasheet:: KDE2408PTB1-6A | SUNON 24V 2.6W 80x80x25mm 72.25m3/h 3200rpm DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	808025
Max.Air Flow(m³/h)	72.25
Max.Pressure(Pa)	57.3
Input Power(W)	2.6
Speed(rpm)	3200
Noise(db)	36.5

Product Features

Reliable Fan Cooling

The KDE2408PTB1-6A from SUNON addresses cooling needs in industrial equipment. As a DC brushless axial fan, it creates a defined inlet-to-outlet route across the thermal load.

The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling. Rigid mounting and clear breathing space help control vibration, flow loss and the acoustic result of the complete assembly.

A dependable KDE2408PTB1-6A installation starts with a review of exhaust separation. Complete prototype trials before volume production to confirm compatibility, operating margin and the information needed for repeat orders. Separate discharge air from the intake path inside the finished enclosure.

Application Industry

Industrial Equipment

SUNON KDE2408PTB1-6A serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

Which selection data still require confirmation for KDE2408PTB1-6A?

Confirm any missing bearing, connector, control, IP rating, life, certification, and performance-curve details for the complete part number.

What maintenance is recommended for KDE2408PTB1-6A?

Inspect for dust, blocked airflow, abnormal noise, loose mounting, and wiring damage. Isolate power before cleaning or service.

Why choose KDE2408PTB1-6A over a general cooling fan?

Its documented 24 VDC rating and its 3200 rpm rating defines a lower-speed operating point. allow comparison with the required duty point without assuming unlisted options.

What speed is listed for KDE2408PTB1-6A?

The listed speed is 3200 rpm. Confirm frequency, control method, and duty point for the installed system.

Is KDE2408PTB1-6A suitable for continuous operation?

The supplied product-line reference discusses long-life cooling, but continuous-duty limits for this full suffix must be verified from its datasheet and operating conditions.

Related Products

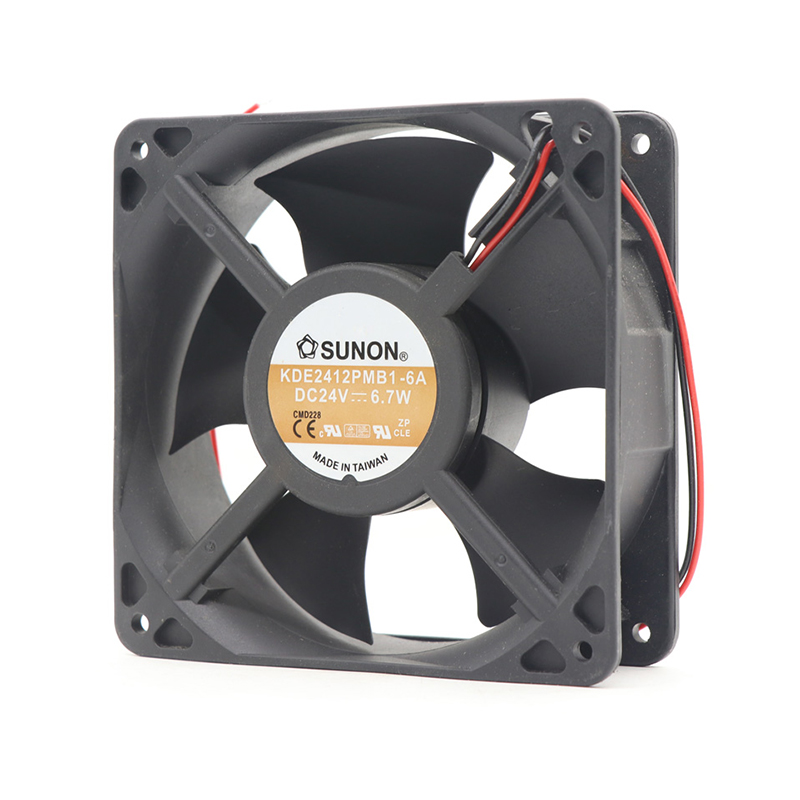

KDE2412PMB1-6A | SUNON 24V 6.7W 120x120x38mm 183.6m3/h DC Axial Fan for Industrial Cooling

Within industrial electronics and equipment cooling, SUNON KDE2412PMB1-6A serves as a 120 × 120 × 38 mm DC blower operating at 24 VDC. Up to 183.6 m³/h is its most prominent listed performance figure. Use the documented equipment fit when planning specification approval. Check the ordering suffix before assigning control functions.

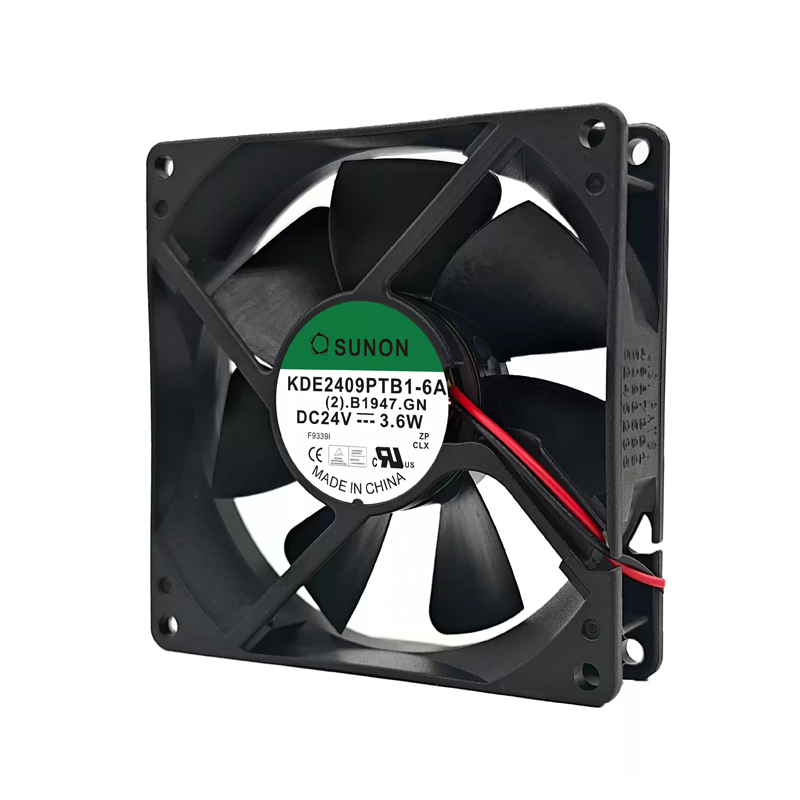

KDE2409PTB1-6A | SUNON 24V 3.6W 90x90x25mm 4200rpm DC Axial Fan for Industrial Cooling

Used in industrial electronics and equipment cooling, SUNON KDE2409PTB1-6A is a 24 VDC DC blower in a 90 × 90 × 25 mm frame. 3.6 W input is the defining electrical load in the supplied data. The recorded mounting size should guide specification approval. Check the ordering suffix before assigning control functions.

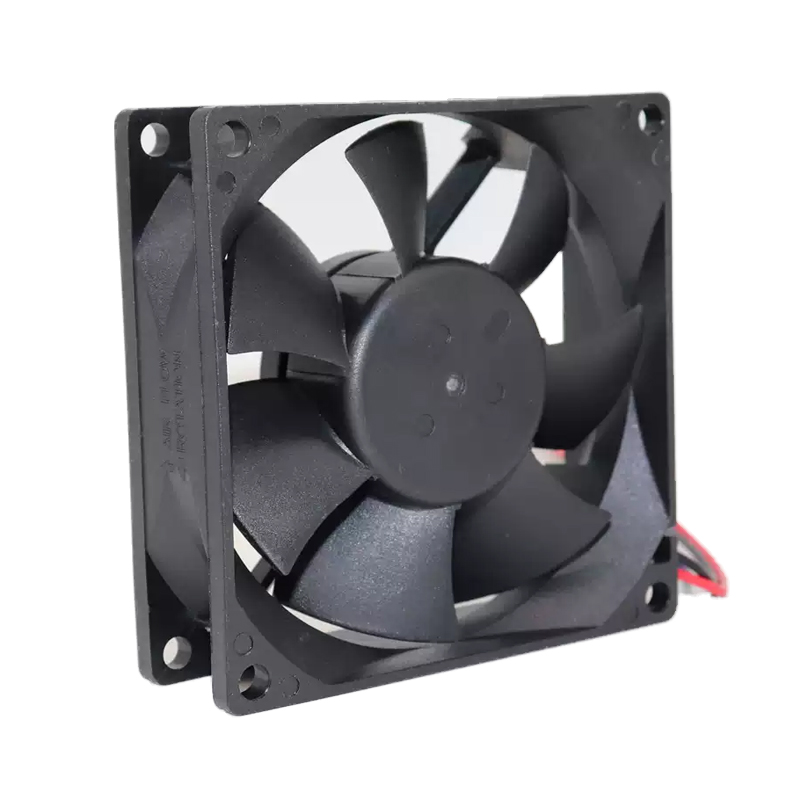

KDE2408PTB1-6A318 | SUNON 24V 2.6W 80x80x25mm 72.25m3/h DC Axial Fan for Industrial Cooling
