SP101A 1123HBT.GN SUNON Axial Fan

Brand :: SUNON

Model:: SP101A 1123HBT.GN | SUNON 115V 20W 120x120x38mm 87m3/h AC Axial Fan for HVAC & Ventilation

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: Specified at 115 VAC, SP101A 1123HBT.GN is a SUNON AC axial fan for commercial refrigeration and refrigerator cooling in 120 × 120 × 38 mm dimensions. Its 2750 rpm rating defines a lower-speed operating point. Treat the rotational rating as a primary input to system-resistance review. Use current model documentation to validate protection choices.

Datasheet:: SP101A 1123HBT.GN | SUNON 115V 20W 120x120x38mm 87m3/h AC Axial Fan for HVAC & Ventilation Datasheet (Pdf)

Product Features

Rated Voltage(V)	115
Size(mm)	12012038
Max.Air Flow(m³/h)	87
Input Power(W)	20
Speed(rpm)	2750
Noise(db)	45

Product Features

Reliable Fan Cooling

SUNON SP101A 1123HBT.GN brings active air movement to HVAC and ventilation equipment. This AC axial fan helps equipment designers control thermal conditions around densely arranged parts.

The AC motor format supports direct integration with the stated supply, while the exact bearing, frequency and protection configuration remain tied to the complete part number. Separating cool intake air from warm exhaust limits recirculation and improves heat-transfer effectiveness inside the equipment.

To integrate SP101A 1123HBT.GN effectively, review outlet geometry at equipment level and arrange prototype trials before release. Confirmed system compatibility supports stable cooling and repeatable procurement. Preserve a clear discharge region to avoid unnecessary downstream turbulence.

Application Industry

HVAC Equipment

SUNON SP101A 1123HBT.GN serves HVAC equipment. Airflow around control and heat-exchange sections helps address continuous heating and cooling loads. The fan gives OEM equipment a defined air route and supports stable air-conditioning operation. It supports reliable equipment cooling.

Ventilation Systems

SUNON SP101A 1123HBT.GN serves industrial ventilation systems. Airflow around equipment air passages and thermal assemblies helps address continuous airflow demand. The fan gives OEM equipment a defined air route and supports controlled air circulation.

Heat Exchangers

SUNON SP101A 1123HBT.GN serves heat-exchange equipment. Airflow around coil and exchanger surfaces helps address transferred thermal energy. The fan gives OEM equipment a defined air route and supports effective heat rejection. It supports reliable equipment cooling.

Frequently Asked Questions

What installation checks apply to SP101A 1123HBT.GN?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.

Which performance figures define SP101A 1123HBT.GN?

Use the listed voltage, size, 87 m³/h airflow, 2750 rpm, and 20 W input for preliminary comparison.

What equipment can use SP101A 1123HBT.GN?

It is listed for commercial refrigeration and refrigerator cooling. Check dimensions, airflow, pressure, and the installation environment against the actual equipment.

Which selection data still require confirmation for SP101A 1123HBT.GN?

Confirm any missing bearing, connector, control, IP rating, life, certification, and performance-curve details for the complete part number.

Is SP101A 1123HBT.GN compatible with a replacement fan?

Match voltage, dimensions, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

Related Products

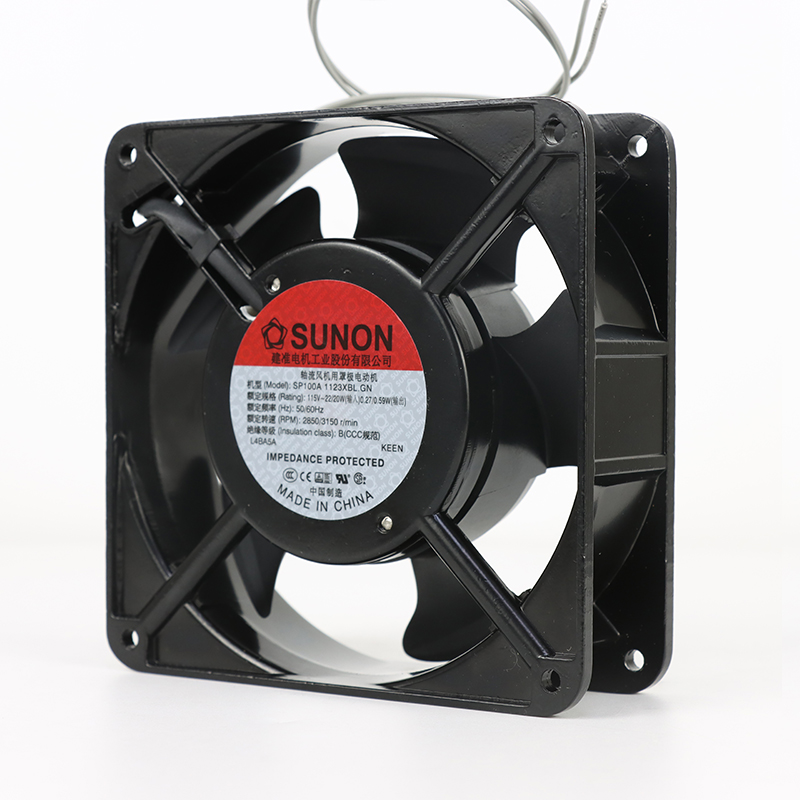

SP100A 1123XBL.GN | SUNON 115V 22W 120x120x38mm 41m3/h AC Axial Fan for HVAC & Ventilation
