VF80761BX-Q040-S9H SUNON Axial Fan

Brand :: SUNON

Model:: VF80761BX-Q040-S9H | SUNON 12V 68.6W 80x80x76mm 132.48m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Applied in servers and data-center electronics, SUNON VF80761BX-Q040-S9H is a 12 VDC DC blower in a 80 × 80 × 76 mm frame. The supplied data list 78.8 dB, an important acoustic selection parameter. Use the documented ventilation capacity when planning technical purchasing. Request the exact performance curve for final engineering signoff.

Datasheet:: VF80761BX-Q040-S9H | SUNON 12V 68.6W 80x80x76mm 132.48m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	80x80x76
Max.Air Flow(m³/h)	132.48
Max.Pressure(Pa)	10.98
Input Power(W)	68.6
Speed(rpm)	17000/17000
Noise(db)	78.8

Product Features

Reliable Fan Cooling

SUNON VF80761BX-Q040-S9H brings active air movement to industrial equipment. This DC brushless axial fan helps equipment designers control thermal conditions around densely arranged parts.

The SUNON product series carries RoHS compliance and recognized safety approvals; buyers should confirm the approval marks for this exact suffix and target market. Correct airflow direction and inlet clearance help translate the documented operating point into reliable equipment-level cooling.

To integrate VF80761BX-Q040-S9H effectively, review outlet geometry at equipment level and arrange prototype trials for service documentation. Confirmed system compatibility supports stable cooling and repeatable procurement. Preserve a clear discharge region to avoid unnecessary downstream turbulence.

Application Industry

Industrial Equipment

SUNON VF80761BX-Q040-S9H serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

Is VF80761BX-Q040-S9H suitable for continuous operation?

The supplied product-line reference discusses long-life cooling, but continuous-duty limits for this full suffix must be verified from its datasheet and operating conditions.

What bearing information is confirmed for VF80761BX-Q040-S9H?

The exact bearing option is not confirmed by the row-level data. Check the complete suffix in the current SUNON specification.

How should VF80761BX-Q040-S9H be matched to an enclosure?

Review its 80 × 80 × 76 mm size, 132.48 m³/h airflow, 10.98 Pa pressure, system resistance, and available mounting space.

What certification information is listed for VF80761BX-Q040-S9H?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.

How is VF80761BX-Q040-S9H electrically connected?

The supplied row does not state the connector or lead configuration. Follow the model-specific wiring drawing.

Related Products

VF80801BX-Q031-S9H | SUNON 12V 112.8W 80x80x80mm 168.6m3/h DC Axial Fan for Industrial Cooling

For servers and data-center electronics, VF80801BX-Q031-S9H combines 12 VDC operation with a 80 × 80 × 80 mm DC blower design. The supplied data list 80 dB, an important acoustic selection parameter. The recorded rated dataset should guide technical purchasing. Request the exact performance curve for final engineering signoff.

VF92381BX-D020-S9H | SUNON 12V 64.8W 92x92x38mm 171.7m3/h DC Axial Fan for Industrial Cooling

SUNON VF92381BX-D020-S9H combines a 92 × 92 × 38 mm DC blower platform with a 12 VDC rating for servers and data-center electronics. 4.48 Pa maximum pressure is the standout documented duty-point value. Treat the cooling output as a primary input to system commissioning. Verify bearing and signal options in the exact datasheet.

VF80864BX-1Q010-S9H | SUNON 54V 180.9W 80x80x86mm 218.4m3/h DC Axial Fan for Industrial Cooling

VF80864BX-1Q010-S9H serves servers and data-center electronics as a 80 × 80 × 86 mm DC blower rated at 54 VDC. The supplied data list 87.3 dB, an important acoustic selection parameter. Use the documented electrical load when planning system commissioning. Verify bearing and signal options in the exact datasheet.

VF80864BX-Q023-S9H | SUNON 54V 99.9W 80x80x86mm 166.3m3/h DC Axial Fan for Industrial Cooling

SUNON VF80864BX-Q023-S9H combines a 80 × 80 × 86 mm DC blower platform with a 54 VDC rating for servers and data-center electronics. The supplied data list 81.9 dB, an important acoustic selection parameter. Review its speed benchmark during system commissioning. Verify bearing and signal options in the exact datasheet.

VF80804BX-1Q040-S9H | SUNON 54V 148.5W 80x80x80mm 211.2m3/h DC Axial Fan for Industrial Cooling

The VF80804BX-1Q040-S9H is SUNON's 54 VDC, 80 × 80 × 80 mm DC blower option for servers and data-center electronics. The supplied data list 84.6 dB, an important acoustic selection parameter. During technical purchasing, compare the model's selection parameters. Request the exact performance curve for final engineering signoff.

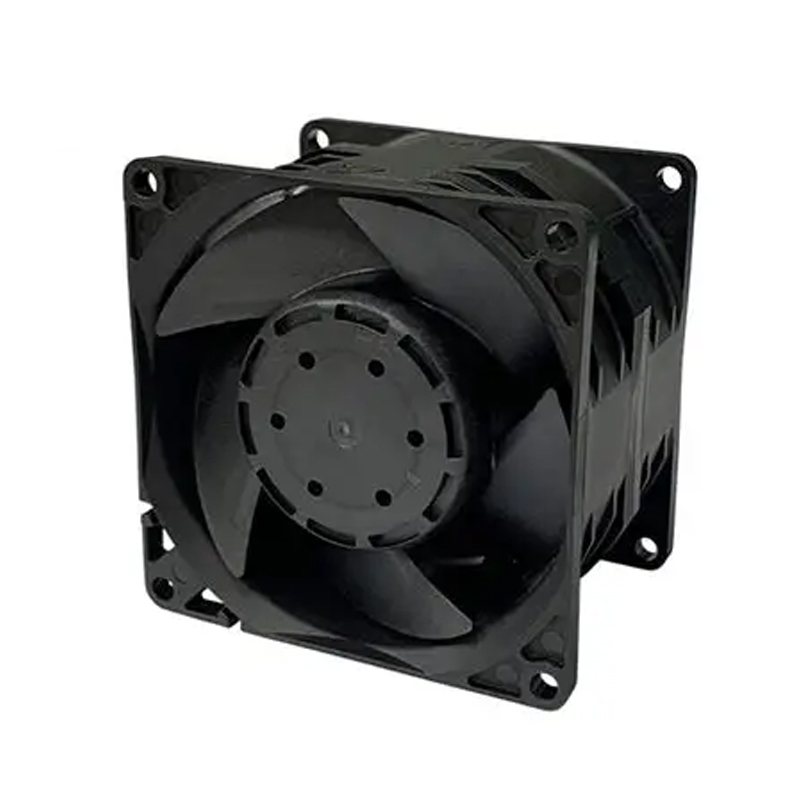

VF80561BX-Q11C-S9H | SUNON 12V 26.4W 80x80x56mm 94.8m3/h DC Axial Fan for Industrial Cooling
