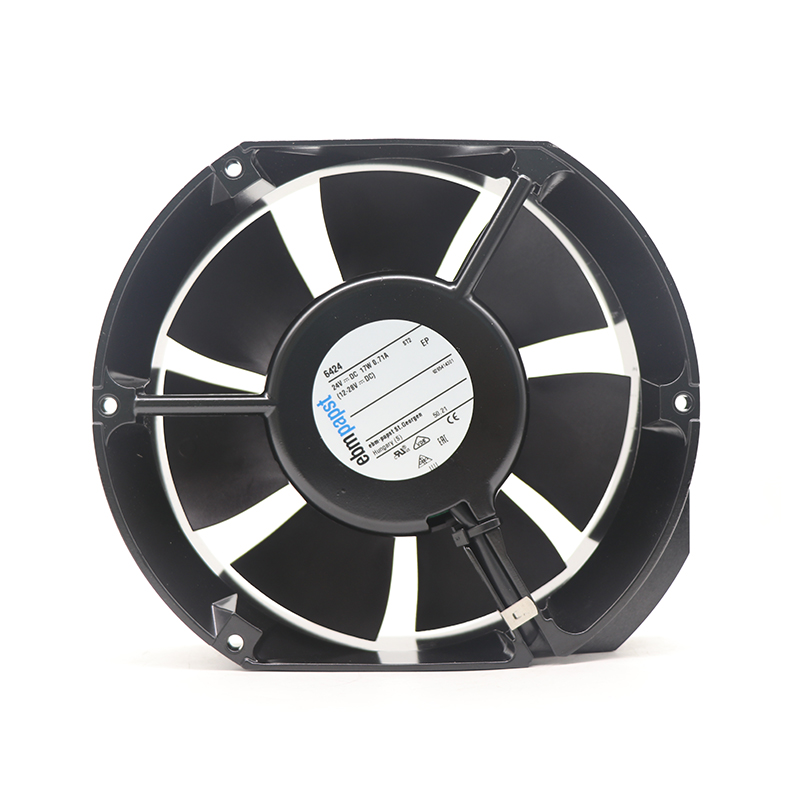

6424 ebm-papst Compact Fan

Brand :: ebmpapst

Model:: 6424 | ebm-papst 24V 17W DC Axial Fan for Electronics Cooling

Type:: Compact Fans

Industry:: Automation

Description:: The ebm-papst 6424 is a high-performance dc axial fan engineered for electronics and industrial equipment. It provides reliable airflow and efficient thermal management for demanding equipment.

Datasheet:: 6424 | ebm-papst 24V 17W DC Axial Fan for Electronics Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	17215051
Max.Air Flow(m³/h)	390
Max.Pressure(Pa)	188
Input Power(W)	17
Speed(rpm)	3400

Product Features

High Airflow Cooling

The ebmpapst 6424 is a compact DC axial cooling fan for industrial automation and electronic equipment. Its space-saving format fits control cabinets, embedded electronics and automation assemblies that need a direct airflow path for continuous heat removal.

Key selection data includes a 24 V supply, airflow up to 390 m³/h, and maximum pressure of 188 Pa. The axial flow path provides efficient cooling, while pressure performance helps move air through guards, filters and restricted passages. The datasheet identifies ball-bearing motor support for durable motor support. Clear inlet and outlet spacing helps control turbulence and system noise. Matching the electrical supply and duty point supports energy-efficient, reliable operation and long service life.

This industrial fan suits OEMs, integrators and maintenance teams. Verify the duty point, connector, mounting and ambient limits against the exact datasheet. Correct installation and a clean airflow path support reliable long-term operation.

Application Industry

Automation Cooling

6424 Supports reliable heat removal in automation controllers, machine electronics and compact industrial control equipment.

Frequently Asked Questions

What are the dimensions of the 6424?

The listed size is 172*150*51 mm. Confirm mounting holes and available clearance before replacement.

What performance is listed for the 6424?

The product data lists airflow up to 390 m³/h, speed 3400 RPM, pressure up to 188 Pa; confirm the required operating point.

What power or noise data is available for the 6424?

The listed values are input power 17 W. Use the exact model data for selection.

Is the 6424 compatible with my equipment?

Compare 24 V, 172*150*51 mm, airflow demand and connection details with your equipment.

Related Products

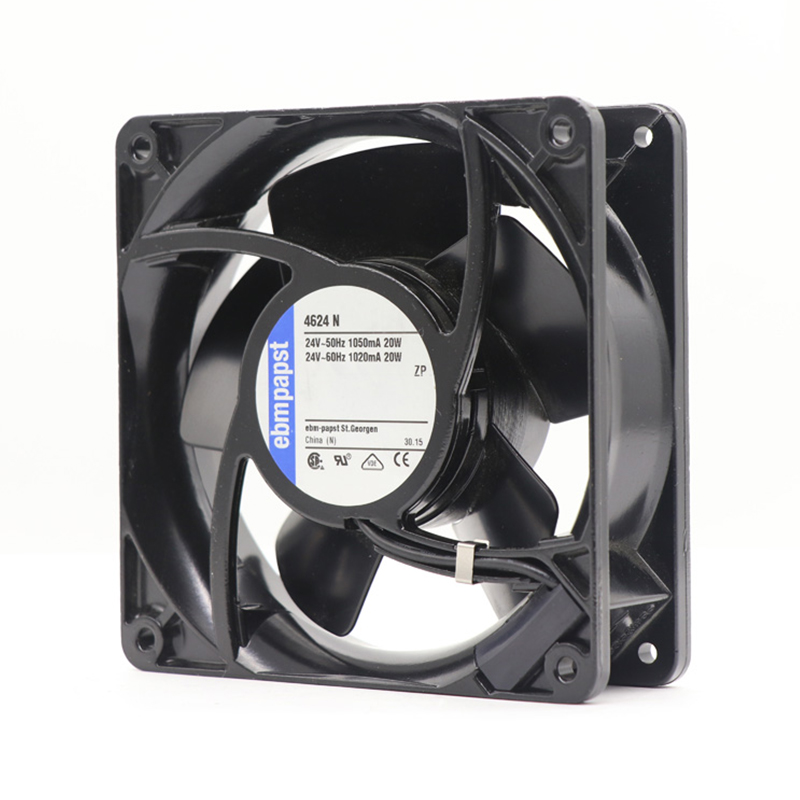

4624N | ebm-papst 24V 20W DC Axial Fan for Electronics Cooling

The ebm-papst 4624N is a high-performance dc axial fan engineered for electronics and industrial equipment. It provides reliable airflow and efficient thermal management for demanding equipment.

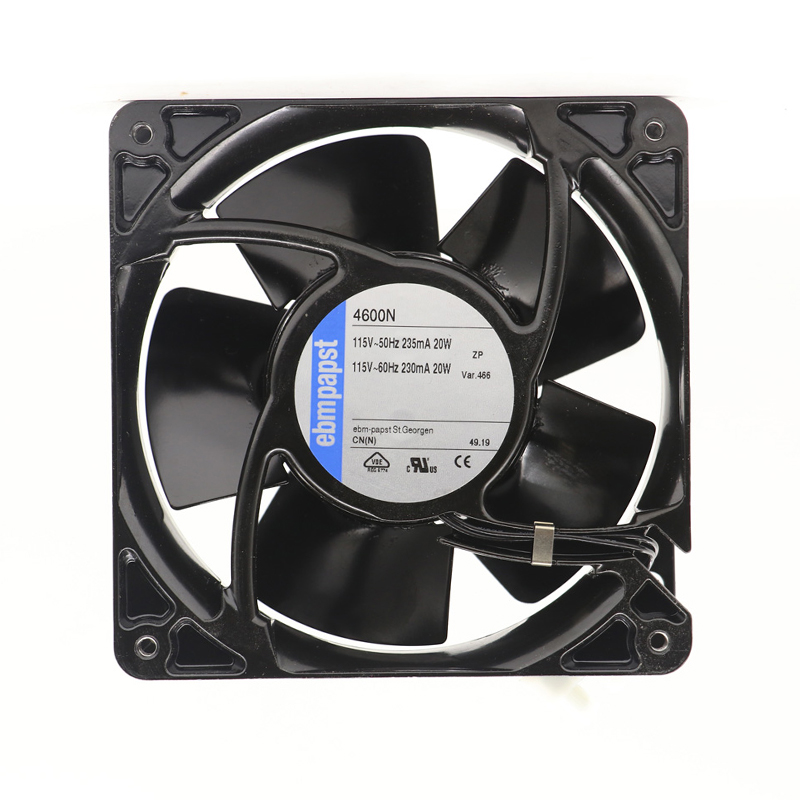

4600N-466 | ebm-papst 115V 20W AC Axial Fan for Electronics Cooling

The ebm-papst 4600N-466 is a high-performance ac axial fan engineered for control cabinets and enclosures. It provides reliable airflow and efficient thermal management for demanding equipment.

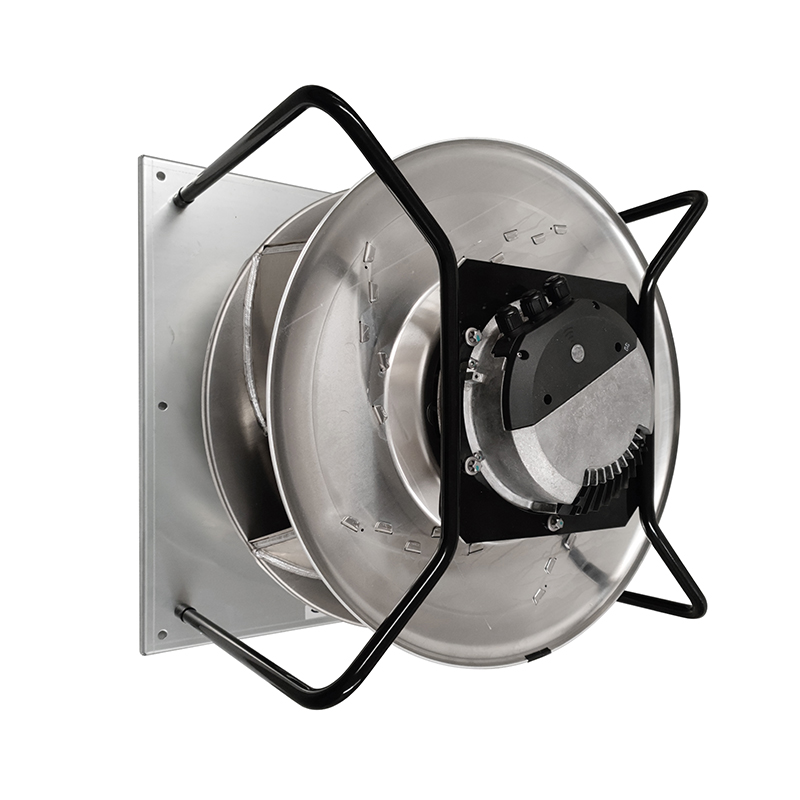

K3G500-PB24-03 | ebm-papst 3~380-480V 4200W EC Centrifugal Fan for Air Handling

Used in Air Handling, ebm-papst K3G500-PB24-03 is a 380-480V EC backward-curved centrifugal fan, with a listed airflow of 15,935 m³/h. The rating clarifies its operating profile.

K3G560-AP23-01 | ebm-papst 3~380-480V 3000W EC Centrifugal Fan for Air Handling

Configured for Air Handling, the ebm-papst K3G560-AP23-01 is a 380-480V EC backward-curved centrifugal fan, centered on a documented speed of 1,500 rpm. This helps guide installation planning.

D2E146-AP47-63 | ebm-papst 230V 330W AC Centrifugal Blower for HVAC

The ebm-papst D2E146-AP47-63, a 230 V AC centrifugal blower, is intended for HVAC and ventilation equipment. Listed performance includes 700 m³/h airflow, 625 Pa pressure, giving designers a clear basis for checking airflow, mounting and electrical compatibility.

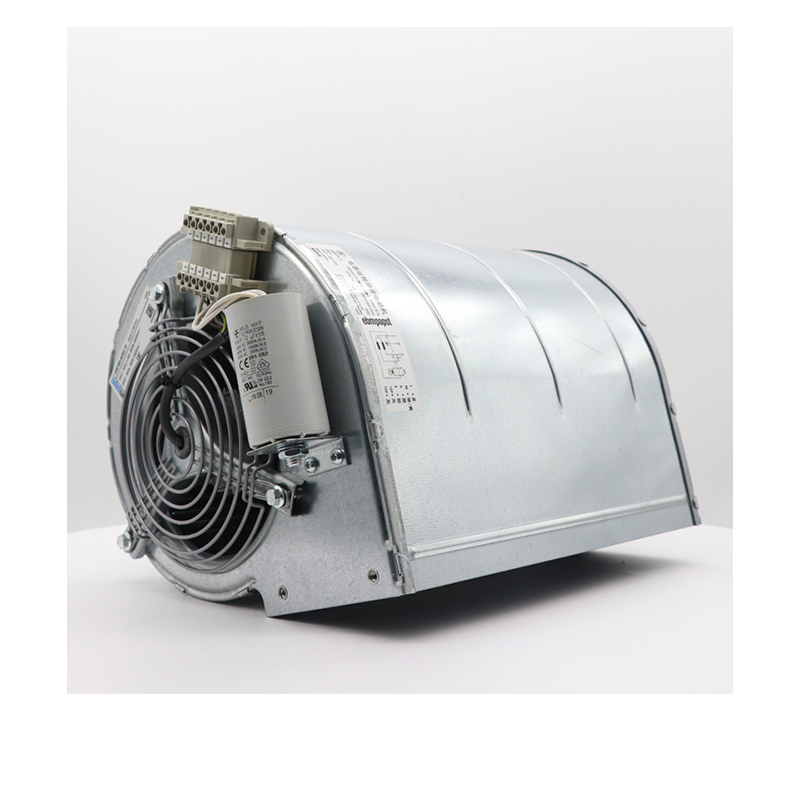

D2E160-AH02-15 | ebm-papst 230V 550W AC Centrifugal Blower for Inverter Cooling
