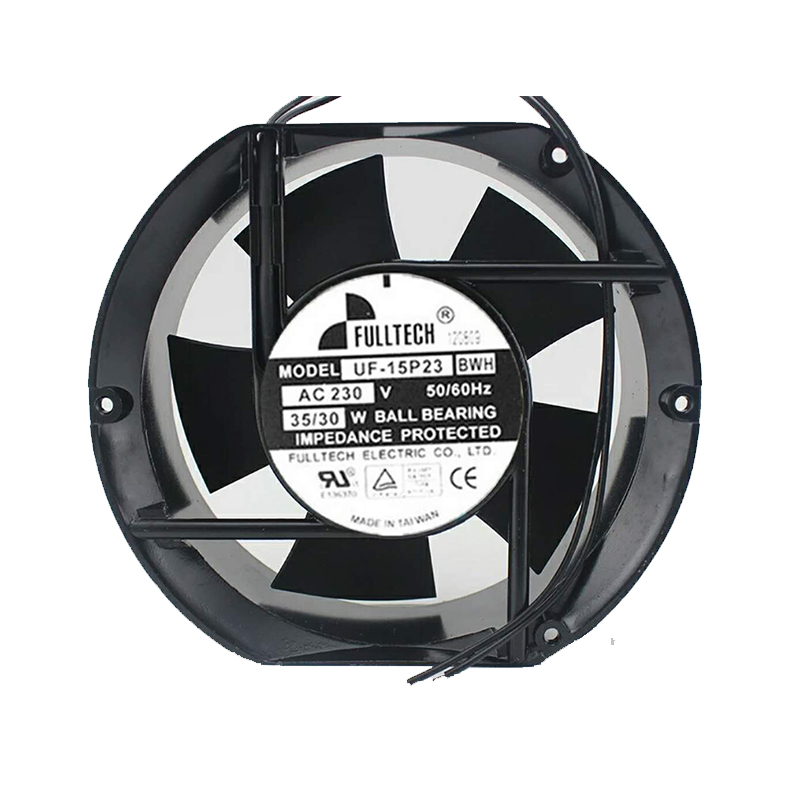

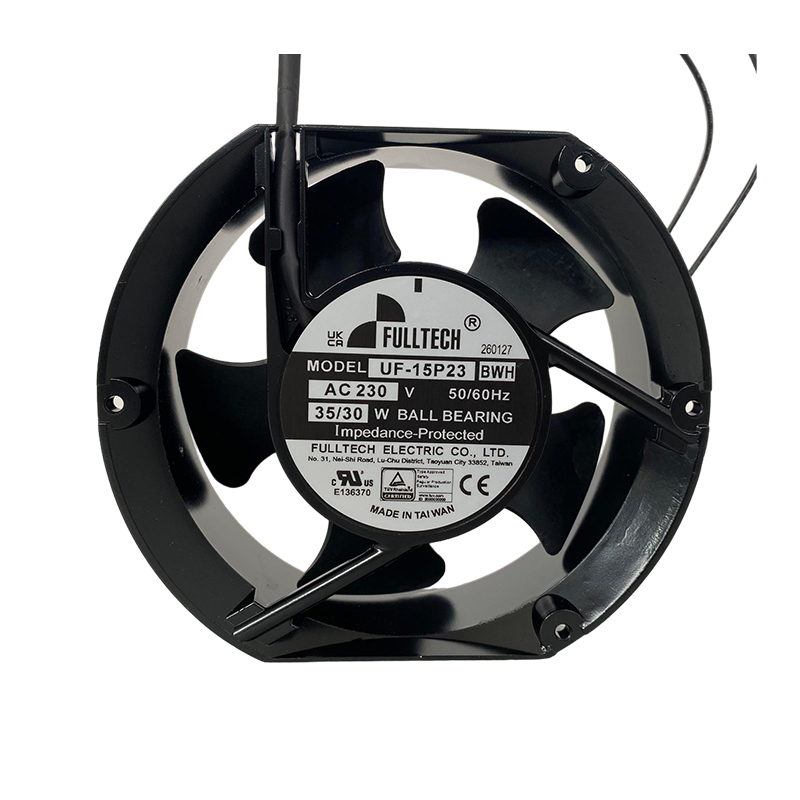

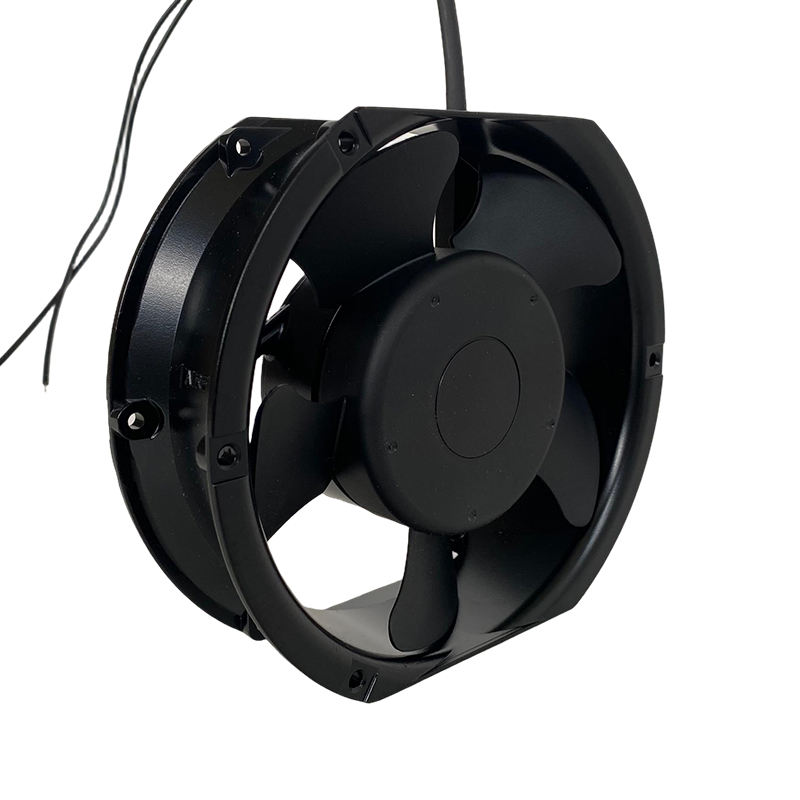

UF-15P23BWH FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-15P23BWH | Fulltech 230VAC 30W AC Axial Fan for Control Cabinet and Power Supply Cooling

Type:: Axial Fans

Industry:: Automation

Description:: industrial cabinets and power supplies is the target duty for UF-15P23BWH, a 230 VAC AC axial fan measuring 150 × 172 × 51 mm. Ball-bearing construction is the central durability detail, paired with lead-wire connection and motor protection. Rated data: 30 W input, up to 332 m³/h, 3100 rpm, 55 dB.

Datasheet:: UF-15P23BWH | Fulltech 230VAC 30W AC Axial Fan for Control Cabinet and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	17215051
Max.Air Flow(m³/h)	332
Input Power(W)	30
Speed(rpm)	3100
Noise(db)	55

Product Features

Reliable AC Cooling

The Fulltech UF-15P23BWH is an AC axial fan developed for power supplies. Its forced-air design supports stable heat removal where natural convection cannot protect enclosed components.

The 332 m3/h maximum airflow supports active heat removal. Designers should compare the fan curve with the finished air path rather than select from free-air delivery alone. The aluminum die-cast frame provides rigid motor support, while the axial impeller maintains a direct equipment airflow path.

For design-in or replacement purchasing, UF-15P23BWH offers a model-specific industrial cooling option. Verify wiring, airflow direction and operating conditions against the exact datasheet. Keep inlet and outlet clearances consistent with the installation drawing.

Application Industry

Industrial Electronics

Fulltech UF-15P23BWH is used in industrial electronic equipment, moving air around electronic assemblies to address continuous component heat. The fan gives OEM equipment a planned airflow route, supports stable equipment operation and helps reduce localized heat.

Control Cabinets

Fulltech UF-15P23BWH is used in control cabinets, moving air around drives and controllers to address heat trapped inside the enclosure. The fan gives OEM equipment a planned airflow route, supports reliable control-system duty and helps reduce localized heat.

Power Supplies

Fulltech UF-15P23BWH supports power supplies, where airflow across power-conversion components helps manage conversion losses. The fan contributes to dependable power delivery by moving heat away from critical areas and maintaining a planned ventilation path within the equipment.

Industrial Instruments

Fulltech UF-15P23BWH is used in industrial instruments, moving air around sensitive internal electronics to address localized thermal buildup. The fan gives OEM equipment a planned airflow route, supports measurement and control stability and helps reduce localized heat.

Frequently Asked Questions

What installation checks apply to UF-15P23BWH?

Keep inlet and outlet clear, secure the frame without distortion, follow the documented connection method, and verify voltage before energizing.

How can UF-15P23BWH help manage operating cost?

Use its listed 332 m³/h maximum airflow at 3100 rpm to avoid oversizing and compare power input with the required duty point. System-level savings depend on airflow resistance and run time.

How does noise affect selection of UF-15P23BWH?

The listed noise value is 55 dB. Compare it at the intended duty point and installation distance because enclosure acoustics can change the result.

What connection style is documented for UF-15P23BWH?

A lead-wire connection is specified. Follow the matching wiring diagram and isolate power before installation or maintenance.

What equipment is UF-15P23BWH intended to cool?

It is documented for control cabinets, power supplies, instruments, and compact industrial enclosures. Confirm the 150 × 172 × 51 mm envelope and airflow path against the host equipment.
