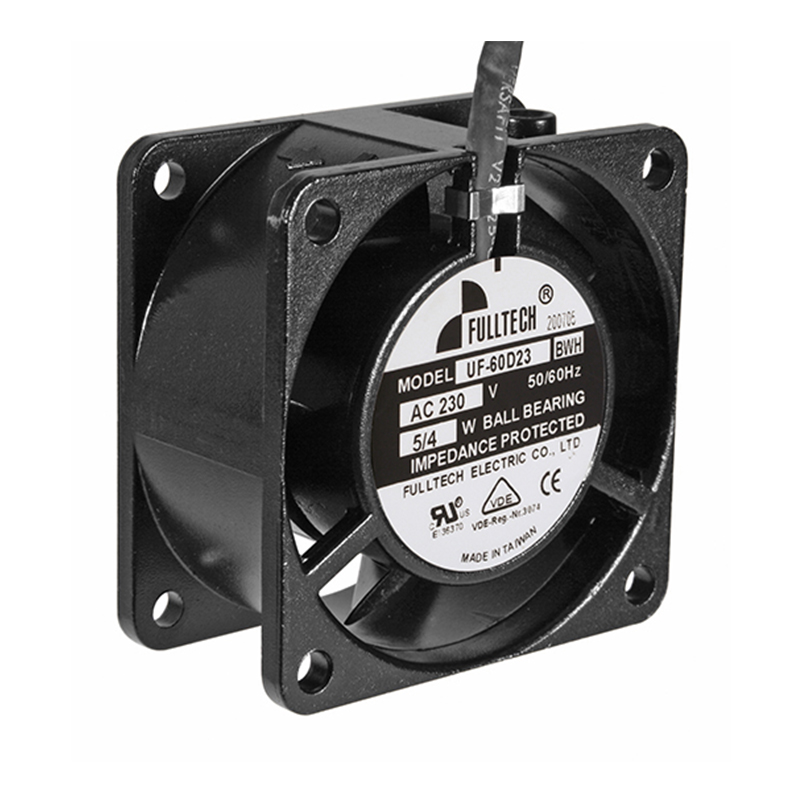

UF-60D23BWH FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-60D23BWH | Fulltech 230VAC 5W AC Axial Fan for Control Cabinet and Power Supply Cooling

Type:: Axial Fans

Industry:: Automation

Description:: Specified for industrial cabinets and power supplies, UF-60D23BWH pairs a 60 × 60 × 30 mm footprint with 230 VAC AC axial fan operation. Its die-cast aluminum frame is the representative structural feature; ball bearings and lead-wire connection are also documented. Rated data: 5 W input, up to 17 m³/h, 3100 rpm, 28 dB.

Datasheet:: UF-60D23BWH | Fulltech 230VAC 5W AC Axial Fan for Control Cabinet and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	606030
Max.Air Flow(m³/h)	17
Input Power(W)	5
Speed(rpm)	3100
Noise(db)	28

Product Features

Low Noise Cooling

The Fulltech UF-60D23BWH is an AC axial fan developed for industrial electronic equipment. Its forced-air design supports stable heat removal where natural convection cannot protect enclosed components.

The 17 m3/h maximum airflow supports active heat removal. Designers should compare the fan curve with the finished air path rather than select from free-air delivery alone. The lead-wire connection distinguishes the installation interface, helping OEM teams align wiring access with cabinet assembly and service requirements.

The UF-60D23BWH suits OEM engineers, equipment manufacturers and maintenance buyers seeking a reliable Fulltech fan. Confirm the complete suffix, connection, mounting and ambient limits before approval.

Application Industry

Industrial Electronics

Fulltech UF-60D23BWH supports industrial electronic equipment, where airflow across electronic assemblies helps manage continuous component heat. The fan contributes to stable equipment operation by moving heat away from critical areas and maintaining a planned ventilation path within the equipment.

Control Cabinets

Fulltech UF-60D23BWH is used in control cabinets, moving air around drives and controllers to address heat trapped inside the enclosure. The fan gives OEM equipment a planned airflow route, supports reliable control-system duty and helps reduce localized heat.

Power Supplies

Applied in power supplies, Fulltech UF-60D23BWH provides forced airflow around power-conversion components. These systems require reliable ventilation to handle conversion losses; the fan supports dependable power delivery and gives OEM designers a practical equipment-cooling solution.

Industrial Instruments

Fulltech UF-60D23BWH is used in industrial instruments, moving air around sensitive internal electronics to address localized thermal buildup. The fan gives OEM equipment a planned airflow route, supports measurement and control stability and helps reduce localized heat.

Frequently Asked Questions

Does UF-60D23BWH use a ball-bearing design?

Yes. Ball bearings are listed in the supplied model reference; installation temperature and loading still influence service life.

How should procurement confirm availability for UF-60D23BWH?

Stock and lead time can change. Confirm the exact model suffix, quantity, and required delivery date with the supplier before ordering.

Does UF-60D23BWH support speed control?

Speed-control capability is not stated in the supplied reference. Use the rated supply and confirm any controller with the datasheet or supplier before installation.

How should UF-60D23BWH be matched to an enclosure?

Check the 60 × 60 × 30 mm dimensions, 17 m³/h maximum airflow at 3100 rpm, available mounting space, system resistance, and required ventilation duty.

Is UF-60D23BWH suitable for high-reliability thermal management?

Its ball-bearing construction and documented motor protection support industrial cooling use. Reliability still depends on correct sizing, clean airflow, and operation within ratings.
