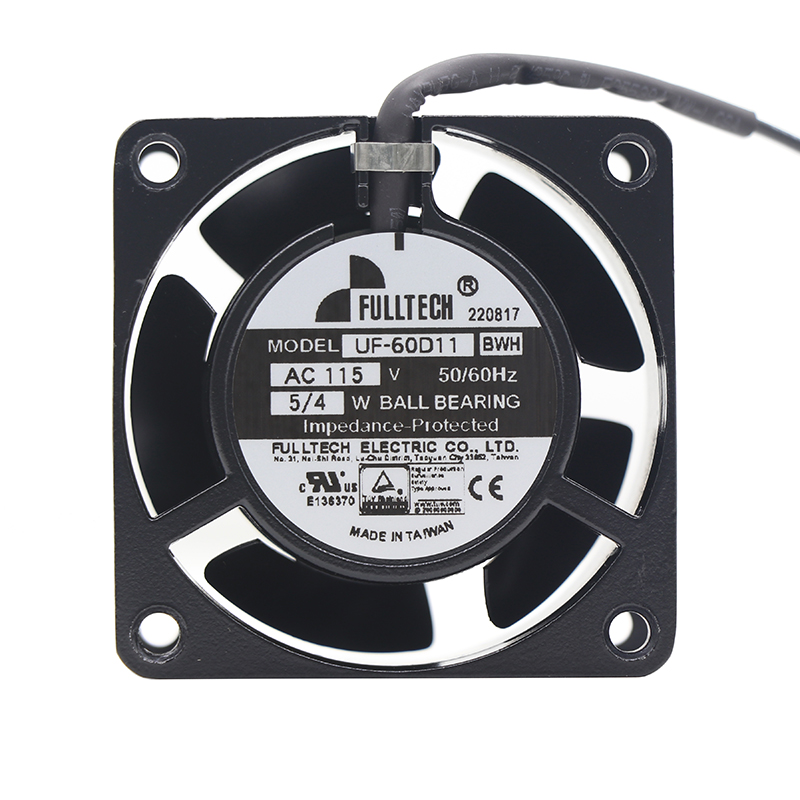

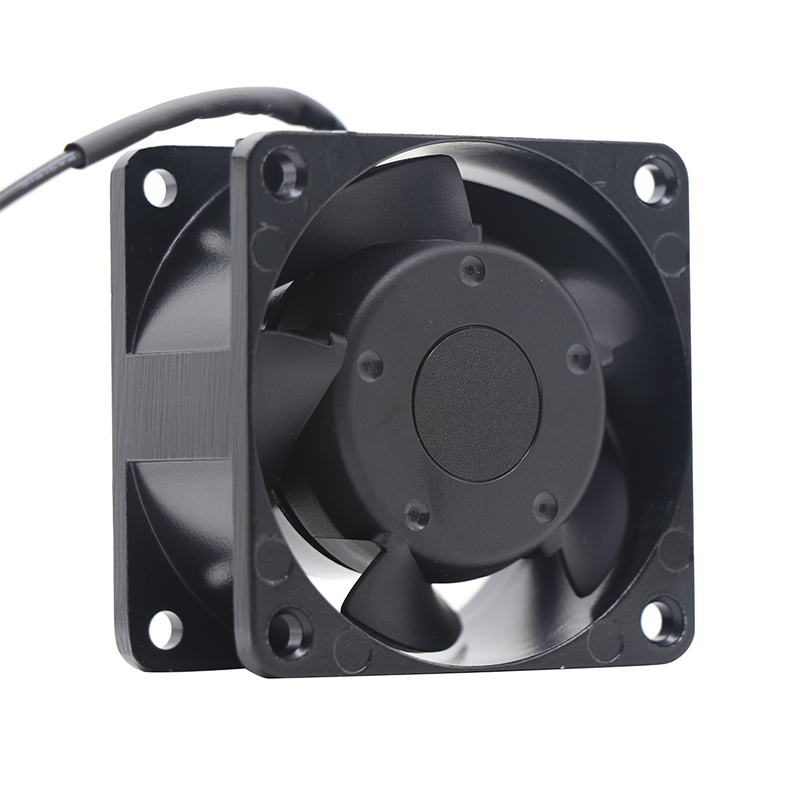

UF-60D11BWH FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-60D11BWH | Fulltech 115VAC 4W AC Axial Fan for Control Cabinet and Power Supply Cooling

Type:: Axial Fans

Industry:: Automation

Description:: UF-60D11BWH addresses industrial cabinets and power supplies as a 115 VAC AC axial fan housed in a 60 × 60 × 30 mm frame. Ball-bearing construction is the central durability detail, paired with lead-wire connection and motor protection. Rated data: 4 W input, up to 17 m³/h, 3000 rpm, 28 dB.

Datasheet:: UF-60D11BWH | Fulltech 115VAC 4W AC Axial Fan for Control Cabinet and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	115
Size(mm)	606030
Max.Air Flow(m³/h)	17
Input Power(W)	4
Speed(rpm)	3000
Noise(db)	28

Product Features

Low Noise Cooling

Fulltech UF-60D11BWH supports control cabinets with AC axial fan cooling. The design helps move warm air out of confined equipment spaces before heat affects nearby components.

A listed air-delivery ceiling of 17 m3/h supports thermal planning for the target equipment. Clear inlet space and a defined outlet reduce avoidable flow loss. Ball-bearing construction supports rotational stability and a long-life fan design; the series guidance states more than 40,000 hours at 40°C under its defined conditions.

The UF-60D11BWH suits OEM engineers, equipment manufacturers and maintenance buyers seeking a reliable Fulltech fan. Confirm the complete suffix, connection, mounting and ambient limits before approval.

Application Industry

Industrial Electronics

Fulltech UF-60D11BWH is used in industrial electronic equipment, moving air around electronic assemblies to address continuous component heat. The fan gives OEM equipment a planned airflow route, supports stable equipment operation and helps reduce localized heat.

Control Cabinets

Fulltech UF-60D11BWH is used in control cabinets, moving air around drives and controllers to address heat trapped inside the enclosure. The fan gives OEM equipment a planned airflow route, supports reliable control-system duty and helps reduce localized heat.

Power Supplies

For power supplies, Fulltech UF-60D11BWH helps direct air across power-conversion components. Managing conversion losses is important to dependable power delivery, so the fan supports continuous heat removal and a defined circulation route for equipment manufacturers and service buyers.

Industrial Instruments

Fulltech UF-60D11BWH is used in industrial instruments, moving air around sensitive internal electronics to address localized thermal buildup. The fan gives OEM equipment a planned airflow route, supports measurement and control stability and helps reduce localized heat.

Frequently Asked Questions

Can UF-60D11BWH be used for continuous-duty cooling?

The reference specifies ball bearings and cites a general service-life basis above 40,000 hours at 40°C for this fan family. Actual life depends on temperature, loading, and maintenance.

What installation checks apply to UF-60D11BWH?

Keep inlet and outlet clear, secure the frame without distortion, follow the documented connection method, and verify voltage before energizing.

How can UF-60D11BWH help manage operating cost?

Use its listed 17 m³/h maximum airflow at 3000 rpm to avoid oversizing and compare power input with the required duty point. System-level savings depend on airflow resistance and run time.

How does noise affect selection of UF-60D11BWH?

The listed noise value is 28 dB. Compare it at the intended duty point and installation distance because enclosure acoustics can change the result.

What connection style is documented for UF-60D11BWH?

A lead-wire connection is specified. Follow the matching wiring diagram and isolate power before installation or maintenance.

What equipment is UF-60D11BWH intended to cool?

It is documented for control cabinets, power supplies, instruments, and compact industrial enclosures. Confirm the 60 × 60 × 30 mm envelope and airflow path against the host equipment.

Related Products

UF-15KM23BWH | Fulltech 230VAC 42W AC Axial Fan for Control Cabinet and Power Supply Cooling

The 150 × 172 × 55 mm UF-15KM23BWH brings 230 VAC AC axial fan ventilation to industrial cabinets and power supplies. Its die-cast aluminum frame is the representative structural feature; ball bearings and lead-wire connection are also documented. Rated data: 42 W input, up to 391 m³/h, 3250 rpm, 53 dB.

UF-60D23BWH | Fulltech 230VAC 5W AC Axial Fan for Control Cabinet and Power Supply Cooling

Specified for industrial cabinets and power supplies, UF-60D23BWH pairs a 60 × 60 × 30 mm footprint with 230 VAC AC axial fan operation. Its die-cast aluminum frame is the representative structural feature; ball bearings and lead-wire connection are also documented. Rated data: 5 W input, up to 17 m³/h, 3100 rpm, 28 dB.

UF-80A12/23BWH | Fulltech 120/230VAC 12W AC Axial Fan for Control Cabinet and Power Supply Cooling

The 80 × 80 × 38 mm UF-80A12/23BWH brings 120/230 VAC AC axial fan ventilation to industrial cabinets and power supplies. Motor protection is a key selection detail, supported by a die-cast frame, ball bearings, and lead-wire connection. Rated data: 12 W input, up to 51 m³/h, 3000 rpm, 36 dB.

UF-92B23BWH | Fulltech 230VAC 14W AC Axial Fan for Control Cabinet and Power Supply Cooling

industrial cabinets and power supplies is the target duty for UF-92B23BWH, a 230 VAC AC axial fan measuring 92 × 92 × 25 mm. Lead-wire connection distinguishes this version, alongside a die-cast frame, ball bearings, and protection. Rated data: 14 W input, up to 68 m³/h, 3000 rpm, 36 dB.

UF-15PC23BWH | Fulltech 230VAC 29W AC Axial Fan for HVAC and Industrial Equipment Cooling

The 150 × 172 × 51 mm UF-15PC23BWH brings 230 VAC AC axial fan ventilation to HVAC and industrial cooling. Its documented capacitor-start operation differentiates the design; the fan also uses a die-cast frame and ball bearings. Rated data: 29 W input, up to 388 m³/h, 3400 rpm, 58 dB. Its stated size and electrical data support system comparison.

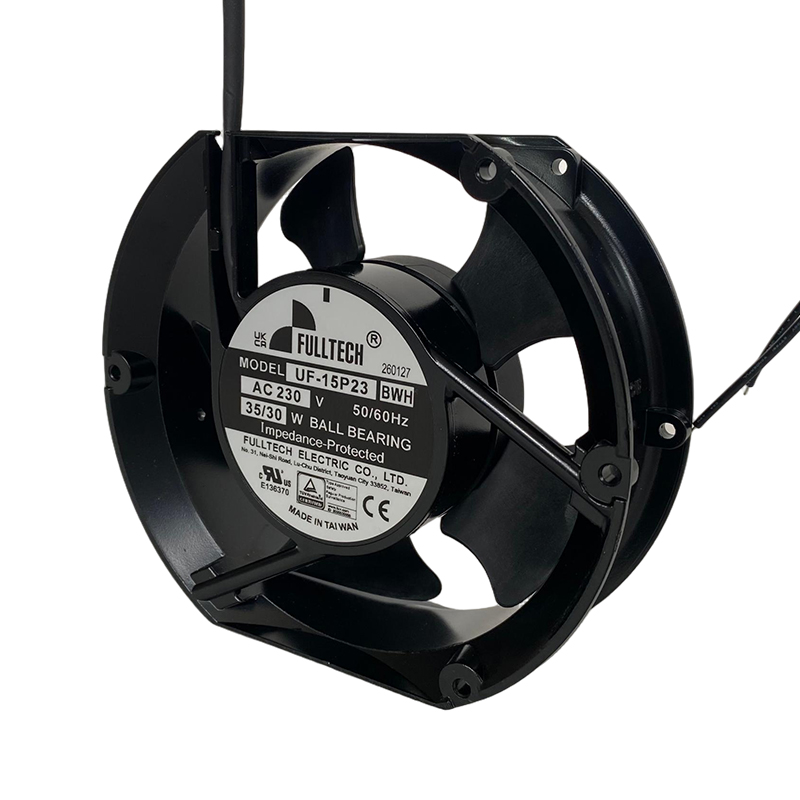

UF-15P23BWH | Fulltech 230VAC 30W AC Axial Fan for Control Cabinet and Power Supply Cooling
