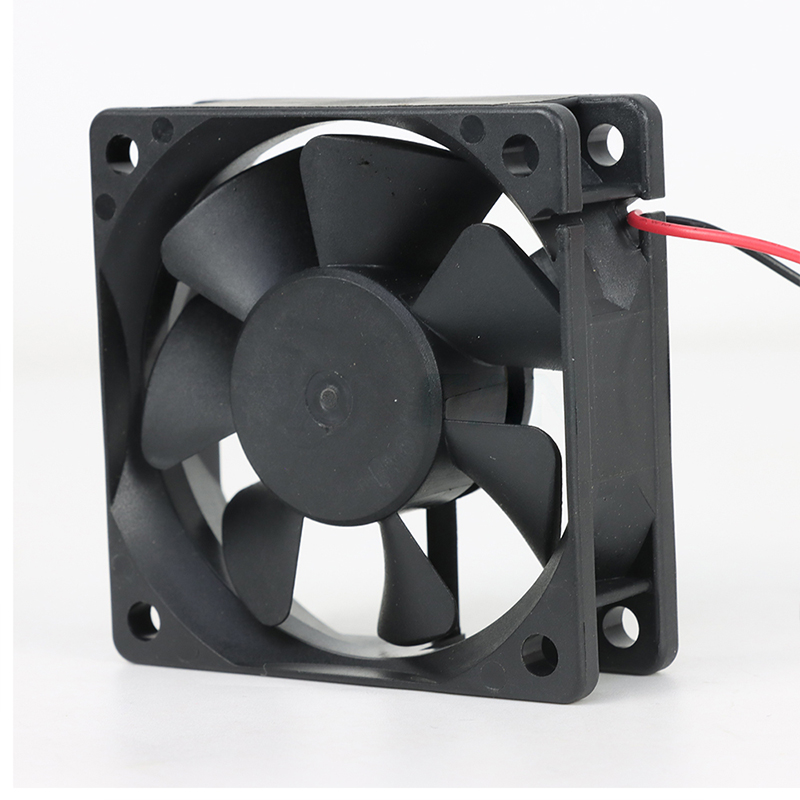

EF60202B3-000U-A99 SUNON Axial Fan

Brand :: SUNON

Model:: EF60202B3-000U-A99 | SUNON 24V 0.56W 60x60x20mm 24m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: For telecom cabinets, base stations, and network equipment, EF60202B3-000U-A99 combines 24 VDC operation with a 60 × 60 × 20 mm DC axial fan design. A listed input of 0.56 W is the model's notable electrical characteristic. Base airflow-path design on the stated speed benchmark. Obtain the applicable curve before final duty-point approval.

Datasheet:: EF60202B3-000U-A99 | SUNON 24V 0.56W 60x60x20mm 24m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	60x60x20mm
Max.Air Flow(m³/h)	24
Max.Pressure(Pa)	22.4
Input Power(W)	0.56
Speed(rpm)	3000
Noise(db)	24.5

Product Features

Low Noise Cooling

The EF60202B3-000U-A99 from SUNON addresses cooling needs in industrial equipment. As a DC brushless axial fan, it creates a defined inlet-to-outlet route across the thermal load.

The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling. Rigid mounting and clear breathing space help control vibration, flow loss and the acoustic result of the complete assembly.

OEM teams specifying EF60202B3-000U-A99 should check airflow direction and complete power-budget review during prototype approval. A documented interface review helps purchasing teams control fit, cooling continuity and replacement planning. Verify orientation so heated air does not recirculate through the inlet.

Application Industry

Industrial Equipment

SUNON EF60202B3-000U-A99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What voltage is required by EF60202B3-000U-A99?

The listed rating is 24 VDC. Verify polarity or mains frequency, wiring, and protection before commissioning.

Is EF60202B3-000U-A99 suitable for continuous operation?

The supplied product-line reference discusses long-life cooling, but continuous-duty limits for this full suffix must be verified from its datasheet and operating conditions.

What bearing information is confirmed for EF60202B3-000U-A99?

The exact bearing option is not confirmed by the row-level data. Check the complete suffix in the current SUNON specification.

Which performance figures define EF60202B3-000U-A99?

Use the listed voltage, size, 24 m³/h airflow, 3000 rpm, and 0.56 W input for preliminary comparison.

What certification information is listed for EF60202B3-000U-A99?

The workbook marks the product as RoHS compliant. Confirm UL, TUV, VDE, or other project-specific approvals for the exact suffix.
