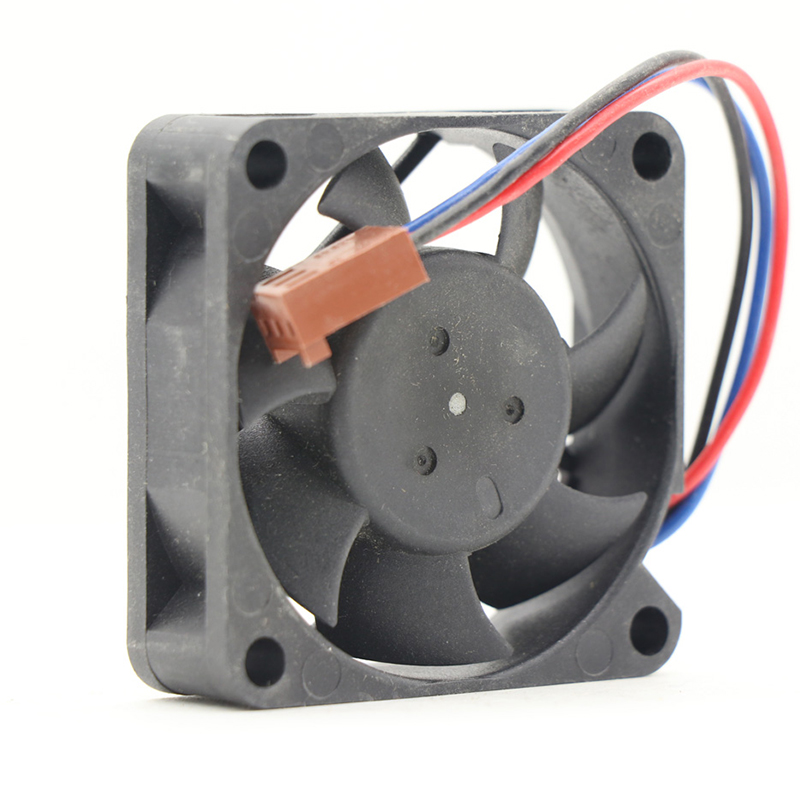

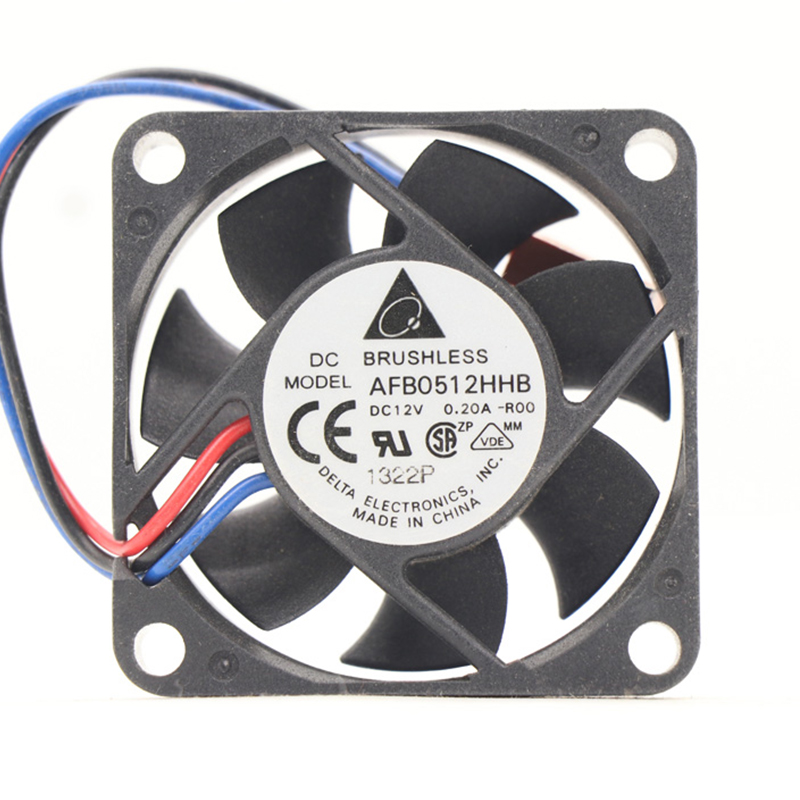

AFB0512HHB Delta Blower Fan

Brand :: Delta

Model:: AFB0512HHB | Delta Electronics 12VDC 1.56W Axial Fan for Server and Power Supply Cooling

Type:: Blower Fans

Industry:: Data Center Cooling

Description:: AFB0512HHB provides a 15 mm-deep, 50 mm axial format for servers and power supplies. The 12VDC fan is listed at 6400 rpm, with 1.56 W input and 28 m3/h maximum airflow as its operating selection points.

Datasheet:: AFB0512HHB | Delta Electronics 12VDC 1.56W Axial Fan for Server and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	505015
Max.Air Flow(m³/h)	28
Input Power(W)	1.56
Speed(rpm)	6400
Noise(db)	36

Product Features

Compact DC Cooling

Equipment manufacturers evaluating telecommunications equipment can consider Delta AFB0512HHB, a brushless DC axial fan. The fan supports heat removal by keeping air moving through the selected cooling path.

The 12 V DC supply requirement gives electrical designers a clear basis for matching the fan to the equipment power architecture. The axial layout moves air along the fan axis, supporting a direct ventilation route through the equipment opening. Matching the fan curve to the finished air path supports efficient cooling; free-air flow alone does not determine installed performance.

This fan is a practical candidate for equipment builders and service teams when its verified duty point and mounting interface match the finished system.

Application Industry

Server & Storage

Delta AFB0512HHB serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

For power-supply equipment, Delta AFB0512HHB provides equipment cooling around power-conversion components. Managing electrical conversion losses helps maintain dependable power delivery.

Telecommunications

In telecommunications equipment, air movement helps handle continuous communication duty. Delta AFB0512HHB supports cooling around densely arranged electronic assemblies, contributing to service continuity.

Industrial Controls

Delta AFB0512HHB supports cooling in industrial control equipment. Air circulation around controllers and electronic modules helps manage heat accumulated within enclosures, supporting stable automation operation.

Frequently Asked Questions

Why choose AFB0512HHB over a general-purpose fan?

AFB0512HHB provides a defined axial fan format with a listed 6400 rpm speed in a 50 x 50 x 15 mm size. Compare its fan curve with the actual duty point rather than assuming a universal advantage.

How should noise from AFB0512HHB be evaluated?

The listed noise value is 36 dB, but compare values only under matching test conditions. Installed noise also depends on speed, restriction, resonance and enclosure geometry.

What installation space is required for AFB0512HHB?

The workbook lists 50 x 50 x 15 mm. Confirm overall depth, hole pattern, connector clearance and guard or inlet-ring dimensions in the exact mechanical drawing.

What equipment is AFB0512HHB intended to cool?

AFB0512HHB is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

Is AFB0512HHB suitable for a high-reliability cooling system?

Suitability depends on thermal margin, operating temperature, alarm or feedback requirements and system redundancy. Qualify AFB0512HHB at the actual duty point; the model name alone is not a reliability guarantee.

Can AFB0512HHB reduce total ownership cost?

The provided parameters do not prove a cost saving. Compare purchase price, power at the real operating point, service access, expected life and downtime risk for the complete cooling system.
