AFB0624MB Delta Blower Fan

Brand :: Delta

Model:: AFB0624MB | Delta Electronics 24VDC 1.44W Axial Fan for Server and Power Supply Cooling

Type:: Blower Fans

Industry:: Data Center Cooling

Description:: A 1.44 W input makes AFB0624MB a lower-input entry among the listed 24VDC axial fan fans. For server and power-supply ventilation, it provides a 60 x 60 x 15 mm format with a specified 4000 rpm rotor.

Datasheet:: AFB0624MB | Delta Electronics 24VDC 1.44W Axial Fan for Server and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	60x60x15
Max.Air Flow(m³/h)	26.1
Max.Pressure(Pa)	38.54
Input Power(W)	1.44
Speed(rpm)	4000
Noise(db)	32

Product Features

Quiet Duty Cooling

Designed for power-supply equipment, Delta AFB0624MB brings brushless DC axial fan integration to thermally loaded assemblies. Its role is to move cooling air across components during equipment operation.

Its listed 60x60x15 mm format defines the space needed for installation, helping designers reserve room for adjacent components and cable routing. The axial layout moves air along the fan axis, supporting a direct ventilation route through the equipment opening. Matching the fan curve to the finished air path supports efficient cooling; free-air flow alone does not determine installed performance.

For system integrators, a confirmed operating point and exact interface match provide the basis for stable cooling and dependable replacement planning.

Application Industry

Server & Storage

Delta AFB0624MB serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

In power-supply equipment, Delta AFB0624MB helps remove heat from power-conversion components. The cooling solution addresses electrical conversion losses to support dependable power delivery.

Telecommunications

For telecommunications equipment, Delta AFB0624MB provides equipment cooling around densely arranged electronic assemblies. Managing continuous communication duty helps maintain service continuity.

Industrial Controls

In industrial control equipment, air movement helps handle heat accumulated within enclosures. Delta AFB0624MB supports cooling around controllers and electronic modules, contributing to stable automation operation.

Frequently Asked Questions

What equipment is AFB0624MB intended to cool?

AFB0624MB is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

What power figure is listed for AFB0624MB?

1.44 W is shown in the filter data. Check whether the corresponding datasheet defines it as rated, free-air or maximum-load input before sizing the power source.

Is AFB0624MB suitable for a high-reliability cooling system?

Suitability depends on thermal margin, operating temperature, alarm or feedback requirements and system redundancy. Qualify AFB0624MB at the actual duty point; the model name alone is not a reliability guarantee.

Does AFB0624MB support speed control?

The filter data does not confirm a control interface. Check the exact-model datasheet and wiring for PWM, analog control, FG/RD feedback or fixed-speed operation before connection.

What should be checked if AFB0624MB fails to start?

Isolate power first. Verify the approved supply, connector, polarity or phase, control-enable input and any obstruction; follow the exact specification and do not bypass protection circuits.

Related Products

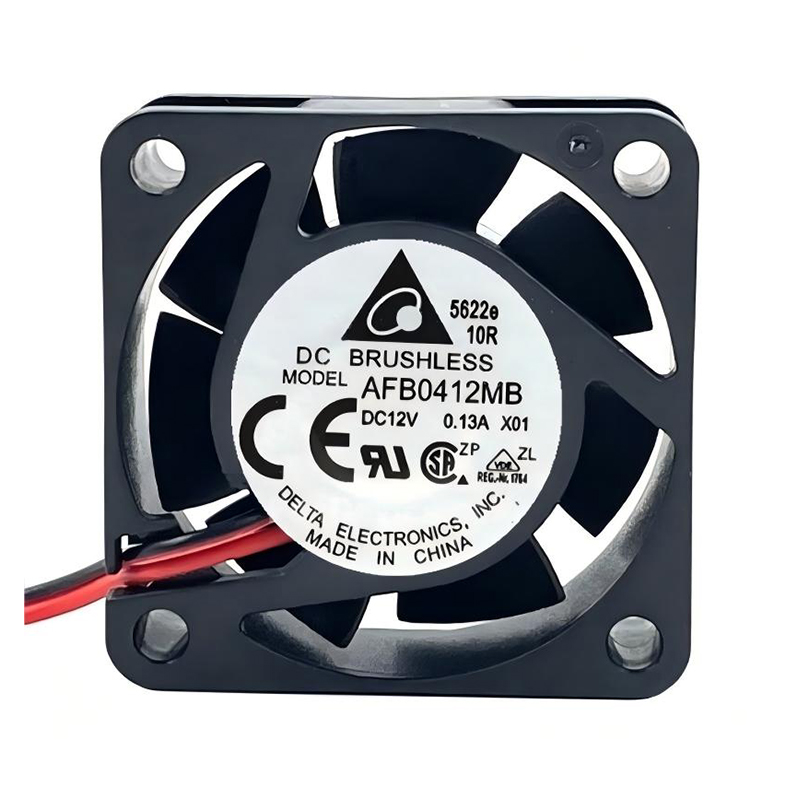

AFB0412MB | Delta Electronics 12VDC 1.08W Axial Fan for Server and Power Supply Cooling

AFB0412MB is a 12VDC axial fan for power supplies and server electronics, specified at 6000 rpm. The 40 x 40 x 15 mm model lists a 1.08 W input, distinguishing it from faster 40 mm variants in the supplied set.

AFB1224EHE-C | Delta Electronics 24VDC 20.4W Axial Fan for Server and Power Supply Cooling

The 210.2 Pa maximum-pressure entry is a key reason to evaluate AFB1224EHE-C for power-supply ventilation. This 24VDC axial fan occupies a 120 x 120 x 38 mm space; final selection still depends on the duty point.

AFB0612HH-A | Delta Electronics 12VDC 2.04W Axial Fan for Server and Power Supply Cooling

AFB0612HH-A combines a 5000 rpm rotor with a 12VDC axial fan motor for server and power-supply cooling. Its listed 2.04 W input and 74 Pa maximum static pressure accompany a 60 x 60 x 25.4 mm frame.

AFB1224GHE-C | Delta Electronics 24VDC 27.6W Axial Fan for Server and Power Supply Cooling

AFB1224GHE-C is a 24VDC axial fan for server chassis, with 409.7 m3/h listed maximum airflow. Its 27.6 W input differs from the 12VDC GHE entry; retain the -C suffix when checking connector and control configuration.

AFB0912HH | Delta Electronics 12VDC 3W Axial Fan for Server, Storage and Power Supply Cooling

AFB0912HH supports storage-enclosure cooling with a 12VDC axial fan design. At 3200 rpm and 3 W listed input, it represents a distinct operating choice among the supplied 92 mm fans, with a specified 25.4 mm depth.

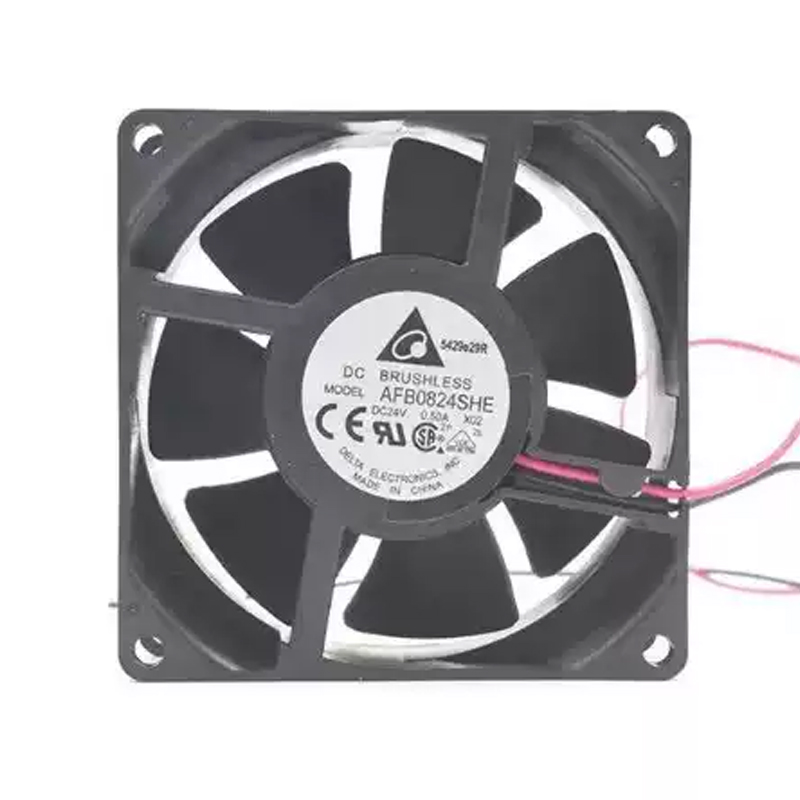

AFB0824SHE | Delta Electronics 24VDC 8.4W Axial Fan for Server and Power Supply Cooling
