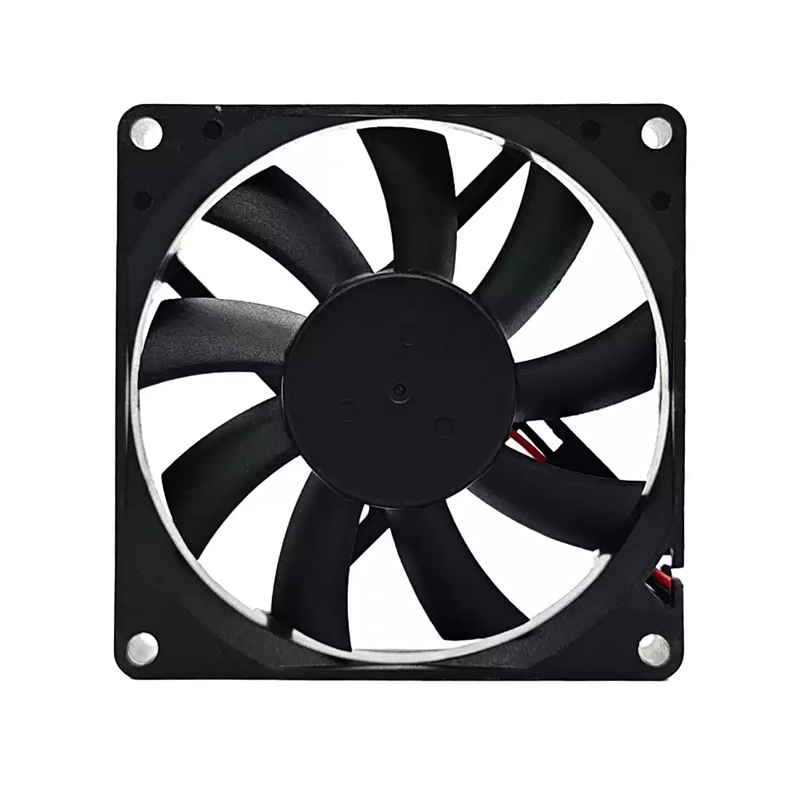

AFB0824HHB Delta Blower Fan

Brand :: Delta

Model:: AFB0824HHB | Delta Electronics 24VDC 2.4W Axial Fan for Server and Power Supply Cooling

Type:: Blower Fans

Industry:: Data Center Cooling

Description:: An 80 x 80 x 15 mm axial layout distinguishes AFB0824HHB for server and power-supply cooling. The 24VDC fan is listed at 3400 rpm and 2.4 W, with 60.6 m3/h maximum airflow for comparing enclosure options.

Datasheet:: AFB0824HHB | Delta Electronics 24VDC 2.4W Axial Fan for Server and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	808015
Max.Air Flow(m³/h)	60.6
Max.Pressure(Pa)	39.5
Input Power(W)	2.4
Speed(rpm)	3400
Noise(db)	37

Product Features

DC Equipment Cooling

AFB0824HHB is a Delta cooling solution for server and storage equipment. This brushless DC axial fan gives designers a practical means of circulating air through a thermally loaded equipment section.

The listed 2.4 W input is relevant to supply sizing and the system energy budget; actual consumption depends on the operating duty. The series combines ball-bearing construction with UL 94V-0 materials, addressing mechanical durability and component flammability requirements. Good inlet spacing helps reduce turbulence, which matters when balancing usable cooling capacity against installed sound levels.

This fan is a practical candidate for equipment builders and service teams when its verified duty point and mounting interface match the finished system.

Application Industry

Server & Storage

Delta AFB0824HHB serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

In power-supply equipment, air movement helps handle electrical conversion losses. Delta AFB0824HHB supports cooling around power-conversion components, contributing to dependable power delivery.

Telecommunications

Delta AFB0824HHB supports cooling in telecommunications equipment. Air circulation around densely arranged electronic assemblies helps manage continuous communication duty, supporting service continuity.

Industrial Controls

In industrial control equipment, Delta AFB0824HHB helps remove heat from controllers and electronic modules. The cooling solution addresses heat accumulated within enclosures to support stable automation operation.

Frequently Asked Questions

What equipment is AFB0824HHB intended to cool?

AFB0824HHB is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

What maximum airflow is listed for AFB0824HHB?

The workbook lists a maximum airflow of 60.6 m3/h. This is not the airflow at every system resistance; use the applicable pressure-flow curve to identify the installed operating point.

How should noise from AFB0824HHB be evaluated?

The listed noise value is 37 dB, but compare values only under matching test conditions. Installed noise also depends on speed, restriction, resonance and enclosure geometry.

What power figure is listed for AFB0824HHB?

2.4 W is shown in the filter data. Check whether the corresponding datasheet defines it as rated, free-air or maximum-load input before sizing the power source.

What operating speed is listed for AFB0824HHB?

3400 rpm is listed in the workbook. This value alone does not establish adjustable-speed capability; confirm the control input and permitted operating range in the exact datasheet.

What supply voltage should be used for AFB0824HHB?

24VDC is listed for AFB0824HHB. Verify the allowable input range, phase, frequency where applicable, polarity and wiring diagram in the exact specification.
