AFB0912HH Delta Blower Fan

Brand :: Delta

Model:: AFB0912HH | Delta Electronics 12VDC 3W Axial Fan for Server, Storage and Power Supply Cooling

Type:: Blower Fans

Industry:: Data Center Cooling

Description:: AFB0912HH supports storage-enclosure cooling with a 12VDC axial fan design. At 3200 rpm and 3 W listed input, it represents a distinct operating choice among the supplied 92 mm fans, with a specified 25.4 mm depth.

Datasheet:: AFB0912HH | Delta Electronics 12VDC 3W Axial Fan for Server, Storage and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	92x92x25.4
Max.Air Flow(m³/h)	98.4
Max.Pressure(Pa)	55.11
Input Power(W)	3
Speed(rpm)	3200
Noise(db)	38

Product Features

DC Equipment Cooling

Equipment manufacturers evaluating telecommunications equipment can consider Delta AFB0912HH, a brushless DC axial fan. The fan supports heat removal by keeping air moving through the selected cooling path.

Its listed 92x92x25.4 mm format defines the space needed for installation, helping designers reserve room for adjacent components and cable routing. The series uses ball-bearing motor support for rotational durability, giving OEMs a service-life-oriented construction for equipment cooling. The mounting arrangement and duct transitions should preserve the intended air path so cooling is not lost to leakage or recirculation.

For procurement, retain the complete model code and check the interface against the drawing; this supports repeatable assembly and accurate replacement ordering.

Application Industry

Server & Storage

For server and storage equipment, Delta AFB0912HH provides equipment cooling around processors, drives and other heat-producing assemblies. Managing sustained computing loads helps maintain stable equipment temperatures.

Power Supplies

In power-supply equipment, air movement helps handle electrical conversion losses. Delta AFB0912HH supports cooling around power-conversion components, contributing to dependable power delivery.

Telecommunications

Delta AFB0912HH supports cooling in telecommunications equipment. Air circulation around densely arranged electronic assemblies helps manage continuous communication duty, supporting service continuity.

Industrial Controls

In industrial control equipment, Delta AFB0912HH helps remove heat from controllers and electronic modules. The cooling solution addresses heat accumulated within enclosures to support stable automation operation.

Frequently Asked Questions

What operating speed is listed for AFB0912HH?

3200 rpm is listed in the workbook. This value alone does not establish adjustable-speed capability; confirm the control input and permitted operating range in the exact datasheet.

Can AFB0912HH reduce total ownership cost?

The provided parameters do not prove a cost saving. Compare purchase price, power at the real operating point, service access, expected life and downtime risk for the complete cooling system.

How should noise from AFB0912HH be evaluated?

The listed noise value is 38 dB, but compare values only under matching test conditions. Installed noise also depends on speed, restriction, resonance and enclosure geometry.

What power figure is listed for AFB0912HH?

3 W is shown in the filter data. Check whether the corresponding datasheet defines it as rated, free-air or maximum-load input before sizing the power source.

Is AFB0912HH easy to install and maintain?

Serviceability depends on access, connector choice and mounting. Plan isolation and cleaning access, inspect the airflow path, and use the manufacturer's replacement guidance rather than attempting an unsupported repair.

What equipment is AFB0912HH intended to cool?

AFB0912HH is listed for Server, Storage and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

Related Products

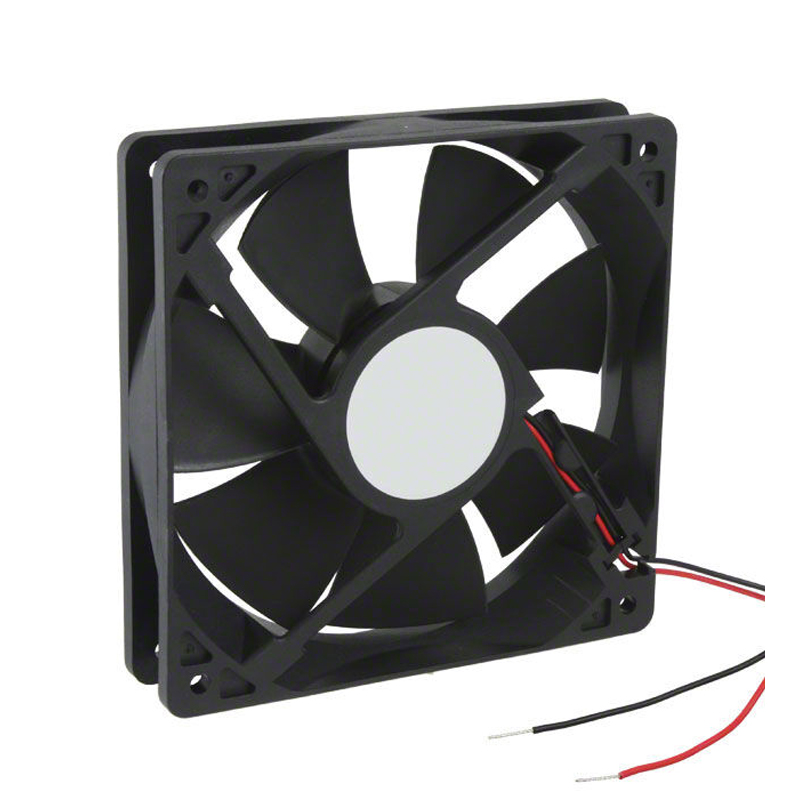

AFB1224HH | Delta Electronics 24VDC 4.32W Axial Fan for Server and Power Supply Cooling
