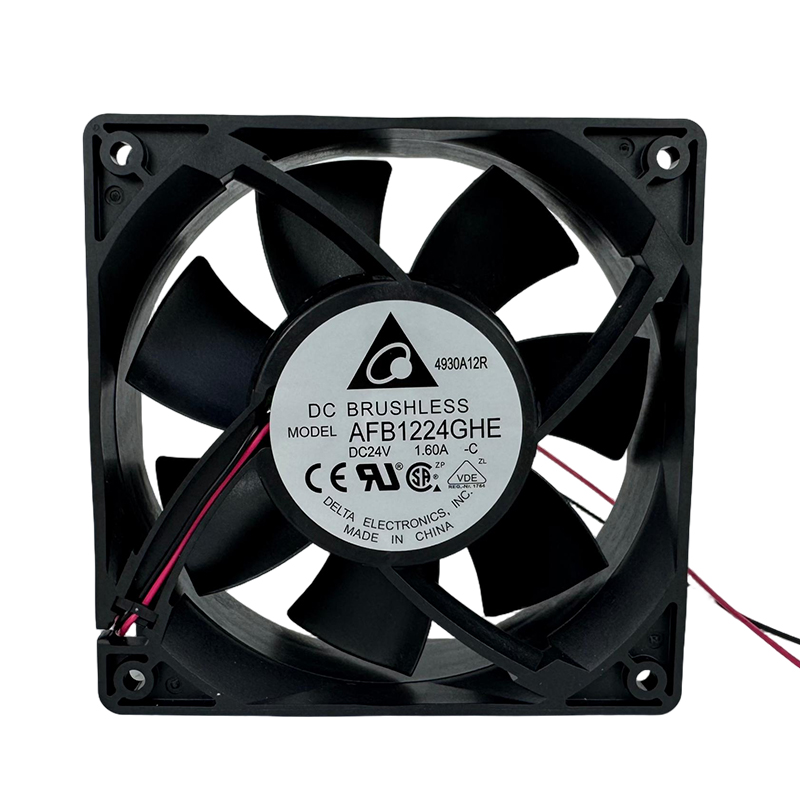

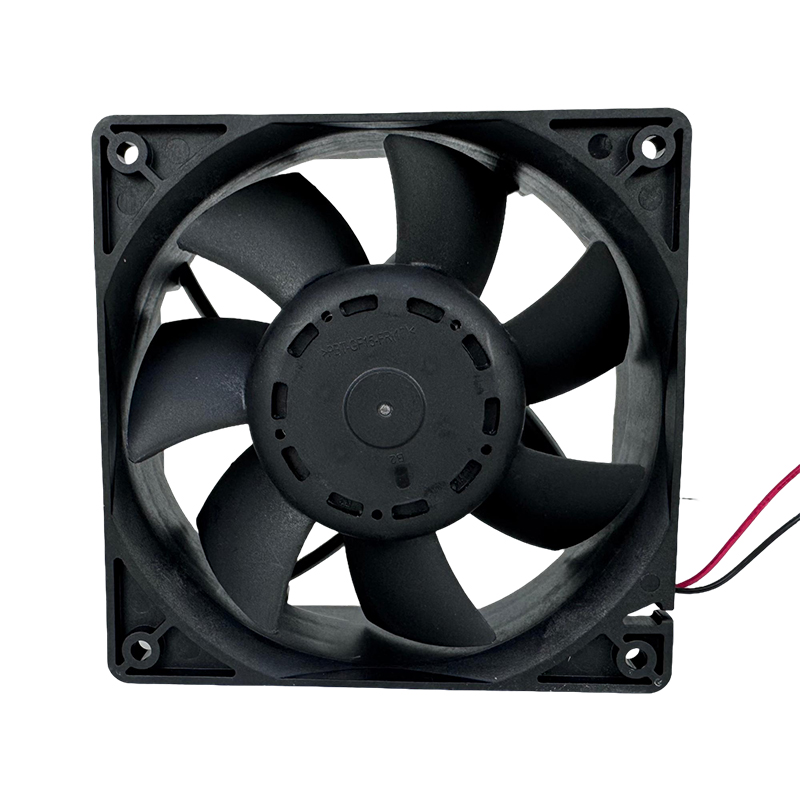

AFB1224GHE-C Delta Blower Fan

Brand :: Delta

Model:: AFB1224GHE-C | Delta Electronics 24VDC 27.6W Axial Fan for Server and Power Supply Cooling

Type:: Blower Fans

Industry:: Data Center Cooling

Description:: AFB1224GHE-C is a 24VDC axial fan for server chassis, with 409.7 m3/h listed maximum airflow. Its 27.6 W input differs from the 12VDC GHE entry; retain the -C suffix when checking connector and control configuration.

Datasheet:: AFB1224GHE-C | Delta Electronics 24VDC 27.6W Axial Fan for Server and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	12012038
Max.Air Flow(m³/h)	409.7
Input Power(W)	27.6
Speed(rpm)	5200
Noise(db)	62

Product Features

DC Equipment Cooling

The Delta AFB1224GHE-C is a brushless DC axial fan for server and storage equipment. It provides a defined airflow path where equipment layout leaves limited room for passive heat removal.

The listed 27.6 W input is relevant to supply sizing and the system energy budget; actual consumption depends on the operating duty. The axial layout moves air along the fan axis, supporting a direct ventilation route through the equipment opening. The mounting arrangement and duct transitions should preserve the intended air path so cooling is not lost to leakage or recirculation.

For OEM design-in and replacement sourcing, confirm the full suffix, connector and mounting pattern to support dependable service in the intended assembly.

Application Industry

Server & Storage

Delta AFB1224GHE-C serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

Delta AFB1224GHE-C supports cooling in power-supply equipment. Air circulation around power-conversion components helps manage electrical conversion losses, supporting dependable power delivery.

Telecommunications

In telecommunications equipment, Delta AFB1224GHE-C helps remove heat from densely arranged electronic assemblies. The cooling solution addresses continuous communication duty to support service continuity.

Industrial Controls

For industrial control equipment, Delta AFB1224GHE-C provides equipment cooling around controllers and electronic modules. Managing heat accumulated within enclosures helps maintain stable automation operation.

Frequently Asked Questions

How should noise from AFB1224GHE-C be evaluated?

The listed noise value is 62 dB, but compare values only under matching test conditions. Installed noise also depends on speed, restriction, resonance and enclosure geometry.

What should be checked when installing AFB1224GHE-C?

Allow for the listed 120 x 120 x 38 mm size and follow the exact mounting drawing. Keep inlet and outlet clear, use the specified fasteners and verify wiring before energizing the fan.

Is AFB1224GHE-C suitable for a high-reliability cooling system?

Suitability depends on thermal margin, operating temperature, alarm or feedback requirements and system redundancy. Qualify AFB1224GHE-C at the actual duty point; the model name alone is not a reliability guarantee.

What installation space is required for AFB1224GHE-C?

The workbook lists 120 x 120 x 38 mm. Confirm overall depth, hole pattern, connector clearance and guard or inlet-ring dimensions in the exact mechanical drawing.

What maximum airflow is listed for AFB1224GHE-C?

The workbook lists a maximum airflow of 409.7 m3/h. This is not the airflow at every system resistance; use the applicable pressure-flow curve to identify the installed operating point.

What equipment is AFB1224GHE-C intended to cool?

AFB1224GHE-C is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.
