AFB1212GHE Delta Blower Fan

Brand :: Delta

Model:: AFB1212GHE | Delta Electronics 12VDC 29.4W Axial Fan for Server and Power Supply Cooling

Type:: Blower Fans

Industry:: Data Center Cooling

Description:: AFB1212GHE is the 12VDC axial fan option with a listed 29.4 W input in this 120 mm server-cooling group. The 5200 rpm specification helps distinguish its operating point from the lower-speed SHE and HHE entries.

Product Features

Rated Voltage(V)	12
Size(mm)	12012038
Max.Air Flow(m³/h)	409.7
Max.Pressure(Pa)	269.5
Input Power(W)	29.4
Speed(rpm)	5200
Noise(db)	62

Product Features

DC Equipment Cooling

Designed for power-supply equipment, Delta AFB1212GHE brings brushless DC axial fan integration to thermally loaded assemblies. Its role is to move cooling air across components during equipment operation.

The 12 V DC supply requirement gives electrical designers a clear basis for matching the fan to the equipment power architecture. The series uses ball-bearing motor support for rotational durability, giving OEMs a service-life-oriented construction for equipment cooling. Keeping inlet obstructions clear helps preserve useful airflow without spending extra power on avoidable system losses.

This fan is a practical candidate for equipment builders and service teams when its verified duty point and mounting interface match the finished system.

Application Industry

Server & Storage

Delta AFB1212GHE serves server and storage equipment, helping remove heat from processors, drives and other heat-producing assemblies. Airflow supports stable equipment temperatures.

Power Supplies

Delta AFB1212GHE supports cooling in power-supply equipment. Air circulation around power-conversion components helps manage electrical conversion losses, supporting dependable power delivery.

Telecommunications

In telecommunications equipment, Delta AFB1212GHE helps remove heat from densely arranged electronic assemblies. The cooling solution addresses continuous communication duty to support service continuity.

Industrial Controls

For industrial control equipment, Delta AFB1212GHE provides equipment cooling around controllers and electronic modules. Managing heat accumulated within enclosures helps maintain stable automation operation.

Frequently Asked Questions

What should be checked if AFB1212GHE fails to start?

Isolate power first. Verify the approved supply, connector, polarity or phase, control-enable input and any obstruction; follow the exact specification and do not bypass protection circuits.

What equipment is AFB1212GHE intended to cool?

AFB1212GHE is listed for Server and Power Supply cooling. Confirm the installed airflow demand, pressure loss and ambient conditions before approval.

Is AFB1212GHE easy to install and maintain?

Serviceability depends on access, connector choice and mounting. Plan isolation and cleaning access, inspect the airflow path, and use the manufacturer's replacement guidance rather than attempting an unsupported repair.

What installation space is required for AFB1212GHE?

The workbook lists 120 x 120 x 38 mm. Confirm overall depth, hole pattern, connector clearance and guard or inlet-ring dimensions in the exact mechanical drawing.

What maximum airflow is listed for AFB1212GHE?

The workbook lists a maximum airflow of 409.7 m3/h. This is not the airflow at every system resistance; use the applicable pressure-flow curve to identify the installed operating point.

What supply voltage should be used for AFB1212GHE?

12VDC is listed for AFB1212GHE. Verify the allowable input range, phase, frequency where applicable, polarity and wiring diagram in the exact specification.

Related Products

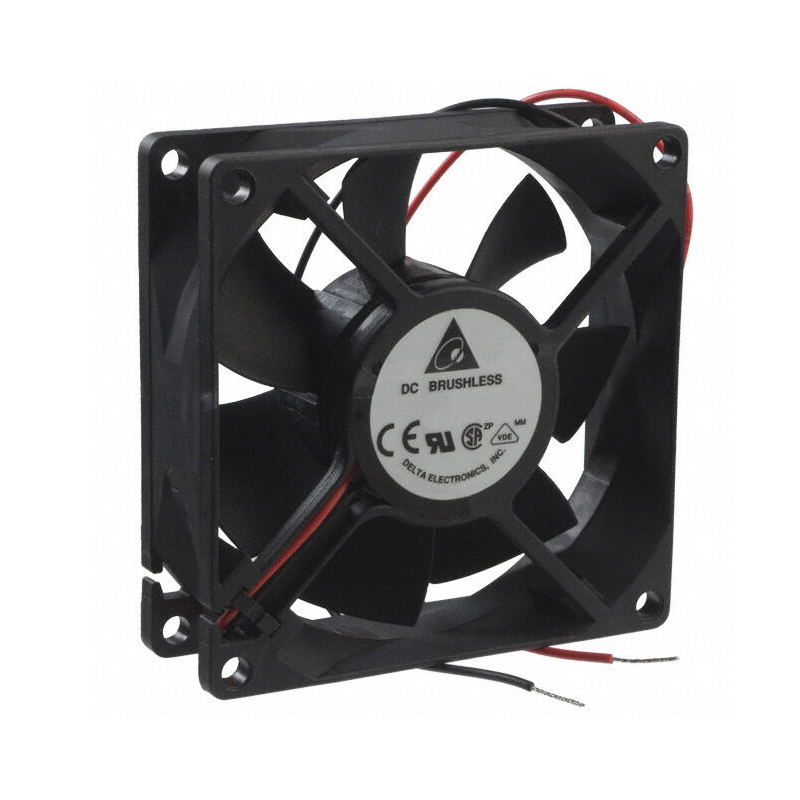

AFB0824GHE | Delta Electronics 24VDC 15.6W Axial Fan for Server and Power Supply Cooling
