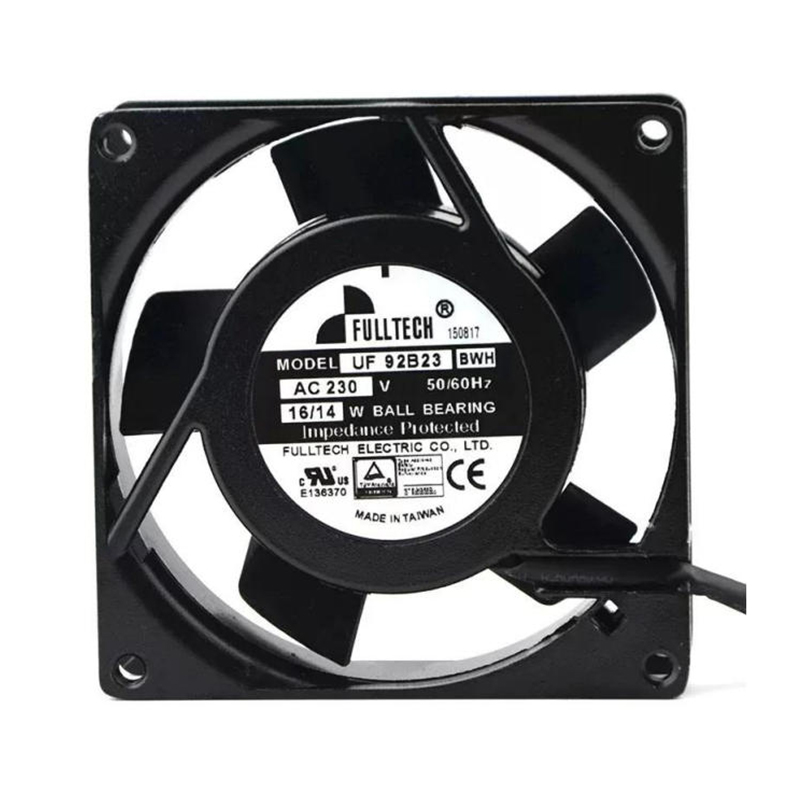

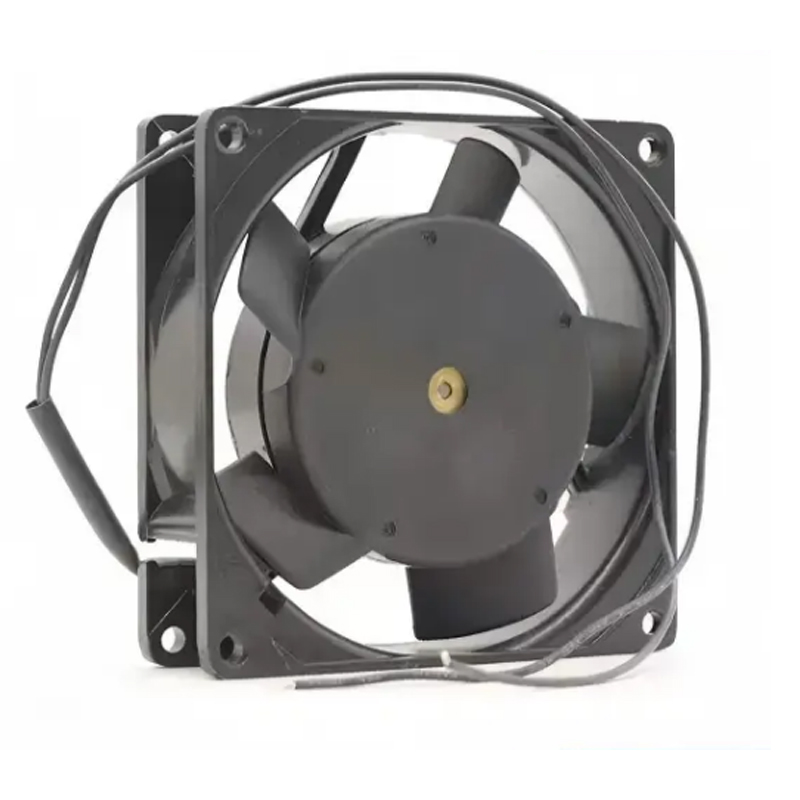

UF-92B23BWH FULLTECH Axial Fan

Brand :: FULLTECH

Model:: UF-92B23BWH | Fulltech 230VAC 14W AC Axial Fan for Control Cabinet and Power Supply Cooling

Type:: Axial Fans

Industry:: Automation

Description:: industrial cabinets and power supplies is the target duty for UF-92B23BWH, a 230 VAC AC axial fan measuring 92 × 92 × 25 mm. Lead-wire connection distinguishes this version, alongside a die-cast frame, ball bearings, and protection. Rated data: 14 W input, up to 68 m³/h, 3000 rpm, 36 dB.

Datasheet:: UF-92B23BWH | Fulltech 230VAC 14W AC Axial Fan for Control Cabinet and Power Supply Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	929225
Max.Air Flow(m³/h)	68
Input Power(W)	14
Speed(rpm)	3000
Noise(db)	36

Product Features

Low Noise Cooling

Fulltech UF-92B23BWH positions an AC axial fan for control cabinets. The fan creates a controlled ventilation path across heat-producing assemblies and toward the equipment exhaust.

Its rated airflow of up to 68 m3/h gives engineers a basis for sizing enclosure air exchange, while the installed duty point must account for filters, guards and internal resistance. The aluminum die-cast frame provides rigid motor support, while the axial impeller maintains a direct equipment airflow path.

This model is appropriate for B2B buyers who need repeatable equipment cooling. Retain the full UF-92B23BWH code and check the electrical and mechanical interface before ordering. Clear access also simplifies routine cleaning of the air path.

Application Industry

Industrial Electronics

Fulltech UF-92B23BWH is used in industrial electronic equipment, moving air around electronic assemblies to address continuous component heat. The fan gives OEM equipment a planned airflow route, supports stable equipment operation and helps reduce localized heat.

Control Cabinets

Fulltech UF-92B23BWH is used in control cabinets, moving air around drives and controllers to address heat trapped inside the enclosure. The fan gives OEM equipment a planned airflow route, supports reliable control-system duty and helps reduce localized heat.

Power Supplies

For power supplies, Fulltech UF-92B23BWH helps direct air across power-conversion components. Managing conversion losses is important to dependable power delivery, so the fan supports continuous heat removal and a defined circulation route for equipment manufacturers and service buyers.

Industrial Instruments

Fulltech UF-92B23BWH is used in industrial instruments, moving air around sensitive internal electronics to address localized thermal buildup. The fan gives OEM equipment a planned airflow route, supports measurement and control stability and helps reduce localized heat.

Frequently Asked Questions

What should be checked if UF-92B23BWH stops or airflow drops?

Confirm the 230 VAC supply, wiring, obstructions, impeller freedom, and protection status. Replace or service only after isolating power.

Does UF-92B23BWH use a ball-bearing design?

Yes. Ball bearings are listed in the supplied model reference; installation temperature and loading still influence service life.

How should procurement confirm availability for UF-92B23BWH?

Stock and lead time can change. Confirm the exact model suffix, quantity, and required delivery date with the supplier before ordering.

Does UF-92B23BWH support speed control?

Speed-control capability is not stated in the supplied reference. Use the rated supply and confirm any controller with the datasheet or supplier before installation.

How should UF-92B23BWH be matched to an enclosure?

Check the 92 × 92 × 25 mm dimensions, 68 m³/h maximum airflow at 3000 rpm, available mounting space, system resistance, and required ventilation duty.

Is UF-92B23BWH suitable for high-reliability thermal management?

Its ball-bearing construction and documented motor protection support industrial cooling use. Reliability still depends on correct sizing, clean airflow, and operation within ratings.
