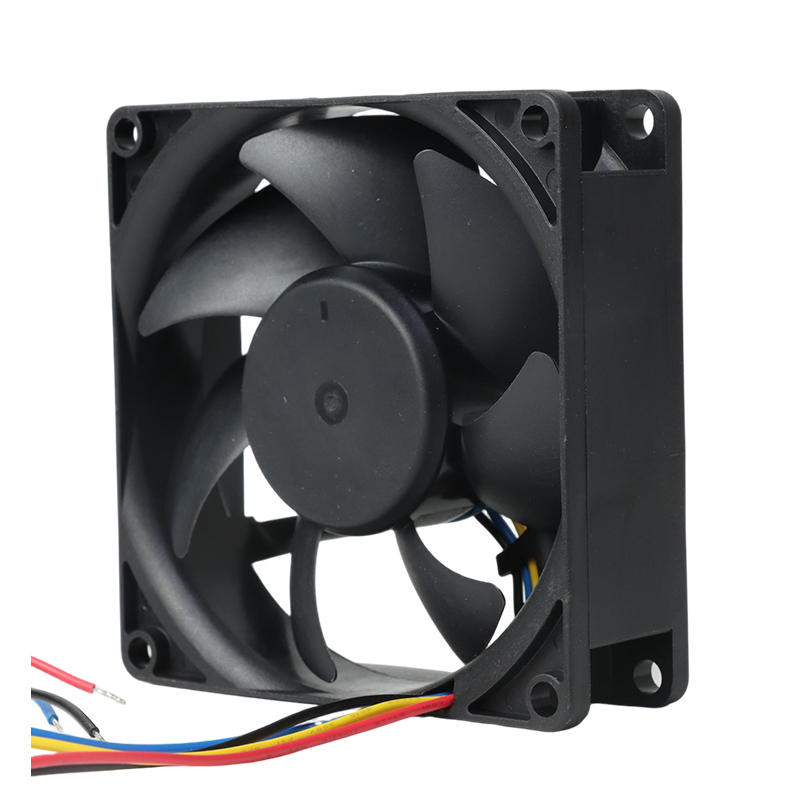

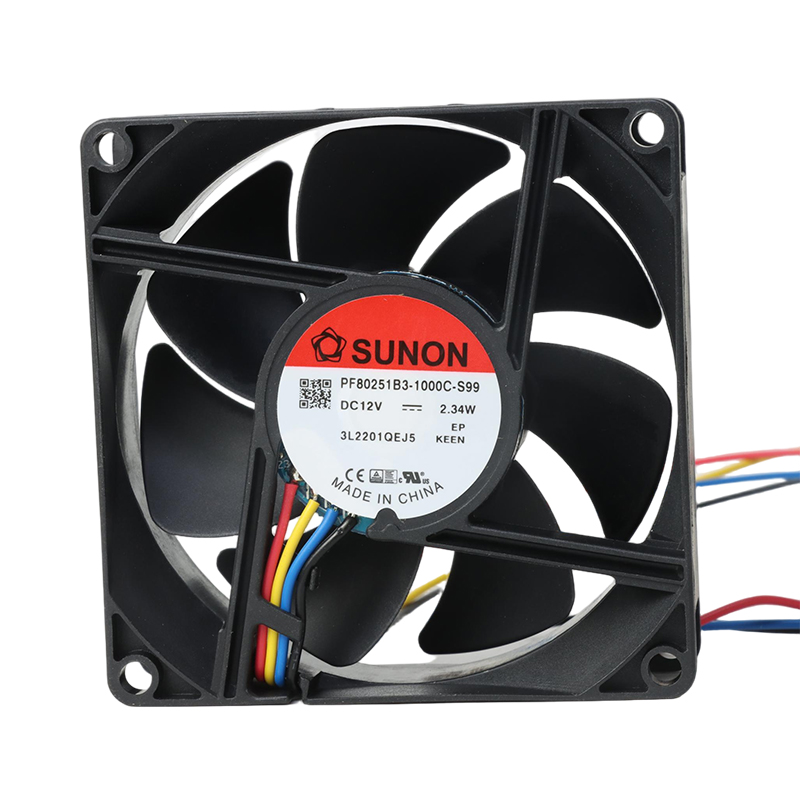

PF80251B3-1000U-S99 SUNON Axial Fan

Brand :: SUNON

Model:: PF80251B3-1000U-S99 | SUNON 12V 2.34W 80x80x25mm 90.1m3/h DC Axial Fan for Industrial Cooling

Type:: Axial Fans

Industry:: Industrial Cooling

Description:: Built around servers and data-center electronics, SUNON PF80251B3-1000U-S99 is a 12 VDC DC axial fan in a 80 × 80 × 25 mm frame. Up to 90.1 m³/h is its most prominent listed performance figure. Review its acoustic value during airflow-path design. Obtain the applicable curve before final duty-point approval.

Datasheet:: PF80251B3-1000U-S99 | SUNON 12V 2.34W 80x80x25mm 90.1m3/h DC Axial Fan for Industrial Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	12
Size(mm)	808025
Max.Air Flow(m³/h)	90.1
Input Power(W)	2.34
Speed(rpm)	4200
Noise(db)	42.5

Product Features

Reliable Fan Cooling

SUNON PF80251B3-1000U-S99 is a DC brushless axial fan for industrial equipment. It establishes forced airflow where passive cooling cannot adequately protect heat-producing assemblies.

With up to 90.1 m3/h listed airflow, the fan provides a measurable starting point for thermal design. Clear inlet space and a controlled outlet help preserve useful flow. The brushless DC motor architecture supports efficient electronic commutation and stable rotational performance for compact equipment cooling.

PF80251B3-1000U-S99 is best integrated with attention to grille resistance. Engineering teams can use power-budget review during prototype approval to verify thermal suitability and give buyers an auditable selection basis. Account for the pressure loss introduced by guards and protective screens.

Application Industry

Industrial Equipment

SUNON PF80251B3-1000U-S99 serves industrial machinery and electronic equipment. Airflow around controllers, drives and power devices helps address continuous internal heat. The fan gives OEM equipment a defined air route and supports stable equipment operation.

Frequently Asked Questions

What noise data are available for PF80251B3-1000U-S99?

The worksheet lists 42.5 dB. Installation distance, airflow resistance, and enclosure acoustics can change the measured result.

What should be checked if PF80251B3-1000U-S99 stops?

Verify supply, wiring, obstructions, impeller movement, and protection status. Use the model datasheet before replacement or repair.

What installation checks apply to PF80251B3-1000U-S99?

Keep the airflow path clear, secure the frame without distortion, and follow the exact wiring diagram and voltage rating.

What input power is listed for PF80251B3-1000U-S99?

The worksheet lists 2.34 W input. Check supply capacity and operating conditions before commissioning.

What equipment can use PF80251B3-1000U-S99?

It is listed for servers and data-center electronics. Check dimensions, airflow, pressure, and the installation environment against the actual equipment.
